LF Driver12NB series
Oberton
Oberton 12NB601
Oberton 12NB601 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 50Hz, Qts 0.30, Vas 38.7L, Xmax 8.8mm, sensitivity 94dB, plus 450cm³ Vd and 160 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
94.0dB
200.0dBmanufacturer; using T/S-derived value (106.0dB delta).
EBP
160
Vented alignment
Vd
450cm³
T/S Parameters
Valid
Fs50Hz
Qts0.30
Qes0.32
Qms10.0
Vas38.7L
Re5.5Ω
Le0.97mH
BL22.9Tm
Sd515cm²
Mms95g
Xmax8.8mm
SPL94dB
Power600W
Impedance8Ω
Min Impedance6.0Ω
F Low50Hz
F High3000Hz
Voice Coil100mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

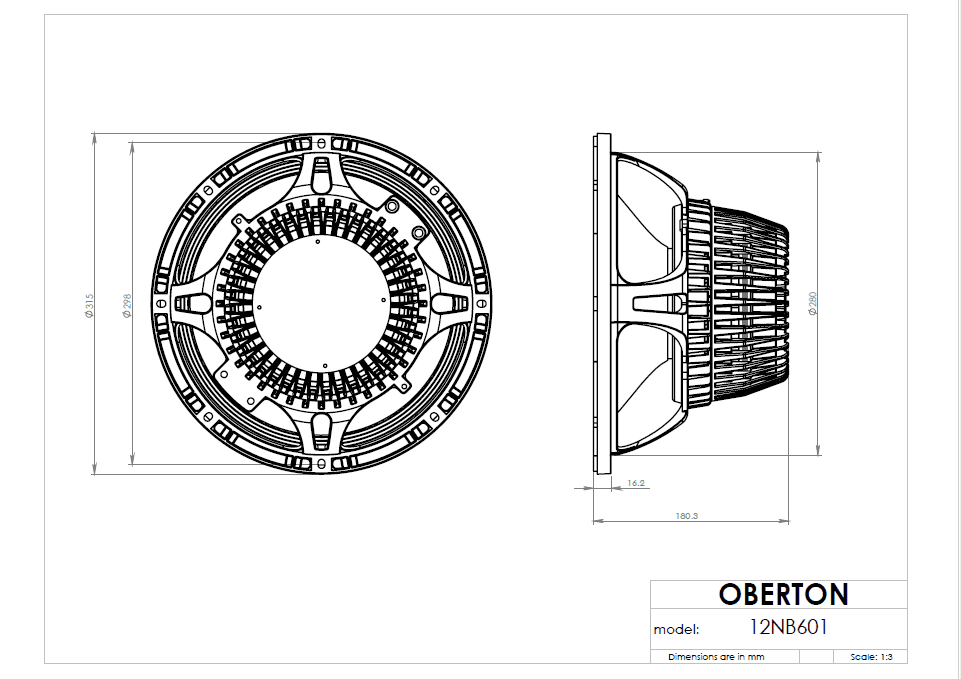

Dimensions & Physical
Weight7.8kg
Diameter315.0mm
Overall Depth180.3mm
Cutout Diameter280.0mm
Bolt Circle Diameter298.0mm
