12-inch LF driver · 100 mm voice coil · 1,000 W

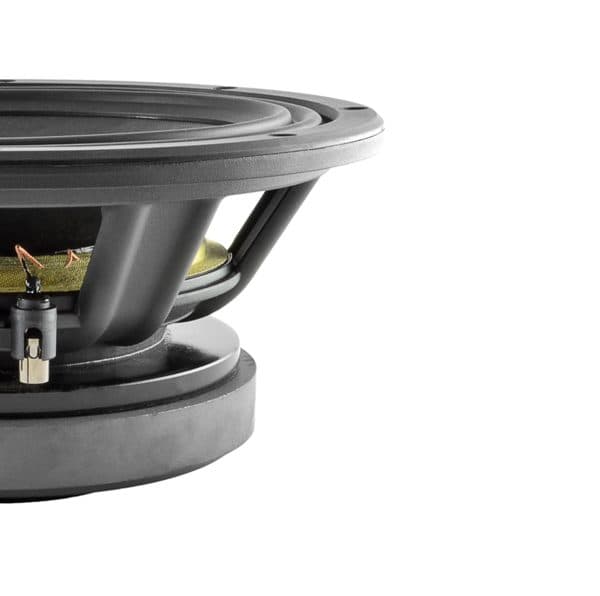

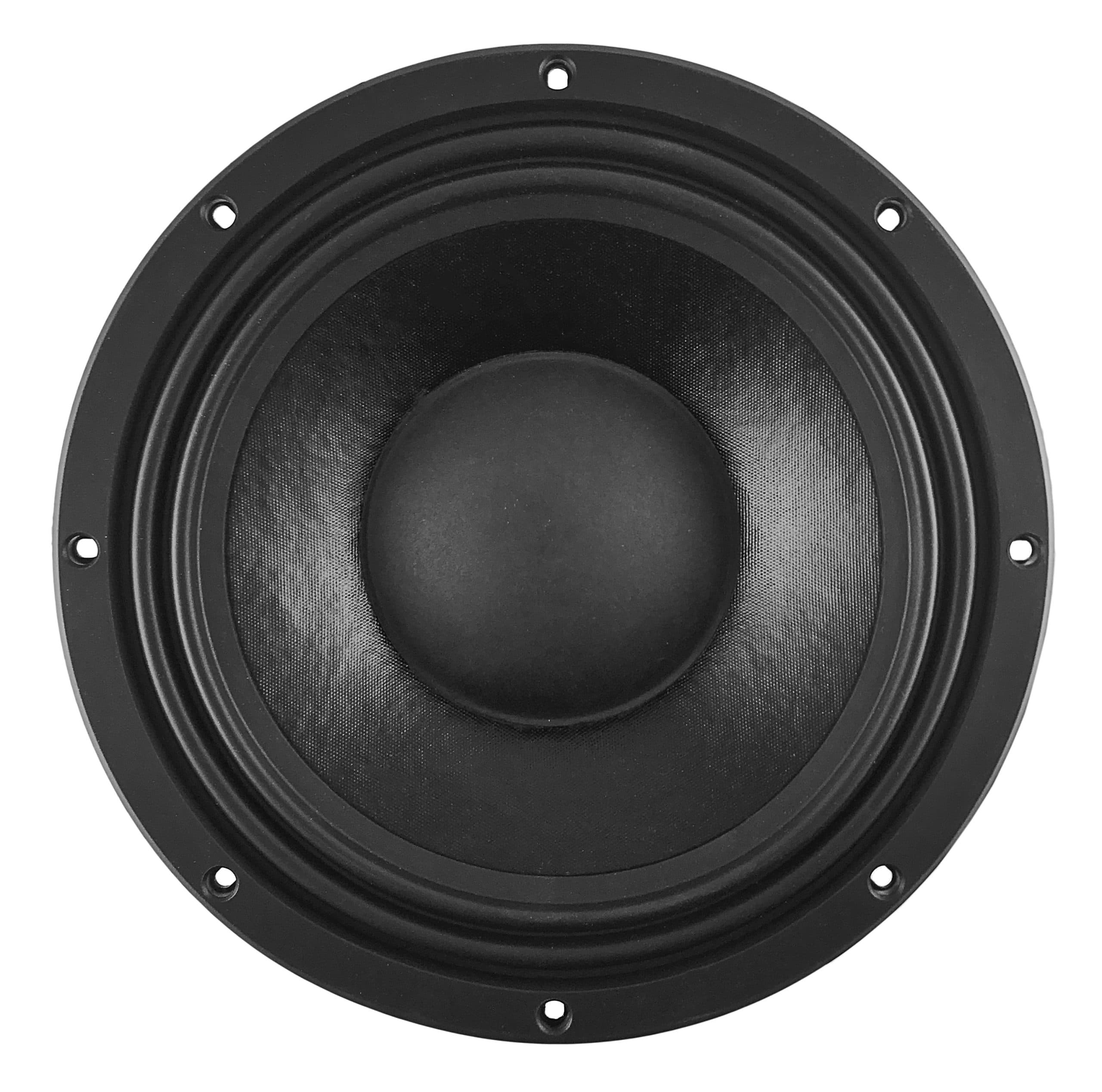

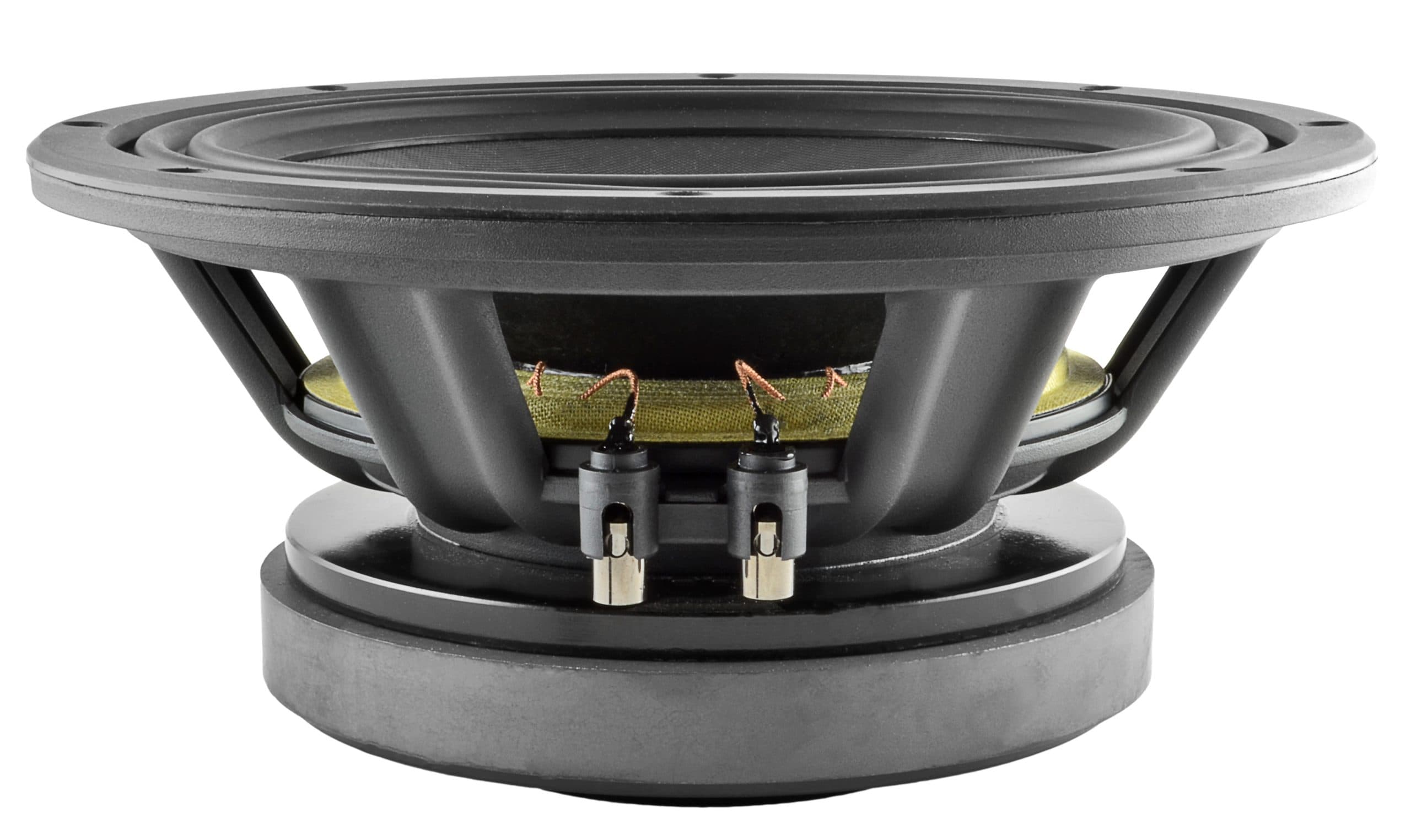

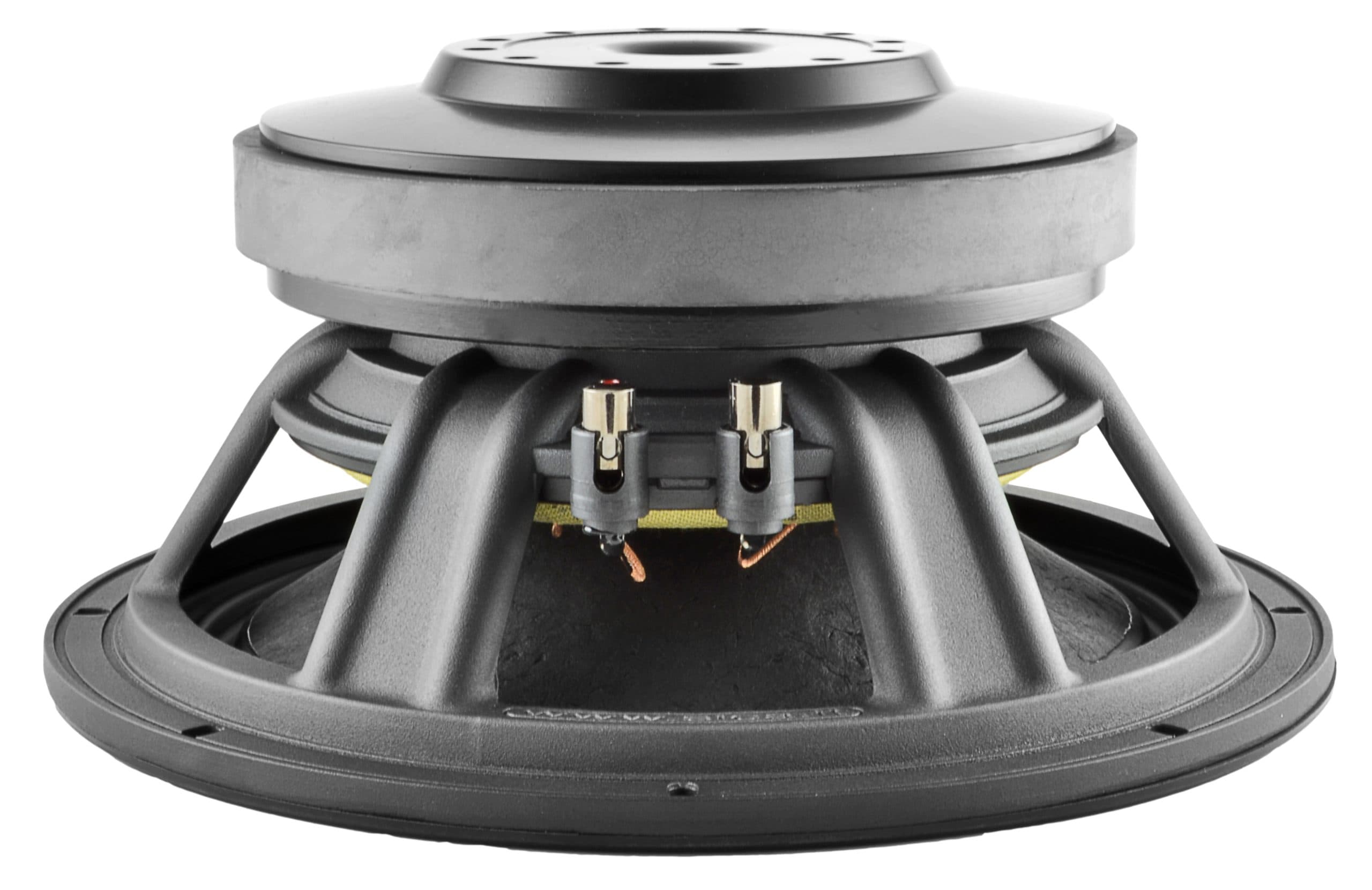

Sica 12 SR 4 CP 8Ω

Name: Sica 12 SR 4 CP 8 Ohm
Brand: Sica
SKU: 12 SR 4 CP

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 38Hz
Xmax: 9mm
SPL: 91dB
Pe: 1000W
BL: 24T·m
Vd: 442cm³
Qts: 0.30
Vas: 42L

See all 26 specs

Specifications

Published by Sica

Manufacturer page

Datasheet PDF

Sica 12 SR 4 CP is a 12-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.30, Vas 41.7 L, Xmax 9 mm, sensitivity 90.7 dB, plus 442 cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 38Hz
Qts: 0.30
Qes: 0.31
Qms: 4.8
Vas: 41.7L
Re: 5.2Ω
Le: 1.77mH

Motor and cone

BL: 24T·m
Sd: 491cm²
Mms: 145g
Xmax: 9mm
Vd †: 442cm³
Voice coil: 100mm
Flux density: 1.12T

Power and response

Sensitivity †: 90.7dB
Manufacturer sensitivity: 92.6dB
Power: 1000W
Impedance: 8Ω
EBP †: 123 · Leans vented

Size and mounting

Diameter: 320mm
Cutout: 284mm
Bolt circle: 300mm
Depth: 154.3mm
Weight: 12kg

Other published values

Cms: 0.12mm/N
Power Program: 2000

Sensitivity shows 90.7 dB, calculated from the T/S values. Sica publishes 92.6 dB, 1.9 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Sica lists

LF · Primary · 12″

BL: 24T·m
Fs: 38Hz
Le: 1.77mH
Re: 5.2Ω
Sd: 491cm²
Cms: 0.12mm/N
Mms: 145g
Qes: 0.31
Qms: 4.8
Qts: 0.30
SPL: 90.7dB
Vas: 41.7L
Xmax: 9mm
Power: 1000W
Impedance: 8Ω
Flux density: 1.12T
Sensitivity: 92.6dB
Power Program: 2000
Calculated sensitivity †: 90.7dB
Manufacturer sensitivity: 92.6dB
Voice coil: 100mm
Weight: 12kg
Diameter: 320mm
Depth: 154.3mm
Cutout: 284mm
Bolt circle: 300mm

Compare

Same-size drivers, compared with the 12 SR 4 CP. Clear differences are green when better and red when worse.

This driver12 SR 4 CP

Best price

–

38 Hz

Qts

0.30

Vas

41.7 L

24 T·m

Xmax

9 mm

Sensitivity

90.7 dB

Power

1000 W

CIAREPWA12.75

£122.50

Fs53 Hz +39%

Qts0.30 –

Vas52 L +25%

BL19.6 T·m −18%

Xmax5.8 mm −36%

Sensitivity95.9 dB +5.2

B&C12FW88

£163.69

Fs53 Hz +39%

Qts0.33 +10%

Vas45.7 L +10%

BL19.5 T·m −19%

Xmax8 mm −11%

Sensitivity94.9 dB +4.2

RCFMB12X351

£187.93

Fs55 Hz +45%

Qts0.26 −13%

Vas46 L +10%

BL22.5 T·m −6%

Xmax7 mm −22%

Sensitivity96.6 dB +5.9

PRV Audio12MR2000X

£188.83

Fs65 Hz +70%

Qts0.28 −7%

Vas39.6 L −5%

BL23.2 T·m −3%

Xmax6.6 mm −27%

Sensitivity97.9 dB +7.2

B&C12PS100

£189.25

Fs44 Hz +16%

Qts0.27 −10%

Vas47 L +13%

BL22.5 T·m −6%

Xmax8 mm −11%

Sensitivity93.4 dB +2.7

Eighteen Sound12LW800

£189.95

Fs52 Hz +37%

Qts0.29 −3%

Vas48 L +15%

BL21.3 T·m −11%

Xmax6.5 mm −28%

Sensitivity95.6 dB +4.9

FaitalPRO12HP1010

£191.59

Fs45 Hz +18%

Qts0.34 +13%

Vas56.5 L +35%

BL19.8 T·m −17%

Xmax9.3 mm –

Sensitivity93.7 dB +3

B&C12TBX100

£201.06

Fs42 Hz +11%

Qts0.26 −13%

Vas37.5 L −10%

BL25.5 T·m +6%

Xmax9 mm –

Sensitivity92.2 dB +1.5

Beyma12LEX1000FE

£202.67

Fs49 Hz +29%

Qts0.30 –

Vas38.4 L −8%

BL24.6 T·m –

Xmax11 mm +22%

Sensitivity93.5 dB +2.8

B&C12NDL88

£210.36

Fs51 Hz +34%

Qts0.27 −10%

Vas52 L +25%

BL19.9 T·m −17%

Xmax8 mm −11%

Sensitivity95.8 dB +5.1

PRV Audio12MR2000X-NDY

£211.49

Fs67 Hz +77%

Qts0.31 +3%

Vas35.9 L −14%

BL22.7 T·m −5%

Xmax6.1 mm −32%

Sensitivity97.3 dB +6.6

FaitalPRO12HP1020

£234.86

Fs55 Hz +45%

Qts0.27 −10%

Vas38.6 L −7%

BL24.3 T·m –

Xmax9 mm –

Sensitivity95.6 dB +4.9

B&C12BG100

£245.27

Fs39 Hz –

Qts0.33 +10%

Vas41 L –

BL23 T·m −4%

Xmax10.5 mm +17%

Sensitivity90.4 dB –

FaitalPRO12FX600

£247.20

Fs48 Hz +26%

Qts0.24 −20%

Vas44.4 L +6%

BL25.3 T·m +5%

Xmax9.9 mm +10%

Sensitivity95 dB +4.3

FaitalPRO12HP1030

£249.22

Fs45 Hz +18%

Qts0.30 –

Vas35.9 L −14%

BL24.3 T·m –

Xmax12.4 mm +38%

Sensitivity92.3 dB +1.6

FaitalPRO12HP1060

£260.09

Fs45 Hz +18%

Qts0.28 −7%

Vas36.9 L −12%

BL24.8 T·m +3%

Xmax12.4 mm +38%

Sensitivity92.7 dB +2

Eighteen Sound12LW1400

£260.72

Fs45 Hz +18%

Qts0.30 –

Vas55 L +32%

BL20 T·m −17%

Xmax8.3 mm −8%

Sensitivity94 dB +3.3

Eighteen Sound12NW350

£274.91

Fs54 Hz +42%

Qts0.34 +13%

Vas46 L +10%

BL19.2 T·m −20%

Xmax8.3 mm −8%

Sensitivity95.2 dB +4.5

Eighteen Sound12NTLW3500

£288.08

Fs53 Hz +39%

Qts0.33 +10%

Vas45 L +8%

BL19.5 T·m −19%

Xmax8.3 mm −8%

Sensitivity94.8 dB +4.1

Beyma12P1000ND

£305.27

Fs47 Hz +24%

Qts0.26 −13%

Vas49 L +18%

BL23.5 T·m –

Xmax8 mm −11%

Sensitivity94.8 dB +4.1

Sica12 PNS 4

£362.42

Fs42 Hz +10%

Qts0.31 +3%

Vas50.2 L +20%

BL22.3 T·m −7%

Xmax9.5 mm +6%

Sensitivity92.6 dB +1.9

Oberton12NB601

No current price

Fs50 Hz +33%

Qts0.30 –

Vas38.7 L −7%

BL22.9 T·m −5%

Xmax8.8 mm –

Sensitivity94 dB +3.3

Sica12 PFS 4

No current price

Fs39 Hz –

Qts0.26 −13%

Vas55.6 L +33%

BL23.9 T·m –

Xmax9 mm –

Sensitivity92.9 dB +2.2

CelestionTSQ1230

No current price

Fs55 Hz +45%

Qts0.30 –

Vas45.2 L +8%

BL20.5 T·m −15%

Xmax6.8 mm −25%

Sensitivity95.8 dB +5.1

Eighteen Sound12LW801

No current price

Fs54 Hz +42%

Qts0.33 +10%

Vas41 L –

BL20.3 T·m −15%

Xmax8 mm −11%

Sensitivity94.8 dB +4.1

P.Audio12NX-76MB

No current price

Fs55 Hz +45%

Qts0.31 +3%

Vas50.3 L +21%

BL21.4 T·m −11%

Xmax4.8 mm −47%

Sensitivity96.3 dB +5.6

No photo

PHL Audio4310NDU

No current price

Fs43 Hz +13%

Qts0.27 −10%

Vas56.7 L +36%

BL22 T·m −8%

Xmax10 mm +11%

Sensitivity94.1 dB +3.4

BMS12N804

No current price

Fs39 Hz –

Qts0.29 −3%

Vas71 L +70%

BL20.4 T·m −15%

Xmax8 mm −11%

Sensitivity93.4 dB +2.7

CelestionNTR12-3018D

No current price

Fs59 Hz +55%

Qts0.30 –

Vas50.4 L +21%

BL19.9 T·m −17%

Xmax4 mm −56%

Sensitivity97 dB +6.3

CelestionCF1230F

No current price

Fs57 Hz +49%

Qts0.32 +6%

Vas49.6 L +19%

BL18.3 T·m −24%

Xmax7.5 mm −17%

Sensitivity96.2 dB +5.5
