BMS 12N804 8Ω
8 Ω · 40–1700 Hz
No price for delivery to the UK
- Fs
- 39Hz
- Xmax
- 8mm
- SPL
- 93dB
- Pe
- 1100W
- BL
- 20.4T·m
- Vd
- 425cm³
- Qts
- 0.29
- Vas
- 71L
BMS 12N804 is a 12-inch 8 ohm LF driver rated at 1100 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.29, Vas 71 L, Xmax 8 mm, sensitivity 93.4 dB, plus 425 cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.29
- Qes
- 0.31
- Qms
- 4.6
- Vas
- 71L
- Re
- 5.7Ω
- Le
- 0.66mH
Motor and cone
- BL
- 20.4T·m
- Sd
- 531cm²
- Mms
- 92g
- Xmax
- 8mm
- Vd †
- 425cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 93.4dB
- Manufacturer sensitivity
- 95dB
- Power
- 1100W
- Impedance
- 8Ω
- Range
- 40–1700Hz
- EBP †
- 126 · Leans vented

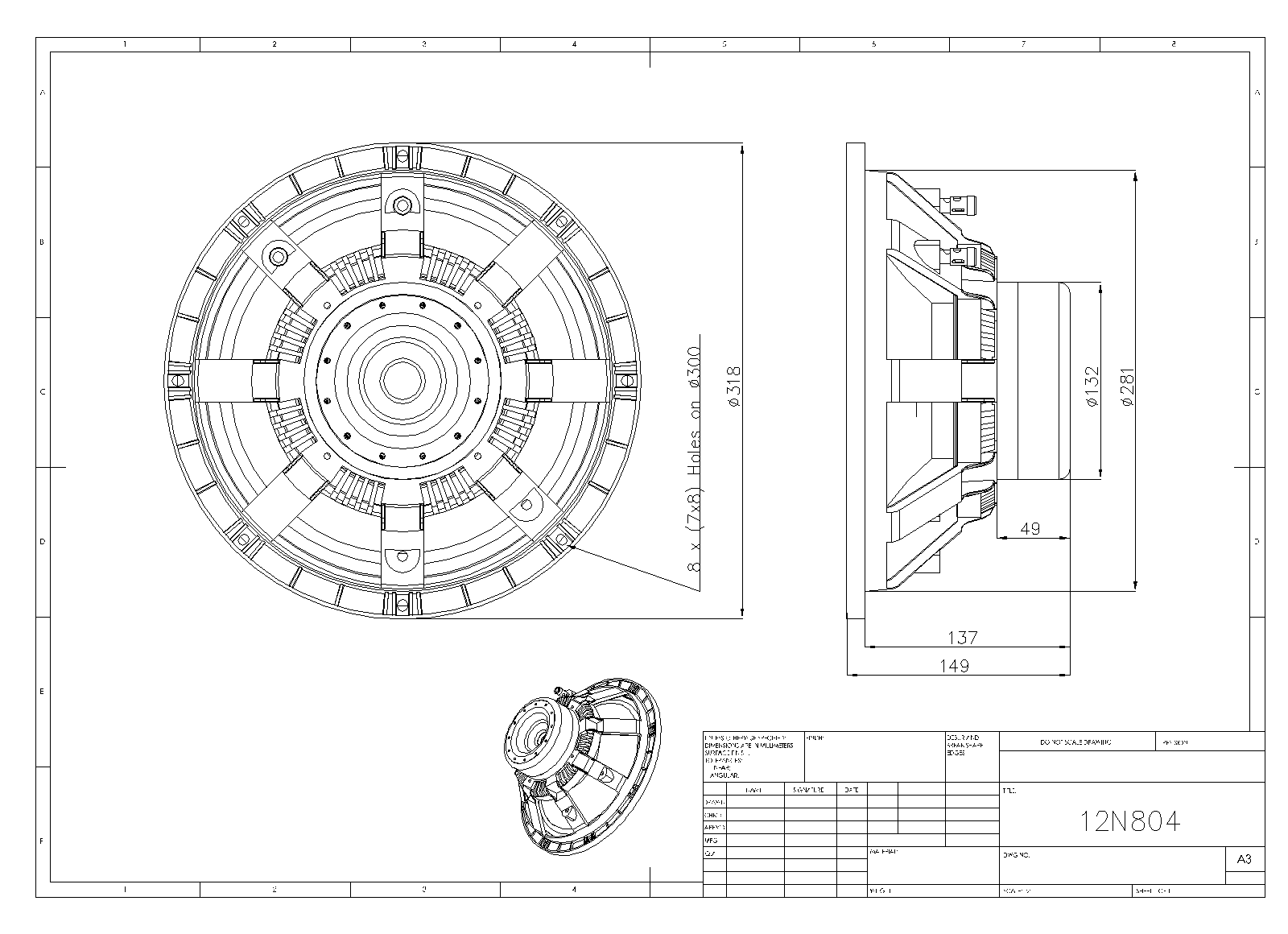

Size and mounting
- Diameter
- 318mm
- Cutout
- 283mm
- Bolt circle
- 300mm
- Depth
- 151mm
- Weight
- 5.1kg
Other published values
- Cms
- 0.18mm/N
Sensitivity shows 93.4 dB, calculated from the T/S values. BMS publishes 95.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 20.4T·m
- Fs
- 39Hz
- Le
- 0.66mH
- Re
- 5.7Ω
- Sd
- 531cm²
- Cms
- 0.18mm/N
- Mms
- 92g
- Qes
- 0.31
- Qms
- 4.6
- Qts
- 0.29
- SPL
- 93.4dB
- Vas
- 71L
- Xmax
- 8mm
- Power
- 1100W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 40Hz
- Calculated sensitivity †
- 93.4dB
- High limit
- 1700Hz
- Manufacturer sensitivity
- 95dB
- Voice coil
- 102mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 20.4 Tesla m
- 1. application
- Subwoofer
- 18. moving mass
- Mms 0.092 kg
- 13. dc resistance
- Re 5.7 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 71 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 40 – 1700 Hz
- 6. voice coil diameter
- 101.6 (4″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 39 Hz
- 14. mechanical q factor
- Qms 4.6
- 15. electrical q factor
- Qes 0.31
- 16. total quality factor
- Qts 0.29
- 19. mechanical complience
- Cms 0.18 mm / N
- 21. effective piston area
- Sd 0.0531 m²
- 22. max. linear excursion
- Xmax +/- 8 mm
- 23. voice coil inductance
- Le1k 0.66 mH
- 4. sensitivity (1 w / 1 m)
- 95 dB
- 3. power handling aes noise
- 1100 W
- 8. voice coil winding depth
- 26 mm
- 11. effect. diaphragm diameter d
- 260 mm
