12-inch LF driver · 77 mm voice coil · 500 W

PHL Audio 4031 8Ω

Name: PHL Audio 4031 8 Ohm
Brand: PHL Audio
SKU: 4031

8 Ω · 40–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 44Hz
Xmax: 7.5mm
SPL: 95dB
Pe: 500W
BL: 20.5T·m
Vd: 404cm³
Qts: 0.27
Vas: 70L

See all 27 specs

Specifications

Published by PHL Audio

Manufacturer page

Datasheet PDF

PHL Audio 4031 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.27, Vas 70 L, Xmax 7.5 mm, sensitivity 95.2 dB, plus 404 cm³ Vd and 152 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 44Hz
Qts: 0.27
Qes: 0.29
Qms: 5.4
Vas: 70L
Re: 5.6Ω
Le: 1.24mH

Motor and cone

BL: 20.5T·m
Sd: 539cm²
Mms: 78g
Xmax: 7.5mm
Vd †: 404cm³
Voice coil: 77mm

Power and response

Sensitivity †: 95.2dB
Manufacturer sensitivity: 95dB
Power: 500W
Nominal power: 500W
Impedance: 8Ω
Range: 40–2000Hz
EBP †: 152 · Leans vented

Size and mounting

Diameter: 326.5mm
Cutout: 282mm
Depth: 128.5mm
Weight: 8.9kg

Other published values

Cms: 0.17mm/N
Xmech: 14

Other dimensions

Mounting Depth: 128.5

† Calculated by bits from the published values

What this validation status means

Everything else PHL Audio lists

LF · Primary · 12″

BL: 20.5T·m
Fs: 44Hz
Le: 1.24mH
Re: 5.6Ω
Sd: 539cm²
Cms: 0.17mm/N
Mms: 78g
Qes: 0.29
Qms: 5.4
Qts: 0.27
SPL: 95.2dB
Vas: 70L
Xmax: 7.5mm
Xmech: 14
Power: 500W
Impedance: 8Ω
Sensitivity: 95dB
Low limit: 40Hz
Nominal power: 500W
Calculated sensitivity †: 95.2dB
High limit: 2000Hz
Manufacturer sensitivity: 95dB
Voice coil: 77mm
Weight: 8.9kg
Diameter: 326.5mm
Depth: 128.5mm
Mounting Depth: 128.5
Cutout: 282mm

Compare

Same-size drivers, compared with the 4031. Clear differences are green when better and red when worse.

No photo

This driver4031

Best price

–

44 Hz

Qts

0.27

Vas

70 L

20.5 T·m

Xmax

7.5 mm

Sensitivity

95.2 dB

Power

500 W

SB AudienceROSSO-12MW300

£106.55

Fs48 Hz +9%

Qts0.27 –

Vas85.9 L +23%

BL17.4 T·m −15%

Xmax6.7 mm −11%

Sensitivity97.3 dB +2.1

Beyma12WR400

£142.14

Fs42 Hz −5%

Qts0.27 –

Vas91 L +30%

BL18 T·m −12%

Xmax6.3 mm −16%

Sensitivity95.8 dB +0.6

RCFMB12G301

£142.33

Fs53 Hz +20%

Qts0.27 –

Vas72 L –

BL17 T·m −17%

Xmax6 mm −20%

Sensitivity97.9 dB +2.7

Beyma12G40

£153.44

Fs44 Hz –

Qts0.30 +11%

Vas81 L +16%

BL18.4 T·m −10%

Xmax7 mm −7%

Sensitivity95.6 dB –

FaitalPRO12FH510

£163.54

Fs45 Hz –

Qts0.24 −11%

Vas81.3 L +16%

BL18.9 T·m −8%

Xmax7.5 mm –

Sensitivity96.7 dB +1.5

Eighteen Sound12W750

£166.32

Fs49 Hz +11%

Qts0.28 +4%

Vas73 L +4%

BL18 T·m −12%

Xmax8 mm +7%

Sensitivity96.6 dB +1.4

B&C12NDL76

£169.00

Fs50 Hz +14%

Qts0.27 –

Vas69 L –

BL24.7 T·m +20%

Xmax7 mm −7%

Sensitivity96.6 dB +1.4

Beyma12MCB700

£174.16

Fs51 Hz +16%

Qts0.27 –

Vas59.5 L −15%

BL20.4 T·m –

Xmax7 mm −7%

Sensitivity96.4 dB +1.2

FaitalPRO12FH530

£174.68

Fs45 Hz –

Qts0.26 −4%

Vas74.1 L +6%

BL18.9 T·m −8%

Xmax7.5 mm –

Sensitivity96 dB +0.8

FaitalPRO12FH500

£180.28

Fs45 Hz –

Qts0.25 −7%

Vas87.3 L +25%

BL17.5 T·m −15%

Xmax7.5 mm –

Sensitivity96.9 dB +1.7

RCFMB12X351

£187.93

Fs55 Hz +25%

Qts0.26 −4%

Vas46 L −34%

BL22.5 T·m +10%

Xmax7 mm −7%

Sensitivity96.6 dB +1.4

Eighteen Sound12LW800

£189.95

Fs52 Hz +18%

Qts0.29 +7%

Vas48 L −31%

BL21.3 T·m +4%

Xmax6.5 mm −13%

Sensitivity95.6 dB –

B&C12PS100

£191.00

Fs44 Hz –

Qts0.27 –

Vas47 L −33%

BL22.5 T·m +10%

Xmax8 mm +7%

Sensitivity93.4 dB −1.8

FaitalPRO12FH520

£197.50

Fs50 Hz +14%

Qts0.29 +7%

Vas73.7 L +5%

BL17.3 T·m −16%

Xmax7.3 mm −3%

Sensitivity96.9 dB +1.7

Beyma12MC700ND

£208.90

Fs51 Hz +16%

Qts0.24 −11%

Vas58 L −17%

BL21.6 T·m +5%

Xmax7 mm −7%

Sensitivity96.7 dB +1.5

B&C12NDL88

£215.00

Fs51 Hz +16%

Qts0.27 –

Vas52 L −26%

BL19.9 T·m –

Xmax8 mm +7%

Sensitivity95.8 dB +0.6

Eighteen Sound12ND830

£239.87

Fs55 Hz +25%

Qts0.28 +4%

Vas72 L –

BL17.6 T·m −14%

Xmax6.5 mm −13%

Sensitivity98 dB +2.8

Eighteen Sound12LW1400

£260.72

Fs45 Hz –

Qts0.30 +11%

Vas55 L −21%

BL20 T·m –

Xmax8.3 mm +10%

Sensitivity94 dB −1.2

Beyma12P1000ND

£317.70

Fs47 Hz +7%

Qts0.26 −4%

Vas49 L −30%

BL23.5 T·m +15%

Xmax8 mm +7%

Sensitivity94.8 dB –

Sica12 S 4 PL

£333.47

Fs40 Hz −8%

Qts0.25 −7%

Vas57 L −19%

BL23.5 T·m +15%

Xmax7.5 mm –

Sensitivity93.6 dB −1.6

Eighteen Sound12NCX910

£436.54

Fs57 Hz +30%

Qts0.30 +11%

Vas58 L −17%

BL18.1 T·m −12%

Xmax6.9 mm −8%

Sensitivity97.4 dB +2.2

Eighteen Sound12NCX910N

£478.98

Fs57 Hz +30%

Qts0.30 +11%

Vas58 L −17%

BL18.1 T·m −12%

Xmax6.9 mm −8%

Sensitivity97.4 dB +2.2

No photo

PHL Audio4031NDU

No current price

Fs44 Hz –

Qts0.27 –

Vas70 L –

BL20.5 T·m –

Xmax7.5 mm –

Sensitivity95.2 dB –

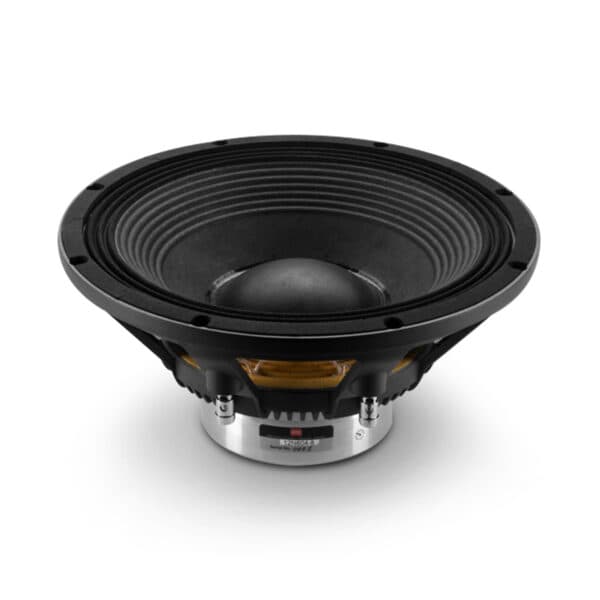

BMS12N804
