Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverROSSO series
SB Audience
SB Audience ROSSO-12MW300
SB Audience ROSSO-12MW300 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 48Hz, Qts 0.27, Vas 85.9L, Xmax 6.7mm, sensitivity 97.3dB, plus 363cm³ Vd and 171 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £106.55.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
97.3dB
EBP
171
Vented alignment
Vd
363cm³
T/S Parameters
Valid
Fs48Hz
Qts0.27
Qes0.28
Qms12.1
Vas85.9L
Re5.2Ω
Le0.73mH
BL17.4Tm
Sd543cm²
Mms54g
Xmax6.7mm
SPL97dB
Power300W
Impedance8Ω
Min Impedance5.2Ω
F Low48Hz
F High5160Hz
Voice Coil76mm
Flux Density1.22T
Pricing & availability
Price definitionsPrice movement
Best current price
£106.55
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

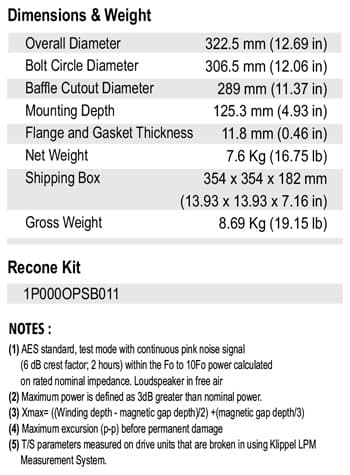

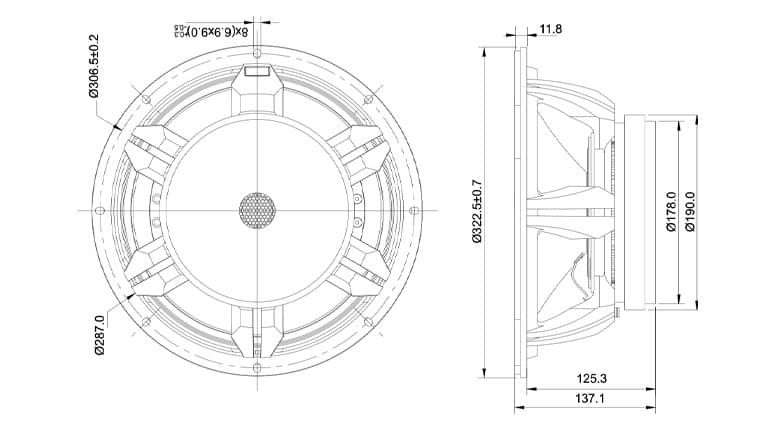

Dimensions & Physical
Weight7.6kg
Diameter322.5mm
Cutout Diameter289.0mm
Bolt Circle Diameter306.5mm
