12-inch LF driver · 12MB series · 88 mm voice coil · 700 W
Oberton 12MB35 8Ω
8 Ω · 50–2500 Hz
No price for delivery to the UK
- Fs
- 51Hz
- Xmax
- 6.8mm
- SPL
- 96dB
- Pe
- 700W
- BL
- 20.5T·m
- Vd
- 347cm³
- Qts
- 0.27
- Vas
- 50L

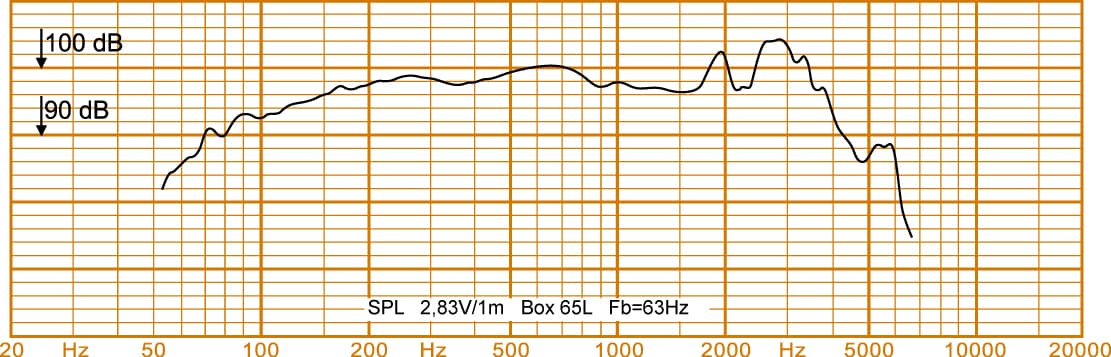

Published graphs
Oberton 12MB35 is a 12-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 51 Hz, Qts 0.27, Vas 50.1 L, Xmax 6.8 mm, sensitivity 96 dB, plus 347 cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 51Hz
- Qts
- 0.27
- Qes
- 0.27
- Qms
- 13.6
- Vas
- 50.1L
- Re
- 5Ω
- Le
- 0.68mH
Motor and cone
- BL
- 20.5T·m
- Sd
- 515cm²
- Mms
- 71g
- Xmax
- 6.8mm
- Vd †
- 347cm³
- Voice coil
- 88mm
- Flux density
- 1.18T
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 200dB
- Power
- 700W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 50–2500Hz
- EBP †
- 189 · Leans vented

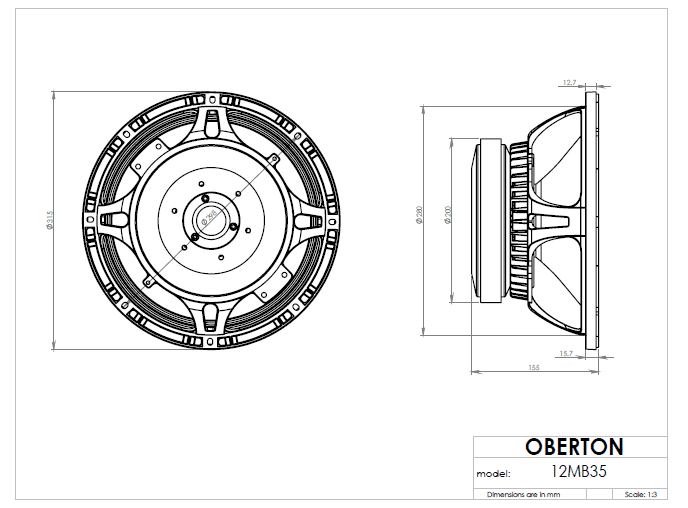

Size and mounting
- Diameter
- 315mm
- Cutout
- 280mm
- Bolt circle
- 298mm
- Depth
- 155mm
- Weight
- 8.5kg
Other published values
- Cms
- 0.14mm/N
- Power Program
- 1400
Sensitivity shows 96.0 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 104.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 20.5T·m
- Fs
- 51Hz
- Le
- 0.68mH
- Re
- 5Ω
- Sd
- 515cm²
- Cms
- 0.14mm/N
- Mms
- 71g
- Qes
- 0.27
- Qms
- 13.6
- Qts
- 0.27
- SPL
- 96dB
- Vas
- 50.1L
- Xmax
- 6.8mm
- Power
- 700W
- Impedance
- 8Ω
- Flux density
- 1.18T
- Sensitivity
- 200dB
- Low limit
- 50Hz
- Power Program
- 1400
- Calculated sensitivity †
- 96dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.2Ω
- Voice coil
- 88mm
- Weight
- 8.5kg
- Diameter
- 315mm
- Depth
- 155mm
- Cutout
- 280mm
- Bolt circle
- 298mm
