Overview
LF DriverNBASS12 series
Lavoce

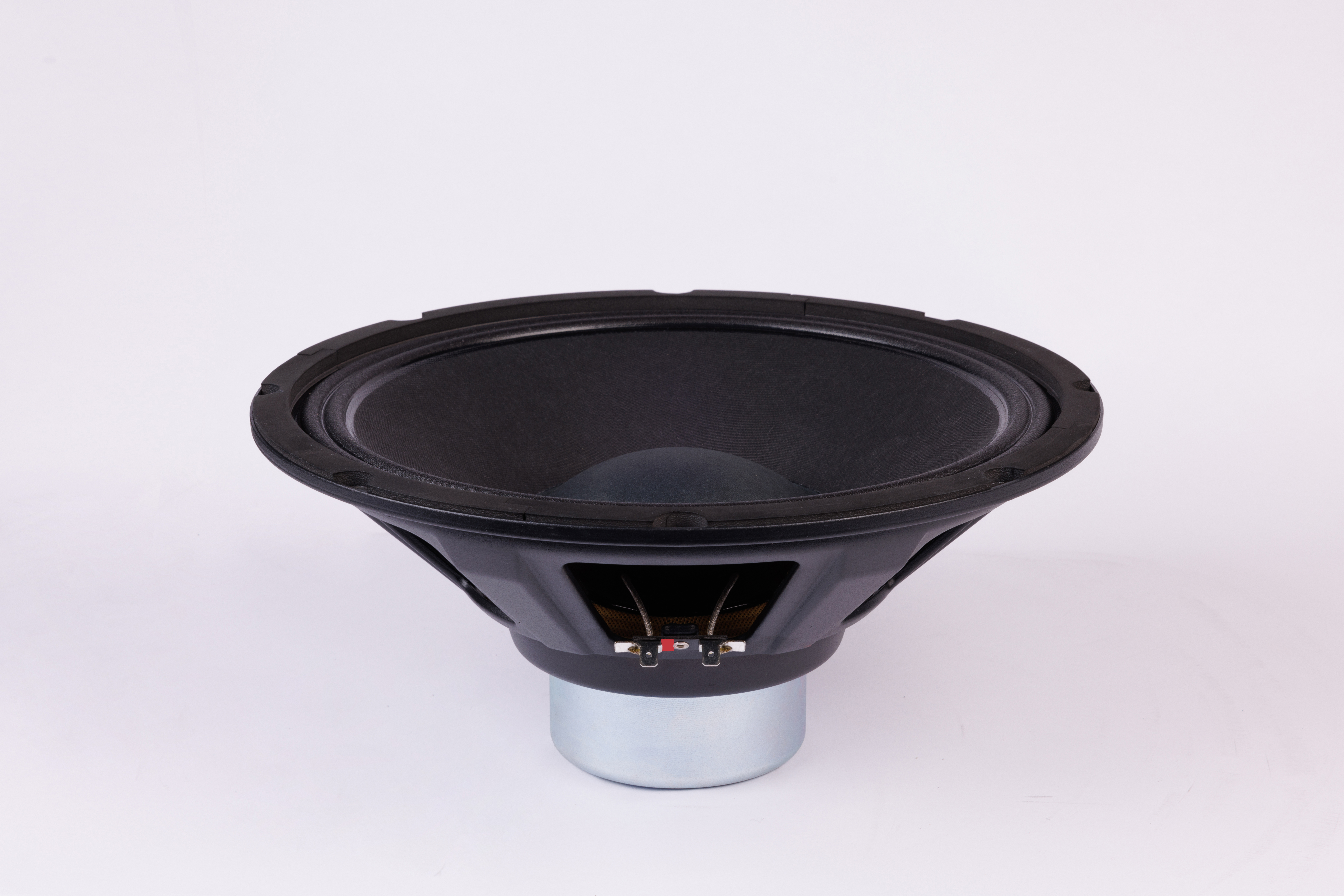

Lavoce NBASS12-30
Lavoce NBASS12-30 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 46Hz, Qts 0.26, Vas 68.6L, Xmax 6.6mm, sensitivity 96dB, plus 350cm³ Vd and 170 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.0dB
97.5dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
170
Vented alignment
Vd
350cm³
T/S Parameters
Valid
Fs46Hz
Qts0.26
Qes0.27
Qms5.6
Vas68.6L
Re5.2Ω
Le1.00mH
BL19.5Tm
Sd531cm²
Mms70g
Xmax6.6mm
SPL96dB
Power400W
Impedance8Ω
Min Impedance6.0Ω
F Low50Hz
F High3000Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.9kg
