Overview
LF Driver12H series
Oberton
Oberton 12H4CX72
Oberton 12H4CX72 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 50Hz, Qts 0.25, Vas 74.7L, Xmax 4.5mm, sensitivity 97.6dB, plus 232cm³ Vd and 193 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.6dB
EBP
193
Vented alignment
Vd
232cm³
T/S Parameters
Valid
Fs50Hz
Qts0.25
Qes0.26
Qms10.3
Vas74.7L
Re6.5Ω
Le0.45mH
BL19.9Tm
Sd515cm²
Mms50g
Xmax4.5mm
SPL98dB
Power400W
Impedance8Ω
F Low60Hz
F High18000Hz
Voice Coil100mm
Flux Density1.37T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

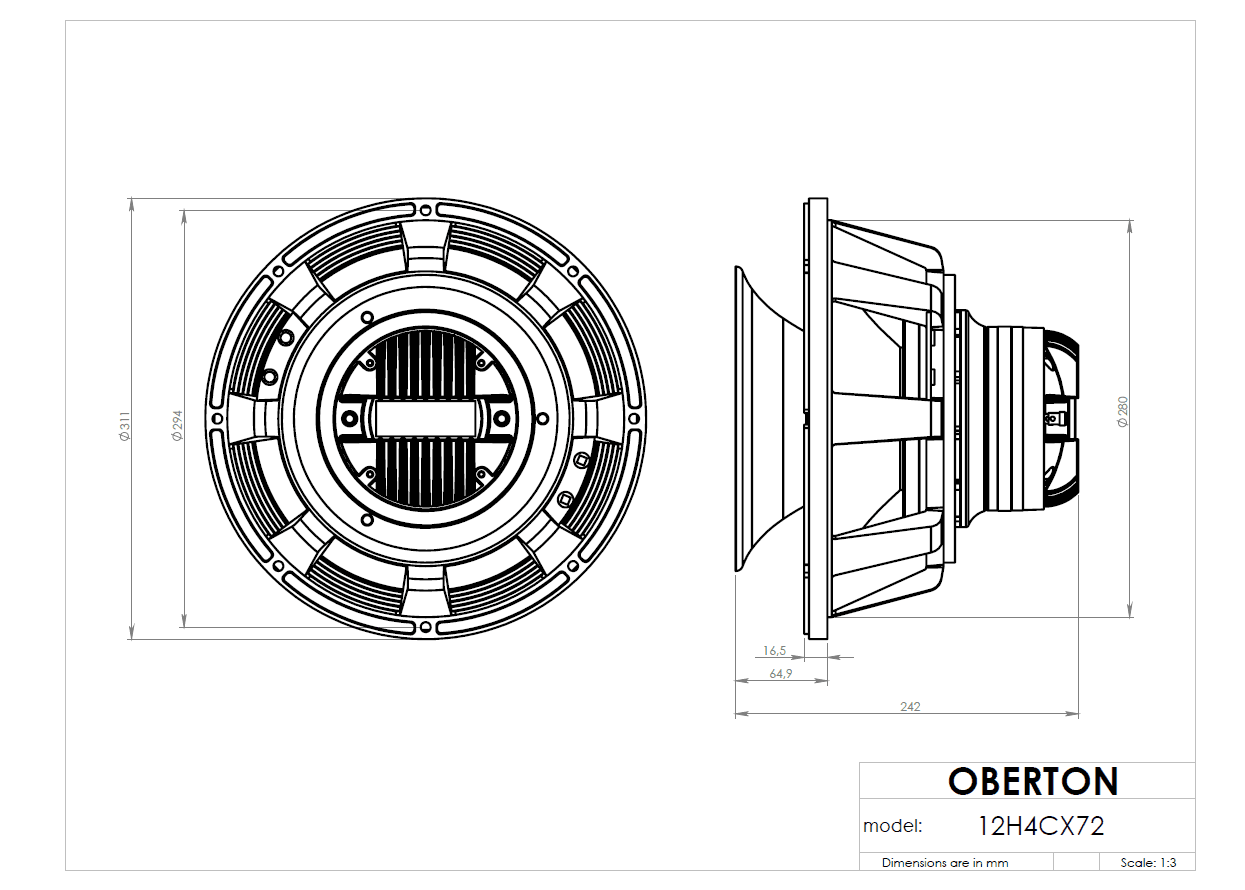

Dimensions & Physical
Weight10.1kg
Diameter311.0mm
Overall Depth242.0mm
Cutout Diameter280.0mm
Bolt Circle Diameter294.0mm
