Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence KAPPA PRO-12A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverKappa Pro series
Eminence

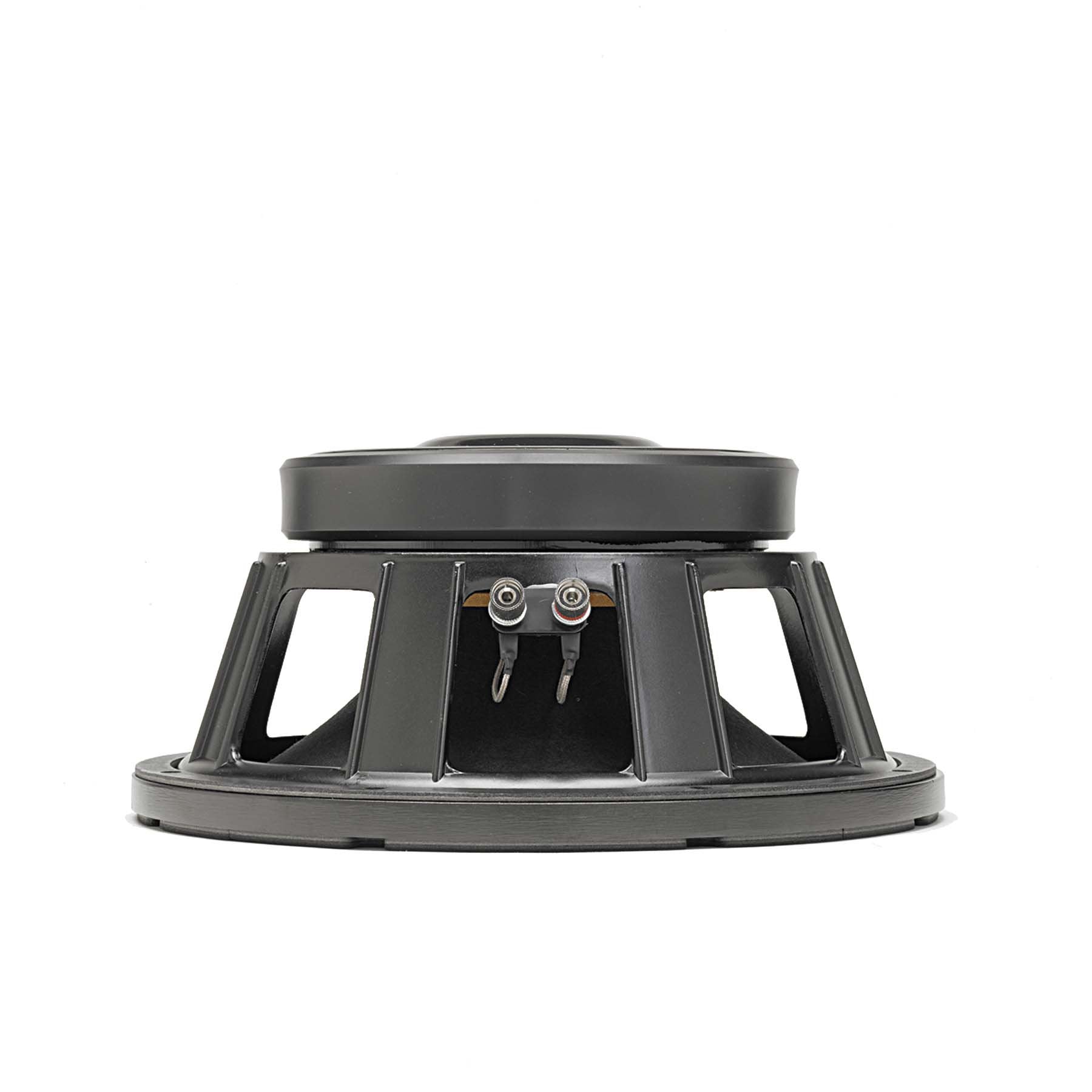

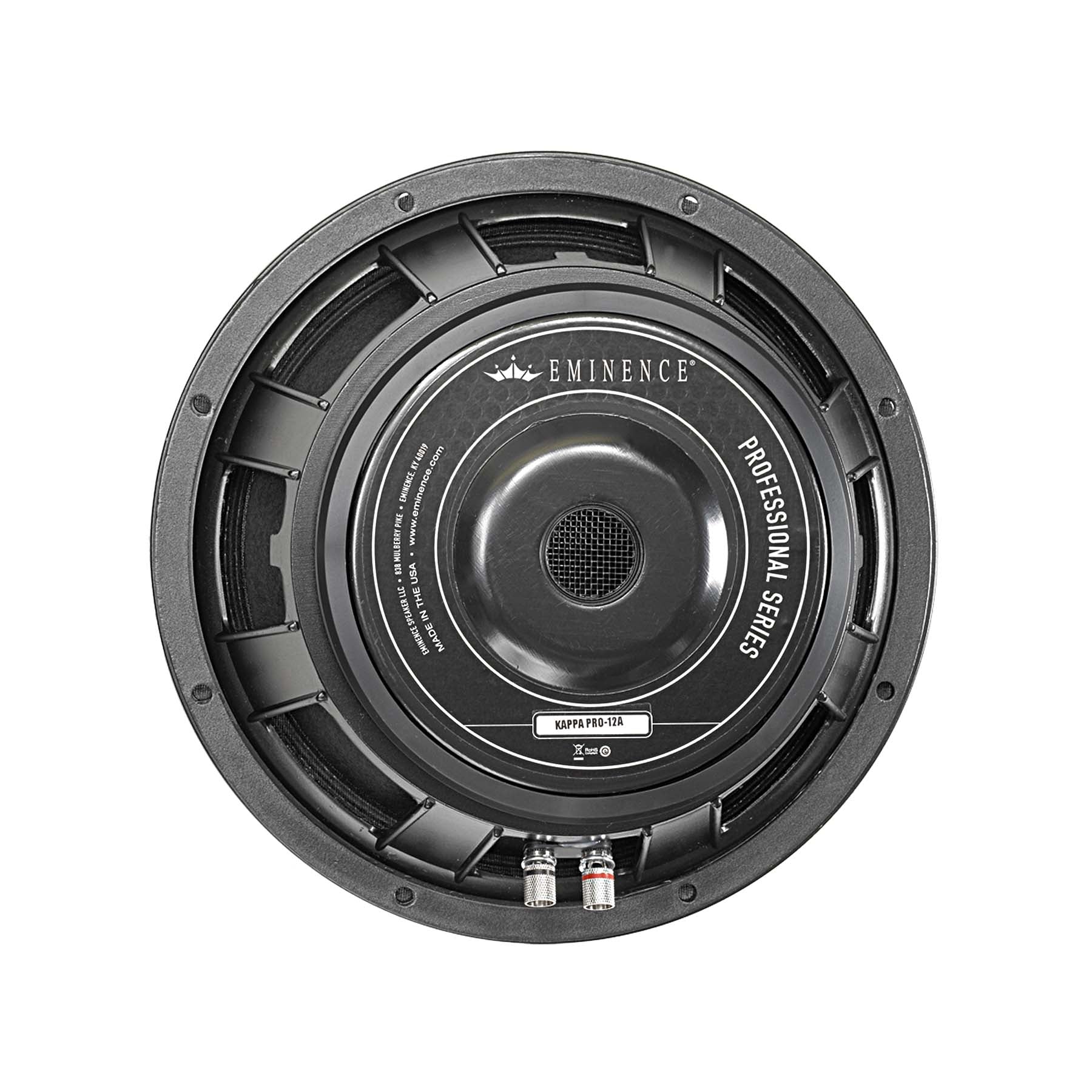

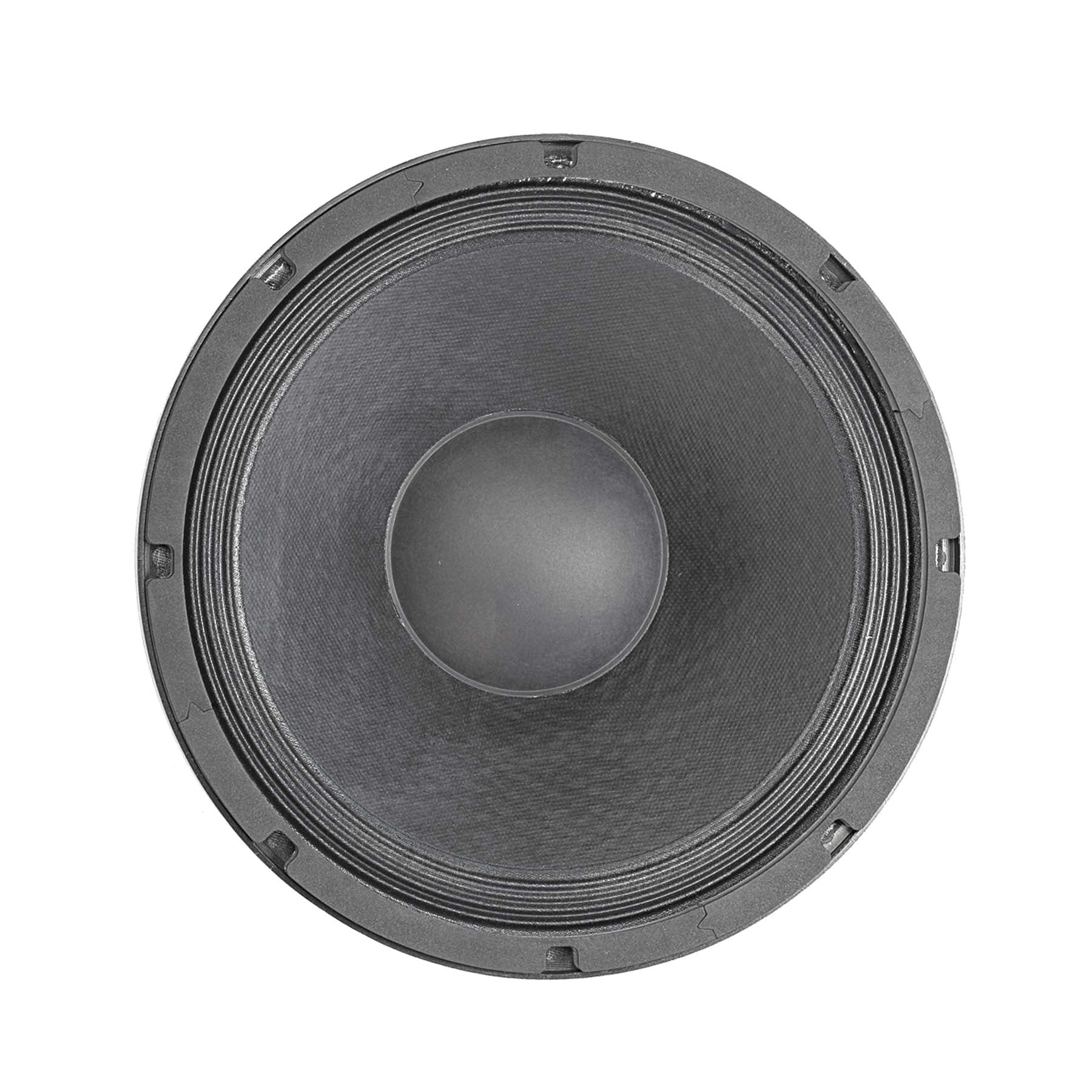

Eminence KAPPA PRO-12A
Eminence KAPPA PRO-12A is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 37Hz, Qts 0.24, Vas 121L, Xmax 4.8mm, sensitivity 95.9dB, plus 249cm³ Vd and 148 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
95.9dB
97.1dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
148
Vented alignment
Vd
249cm³
T/S Parameters
Valid
Fs37Hz
Qts0.24
Qes0.25
Qms6.9
Vas121.0L
Re5.5Ω
Le1.22mH
BL17.3Tm
Sd520cm²
Mms59g
Xmax4.8mm
SPL96dB
Power500W
Impedance8Ω
F Low57Hz
F High2000Hz
Pricing & availability
Price definitionsUse this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.5kg
Diameter314.5mm
Overall Depth158.0mm
Cutout Diameter281.2mm
Bolt Circle Diameter296.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
KAPPA PRO-12A
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
£151.02
B&C
12PLB76
12"
Xmax5mm+4%
Qts0.23-4%
BL18.6Tm+8%
Vas75L-38%
Qes0.24-4%
78%
Similarity
£140.76
Oberton
12B400
12"
Xmax5.3mm+9%
Qts0.25+4%
BL18.4Tm+6%
Vas74.7L-38%
Qes0.26+2%
75%
Similarity
£153.26
Eighteen Sound
12MB650
12"
Xmax5.5mm+15%
Qts0.23-4%
BL19Tm+10%
Vas90L-26%
Qes0.24-4%
74%
Similarity
Acoustic Elegance
TD12M-8
12"
Xmax6mm+25%
Qts0.25+4%
BL17Tm-2%
Vas140L+16%
Qes0.27+8%
74%
Similarity
Oberton
12H4CX72
12"
Xmax4.5mm-6%
Qts0.25+5%
BL19.9Tm+15%
Vas74.7L-38%
Qes0.26+4%
73%
Similarity
BMS
12S302
12"
Xmax4.5mm-6%
Qts0.25+5%
BL15.7Tm-10%
Vas65L-46%
Qes0.27+7%
70%
Similarity
£271.01
BMS
12N802
12"
Xmax4.5mm-6%
Qts0.240%
BL22.3Tm+29%
Vas65L-46%
Qes0.250%
70%
Similarity
£248.59
Eighteen Sound
12ND710
12"
Xmax5mm+4%
Qts0.2-17%
BL18Tm+4%
Vas92L-24%
Qes0.2-20%
68%
Similarity
£181.89
Eighteen Sound
12MB700
12"
Xmax4.5mm-6%
Qts0.19-21%
BL17.8Tm+3%
Vas101L-17%
Qes0.2-20%
68%
Similarity
Eighteen Sound
12MB777
12"
Xmax4.5mm-6%
Qts0.19-21%
BL17.8Tm+3%
Vas101L-17%
Qes0.2-20%
68%
Similarity
£337.46
Beyma
12CXA400FE
12"
Xmax6mm+25%
Qts0.25+4%
BL19.8Tm+14%
Vas94L-22%
Qes0.26+4%
68%
Similarity
£170.65
RCF
MB12N301
12"
Xmax6mm+25%
Qts0.240%
BL19Tm+10%
Vas71L-41%
Qes0.26+4%
