Overview
LF Driver
Eighteen Sound
Eighteen Sound 12MB777
Eighteen Sound 12MB777 is a 12" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 49Hz, Qts 0.19, Vas 101L, Xmax 4.5mm, sensitivity 99.8dB, plus 239cm³ Vd and 245 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
450W
Sensitivity
99.8dB
101.5dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
245
Vented alignment
Vd
239cm³
Datasheet traces

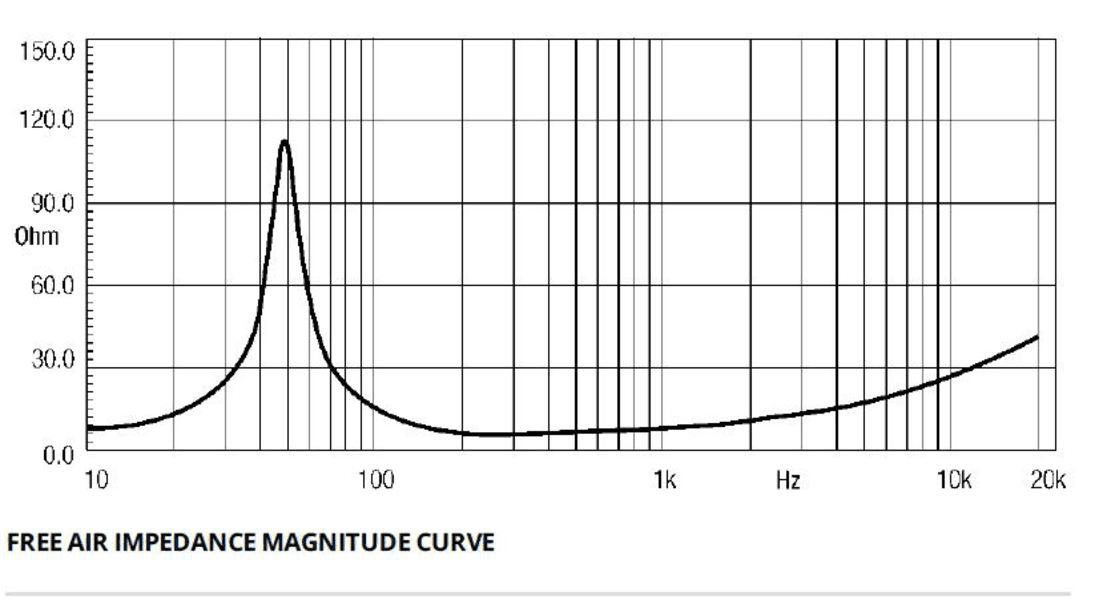

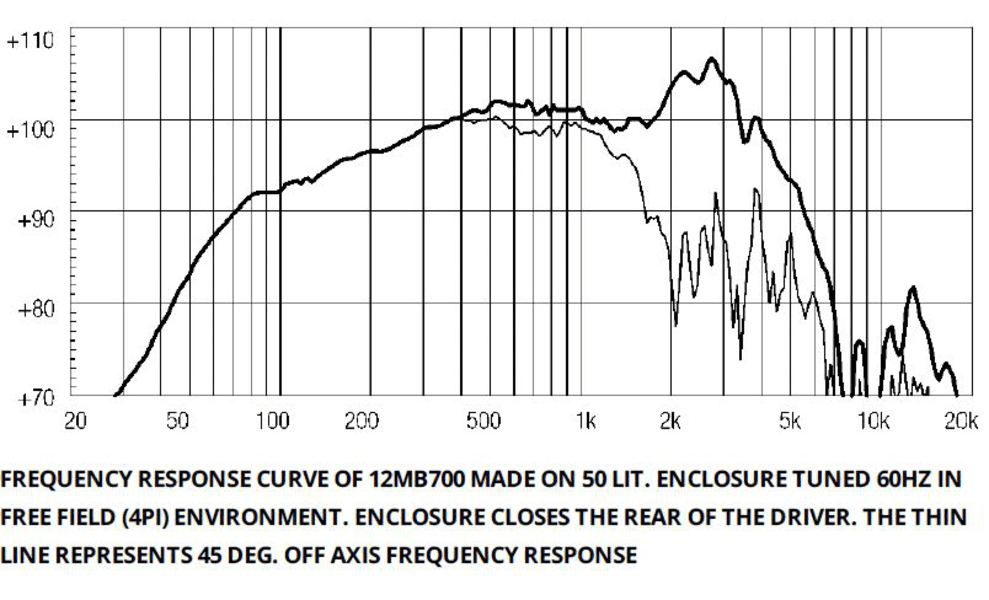

Frequency and impedance curves traced from the manufacturer PDF.
frequency response239 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
239 plotted pointsMedium confidence1,701 selected pixels of 5,919
T/S Parameters
Valid
Fs49Hz
Qts0.19
Qes0.20
Qms4.7
Vas101.0L
Re5.0Ω
Le0.90mH
BL17.8Tm
Sd531cm²
Mms41g
Xmax4.5mm
SPL100dB
Power450W
Power Nominal450W
Impedance8Ω
F Low60Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.0kg
Diameter315.0mm
Overall Depth147.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
