B&C design · archived
MC122AN
12" 600W Stage Monitor - 12" Neo Coaxial - 60°x40° HF Dispersion Angle
- Drivers
- 12HCX76, 8 Ω
- Power
- 600 W

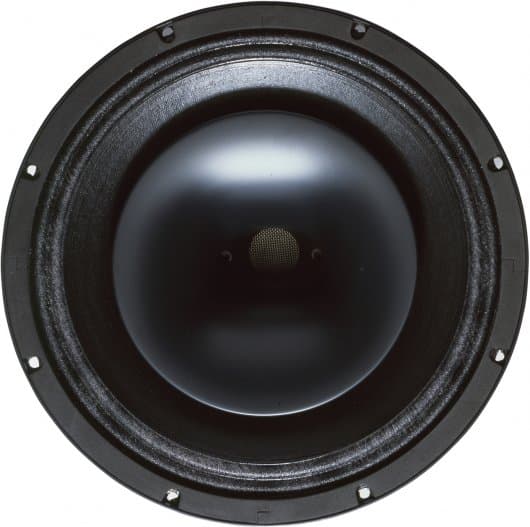

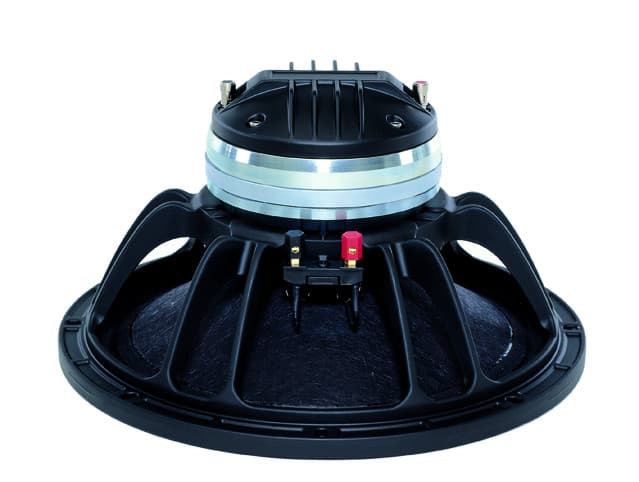

12-inch LF driver · 12HCX series · 76 mm voice coil · 350 W
B&C 12HCX76 8Ω
8 Ω
£385.07
SteadyJP Leisure · In stock · All 5 offers
- Fs
- 42Hz
- Xmax
- 6mm
- SPL
- 99dB
- Pe
- 350W
- BL
- 17.6T·m
- Vd
- 313cm³
- Qts
- 0.19
- Vas
- 120L

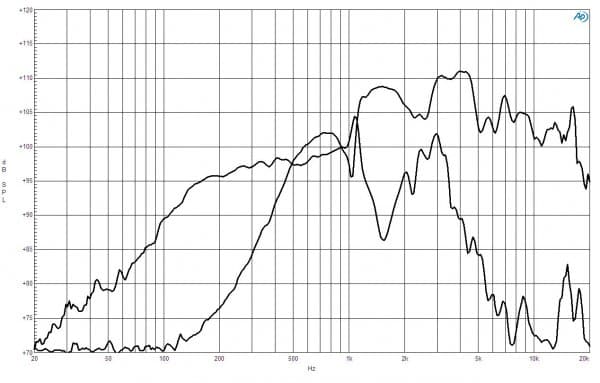

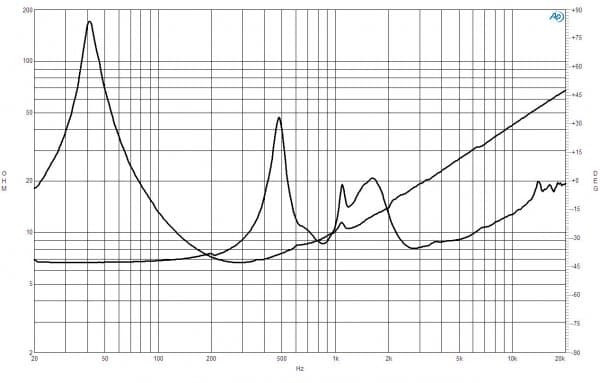

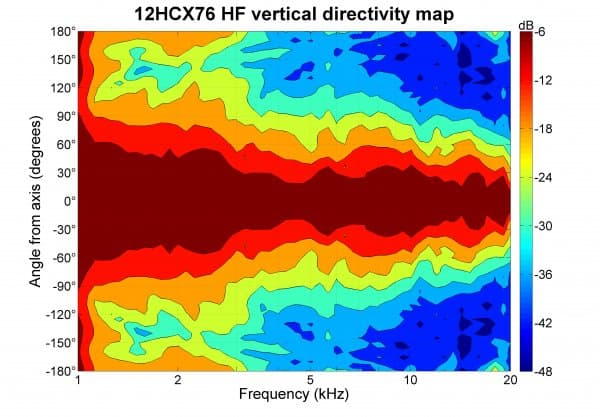

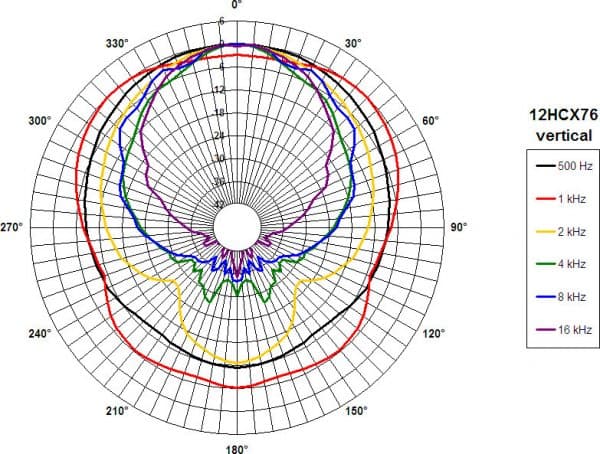

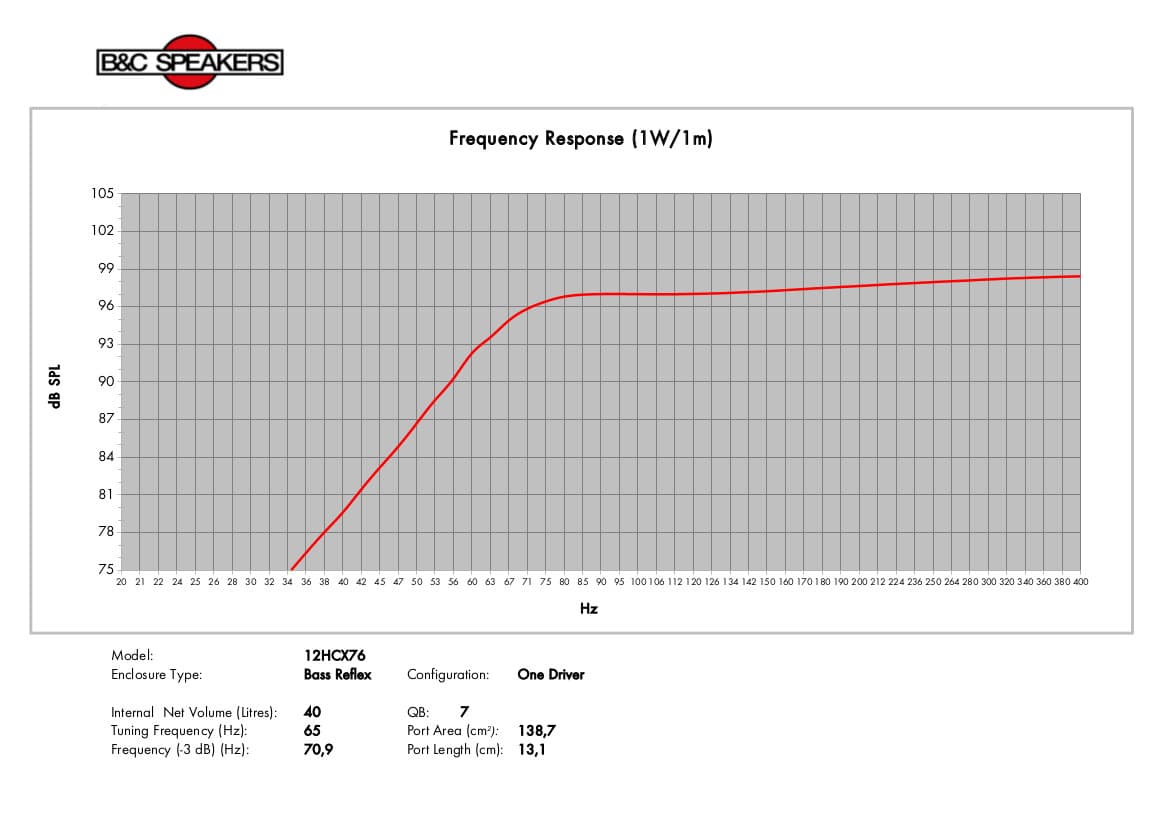

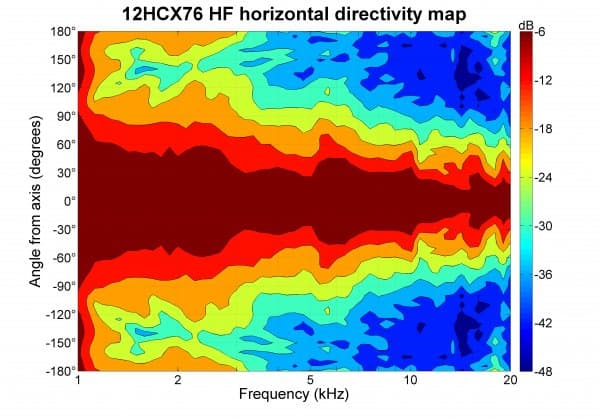

Published graphs
B&C 12HCX76 is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.19, Vas 120 L, Xmax 6 mm, sensitivity 98.5 dB, plus 313 cm³ Vd and 210 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £385.07.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.19
- Qes
- 0.20
- Qms
- 8
- Vas
- 120L
- Re
- 5Ω
- Le
- 0.80mH
Motor and cone
- BL
- 17.6T·m
- Sd
- 522cm²
- Mms
- 47g
- Xmax
- 6mm
- Vd †
- 313cm³
- Voice coil
- 76mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 98.5dB
- Manufacturer sensitivity
- 99dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 8Ω
- Min. impedance
- 6.7Ω
- EBP †
- 210 · Leans vented
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 17.6T·m
- Fs
- 42Hz
- Le
- 0.80mH
- Re
- 5Ω
- Sd
- 522cm²
- Mms
- 47g
- Qes
- 0.20
- Qms
- 8
- Qts
- 0.19
- SPL
- 98.5dB
- Vas
- 120L
- Xmax
- 6mm
- Power
- 350W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 99dB
- Nominal power
- 350W
- Calculated sensitivity †
- 98.5dB
- Manufacturer sensitivity
- 99dB
- Min. impedance
- 6.7Ω
- Voice coil
- 76mm
- Bl
- 17.6 Tm
- Fs
- 42 Hz
- Le
- 0.8 mH
- Re
- 5 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 210 Hz
- Mms
- 47 g
- Qes
- 0.2
- Qms
- 8
- Qts
- 0.19
- Vas
- 120 dm³ (4.2 ft³)
- Η0
- 4.1 %
- Xvar
- 6 mm
- Sensitivity
- 99 dB
- Flux density
- 1.15 T
- Winding depth
- 16.5 mm (0.65 in)
- Former material
- Glass Fibre
- Nominal diameter
- 320 mm (12 in)
- Winding material
- Copper
- Minimum impedance
- 6.7 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Voice coil diameter
- 76 mm (3 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 350 W
- Continuous power handling
- 700 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 107dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 1.90T
- Sensitivity
- 107dB
- Nominal power
- 80W
- Manufacturer sensitivity
- 107dB
- Min. impedance
- 8Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Inductance
- 0.14 mH
- Sensitivity
- 107 dB
- Flux density
- 1.9 T
- Nominal diameter
- 320 mm (12 in)
- Winding material
- Aluminium
- Minimum impedance
- 8 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
B&C’s design
From the maker, with plans to download
