LF Driver
Fane

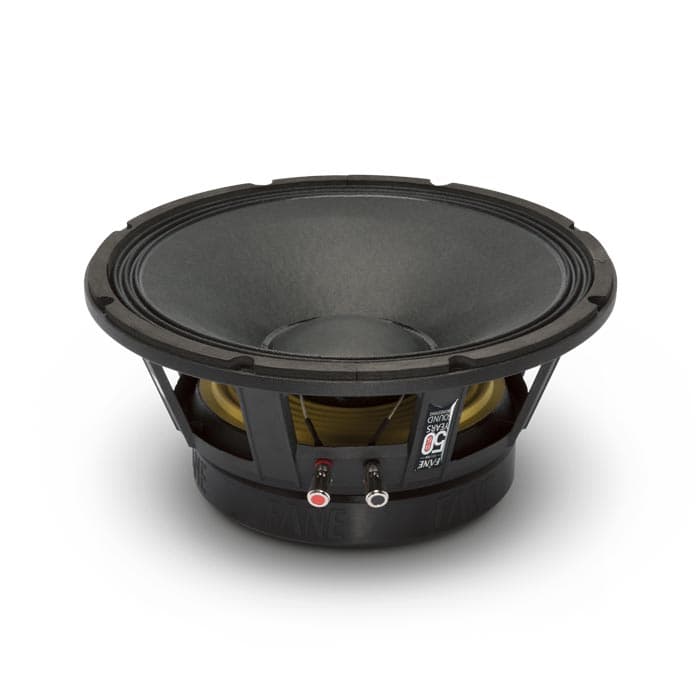

Fane SOVEREIGN PRO 12-500
Fane SOVEREIGN PRO 12-500 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 43Hz, Qts 0.31, Vas 107L, Xmax 6mm, sensitivity 95.9dB, plus 339cm³ Vd and 123 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £129.00.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
95.9dB
97.5dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
123
Vented alignment
Vd
339cm³
T/S Parameters
Valid
Fs43Hz
Qts0.31
Qes0.35
Qms3.0
Vas107.0L
Re5.6Ω
Le1.60mH
BL16.0Tm
Sd565cm²
Mms58g
Xmax6.0mm
SPL96dB
Power500W
Impedance8Ω
F Low45Hz
F High4500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£129.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight16.5kg
Diameter314.2mm
Overall Depth144.8mm
