Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespScanspeak 28W/8878T01 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverRevelator series
Scanspeak

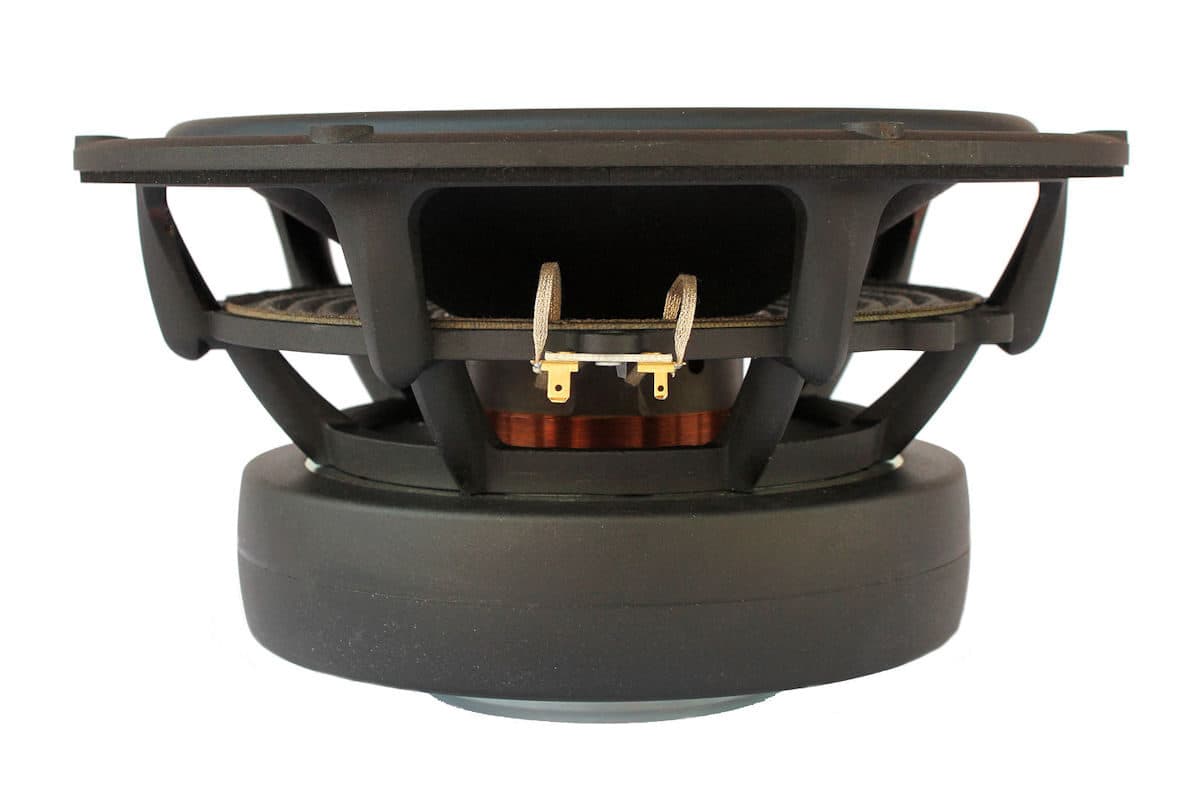

Scanspeak 28W/8878T01
Scanspeak 28W/8878T01 is a 12" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 22Hz, Qts 0.31, Vas 116L, Xmax 7.5mm, sensitivity 87.8dB, plus 272cm³ Vd and 67 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
200W
Sensitivity
87.8dB
EBP
67
Either alignment
Vd
272cm³
T/S Parameters
Valid
Fs22Hz
Qts0.31
Qes0.33
Qms5.8
Vas116.0L
Re6.3Ω
Le0.55mH
BL14.9Tm
Sd363cm²
Mms84g
Xmax7.5mm
SPL88dB
Power200W
Impedance8Ω
Min Impedance7.4Ω
Voice Coil75mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£601.38
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter280.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
28W/8878T01
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
ETON
12-612/C8/62 RP
12"
Xmax8.5mm+13%
Qts0.32+3%
BL15.7Tm+5%
Vas134L+16%
Qes0.34+3%
80%
Similarity
£129.00

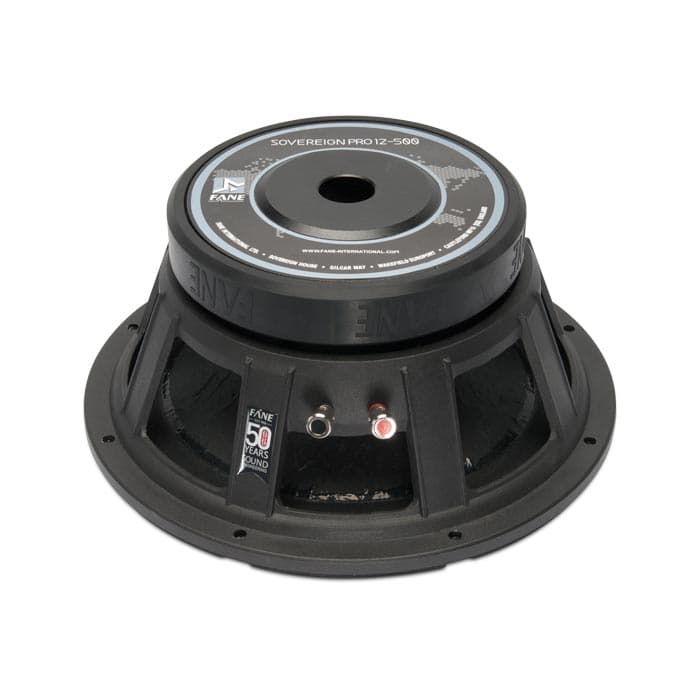

Fane
SOVEREIGN PRO 12-500
12"
Xmax6mm-20%
Qts0.31+1%
BL16Tm+7%
Vas107L-8%
Qes0.35+6%
77%
Similarity
£175.00
Eminence
KAPPALITE 3012LF
12"
Xmax9.1mm+21%
Qts0.32+3%
BL16.7Tm+12%
Vas106.7L-8%
Qes0.34+3%
77%
Similarity
£184.90
Eminence
KAPPALITE 3012HO
12"
Xmax6.2mm-17%
Qts0.32+3%
BL15.9Tm+7%
Vas81.1L-30%
Qes0.330%
75%
Similarity
Eighteen Sound
12NTLX3500
12"
Xmax7.9mm+5%
Qts0.33+6%
BL17.1Tm+15%
Vas79.6L-31%
Qes0.35+6%
74%
Similarity
£159.86
FaitalPRO
12PR320
12"
Xmax7.4mm-2%
Qts0.37+19%
BL13.5Tm-9%
Vas113.3L-2%
Qes0.39+18%
72%
Similarity
£194.30
FaitalPRO
12FH520
12"
Xmax7.3mm-3%
Qts0.29-6%
BL17.3Tm+16%
Vas73.7L-36%
Qes0.3-9%
71%
Similarity
Beyma
112G48
12"
Xmax7mm-7%
Qts0.3-3%
BL18.4Tm+23%
Vas81L-30%
Qes0.3-9%
70%
Similarity
£122.29
Beyma
12WRS400
12"
Xmax6.3mm-16%
Qts0.29-6%
BL17.4Tm+17%
Vas91L-22%
Qes0.31-6%
70%
Similarity
Celestion
CF1230F
12"
Xmax7.5mm0%
Qts0.32+2%
BL18.3Tm+23%
Vas49.6L-57%
Qes0.34+4%
70%
Similarity

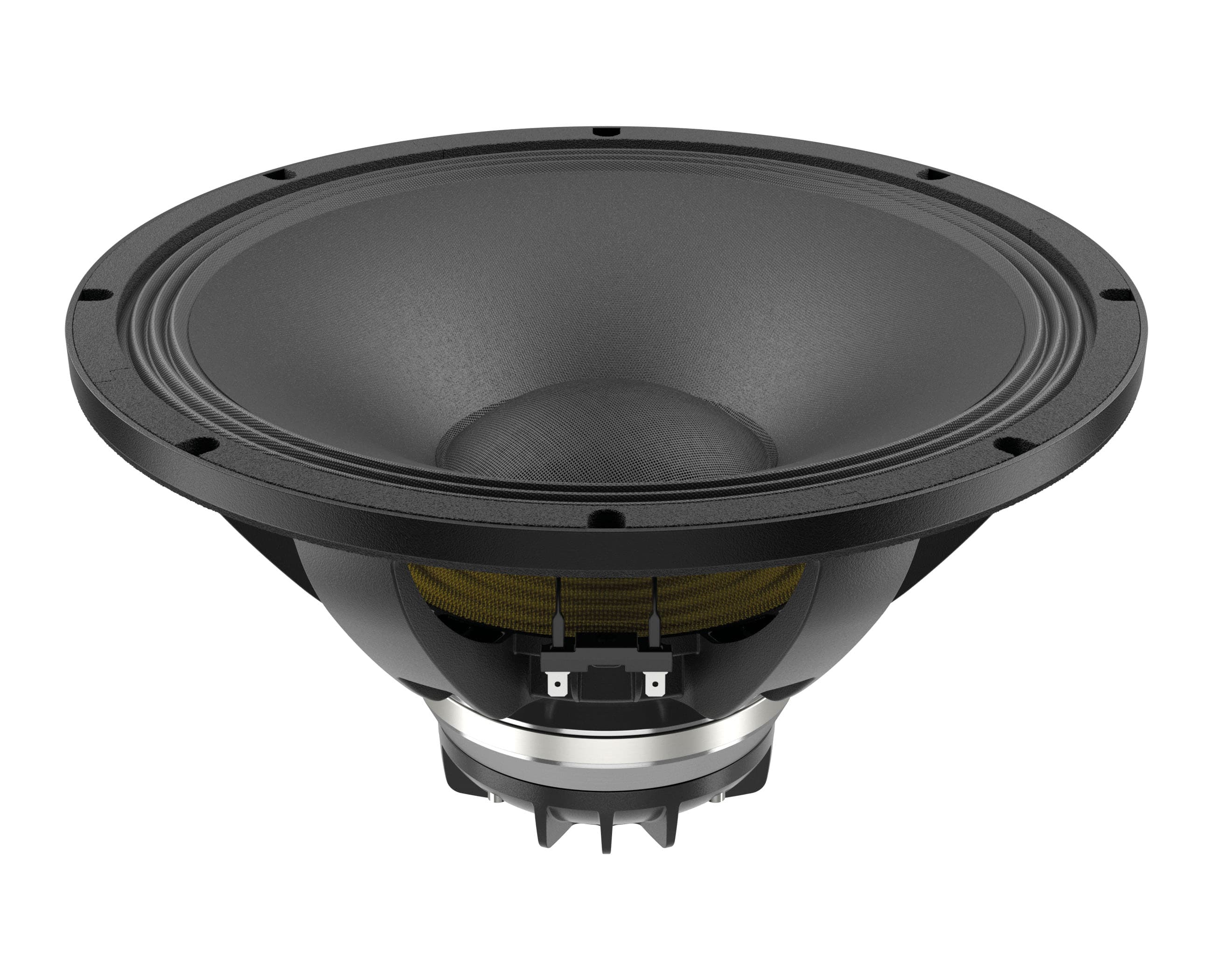

Lavoce
CAN143.00T
12"
Xmax6mm-20%
Qts0.3-3%
BL18.8Tm+26%
Vas122.3L+5%
Qes0.31-6%
70%
Similarity
Sica
12 N 3 PL
12"
Xmax5.5mm-27%
Qts0.3-3%
BL16Tm+7%
Vas87.9L-24%
Qes0.31-6%
