LF DriverRevelator series
Scanspeak

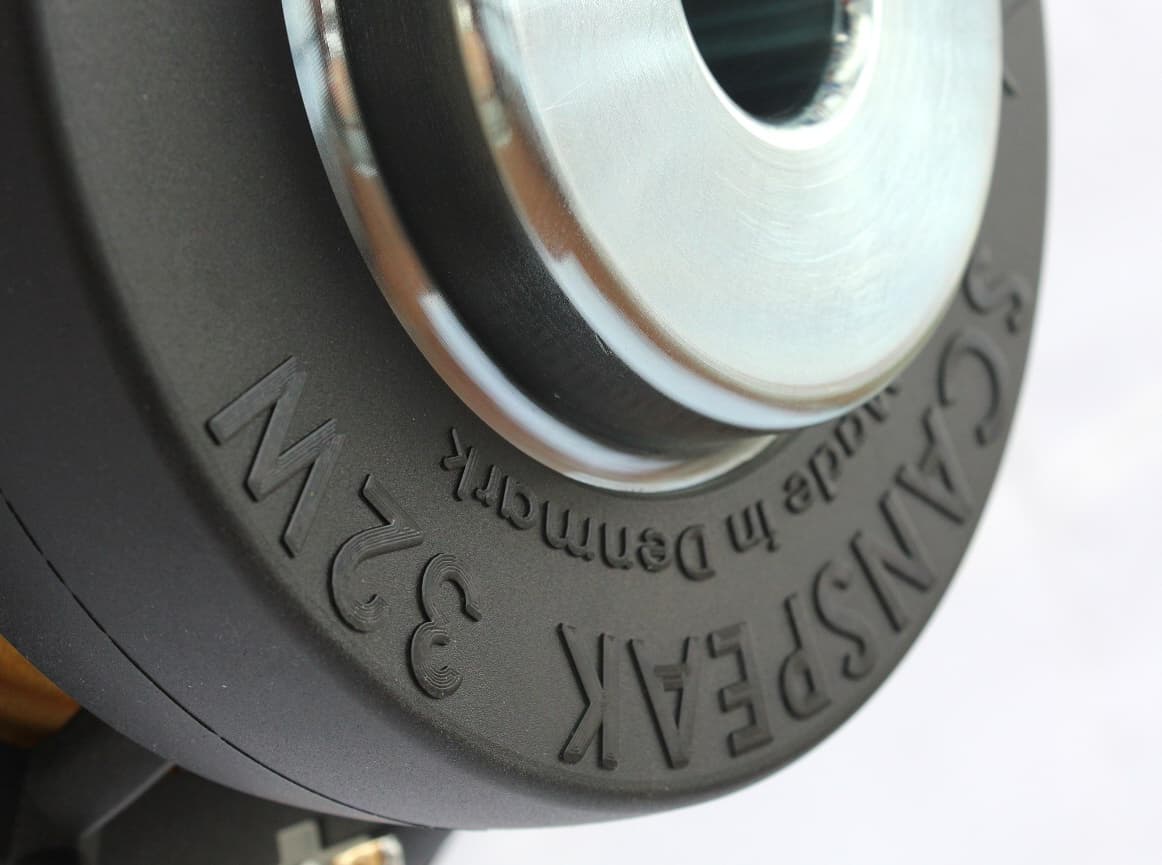

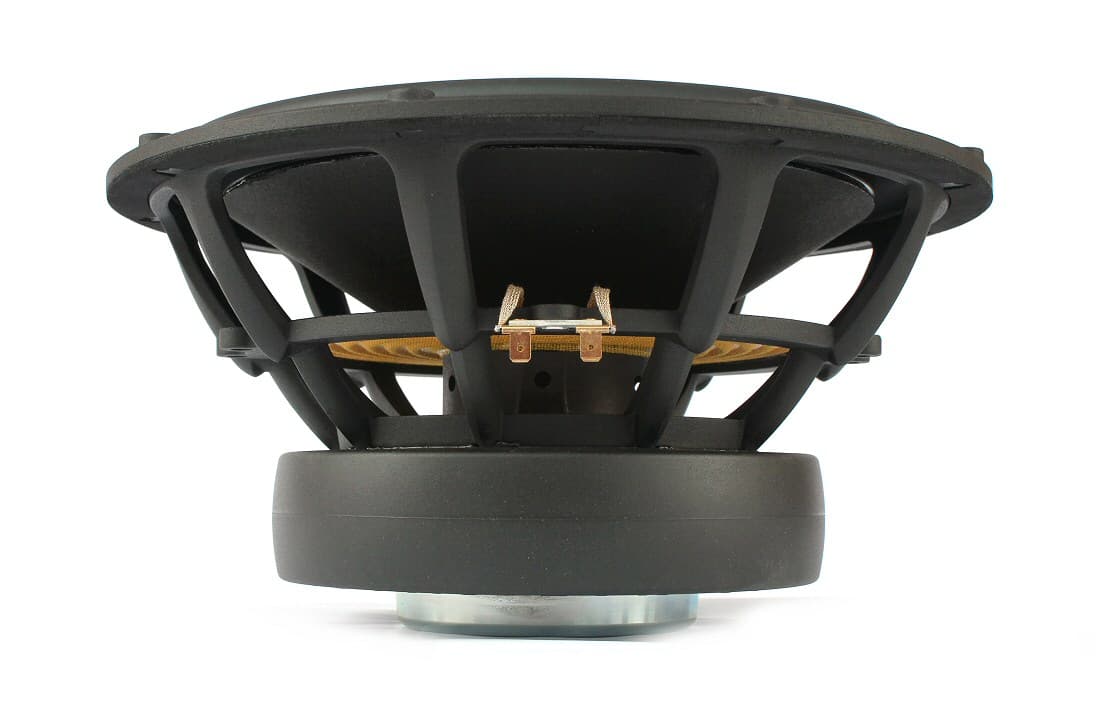

Scanspeak 32W/8878T01
Scanspeak 32W/8878T01 is a 12" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 19Hz, Qts 0.33, Vas 234L, Xmax 7.5mm, sensitivity 88.7dB, plus 395cm³ Vd and 55 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £651.95.
Size
12"
Impedance
8Ω
RMS Power
150W
Sensitivity
88.7dB
EBP
55
Either alignment
Vd
395cm³
T/S Parameters
Valid
Fs19Hz
Qts0.33
Qes0.35
Qms5.7
Vas234.0L
Re6.1Ω
Le0.68mH
BL15.6Tm
Sd526cm²
Xmax7.5mm
SPL89dB
Power150W
Impedance8Ω
Min Impedance7.2Ω
Voice Coil75mm
Pricing & availability
Price definitionsPrice movement
Best current price
£651.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter320.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
32W/8878T01
12"
Best current price
£651.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
87% cheaper£86.11
Dayton Audio
DS315-8
12"
Lower price
Xmax5.5mm-27%
Qts0.31-6%
BL15.6Tm0%
Vas159L-32%
Qes0.37+6%
67%
Similarity
85% cheaper£96.60
Dayton Audio
DSA315-8
12"
Lower price
Xmax5.5mm-27%
Qts0.330%
BL16.1Tm+3%
Vas147L-37%
Qes0.4+14%
85%
Similarity
83% cheaper£113.81
CIARE
HW321
12"
Lower price
Xmax7.3mm-3%
Qts0.330%
BL13.2Tm-16%
Vas205L-12%
Qes0.37+6%
69%
Similarity
80% cheaper£129.00
Fane
SOVEREIGN PRO 12-500
12"
Lower price
Xmax6mm-20%
Qts0.31-5%
BL16Tm+3%
Vas107L-54%
Qes0.350%
65%
Similarity
75% cheaper£159.86
FaitalPRO
12PR320
12"
Lower price
Xmax7.4mm-2%
Qts0.37+12%
BL13.5Tm-13%
Vas113.3L-52%
Qes0.39+11%
67%
Similarity
73% cheaper£175.00
Eminence
KAPPALITE 3012LF
12"
Lower price
Xmax9.1mm+21%
Qts0.32-3%
BL16.7Tm+7%
Vas106.7L-54%
Qes0.34-3%
32%
Similarity
48% cheaper£337.46
Beyma
12CXA400FE
12"
Lower price
Xmax6mm-20%
Qts0.25-24%
BL19.8Tm+27%
Vas94L-60%
Qes0.26-26%
77%
Similarity
Scanspeak
28W/8878T01
12"
Xmax7.5mm0%
Qts0.31-6%
BL14.9Tm-4%
Vas116L-50%
Qes0.33-6%
74%
Similarity
Scanspeak
32W/8878T11
12"
Xmax7.5mm0%
Qts0.26-21%
BL16.5Tm+6%
Vas235L0%
Qes0.28-20%
73%
Similarity
Audio Technology
12 B 77 25 10
12"
Xmax8.6mm+15%
Qts0.3-9%
BL12.4Tm-21%
Vas250L+7%
Qes0.34-3%
73%
Similarity
Dayton Audio
SD315A-88
12"
Xmax7mm-7%
Qts0.330%
BL11.9Tm-24%
Vas151.7L-35%
Qes0.37+6%
64%
Similarity
Scanspeak
32W/4878T01
12"
Xmax7mm-7%
Qts0.28-15%
BL13Tm-17%
Vas170L-27%
Qes0.3-14%
