Overview
LF Driver
Eighteen Sound

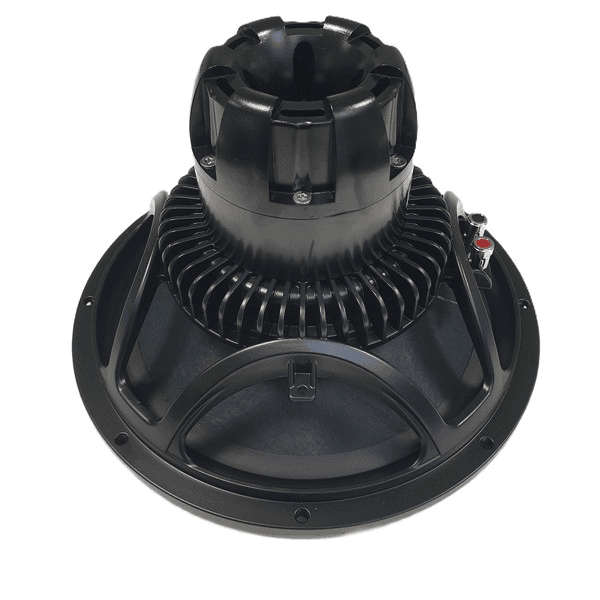

Eighteen Sound 12NTLX3500
Eighteen Sound 12NTLX3500 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.33, Vas 79.6L, Xmax 7.9mm, sensitivity 93.3dB, plus 419cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
93.3dB
95.5dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
111
Vented alignment
Vd
419cm³
Datasheet traces

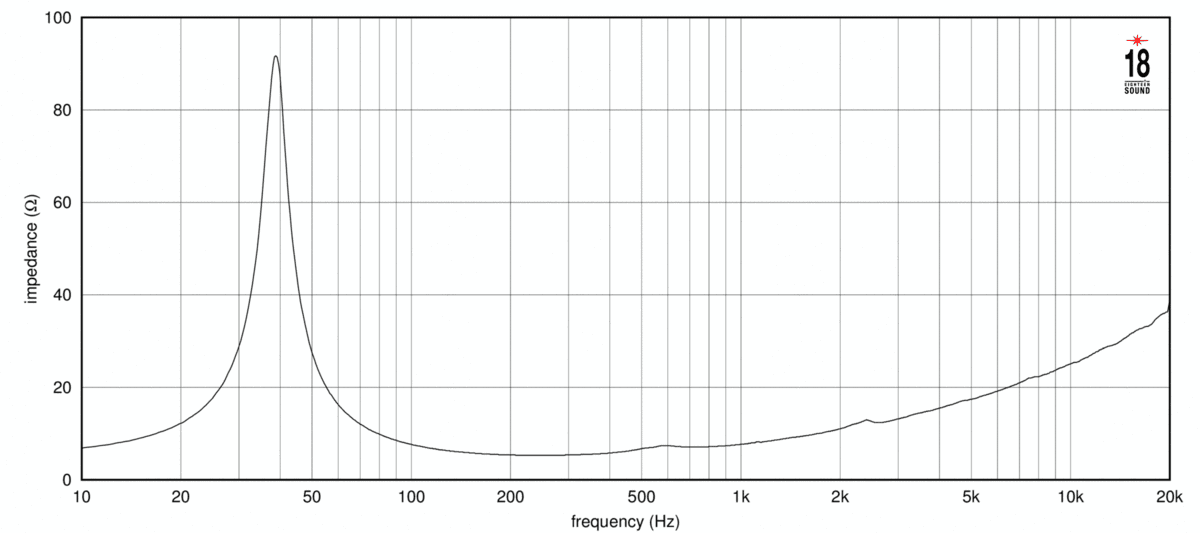

Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

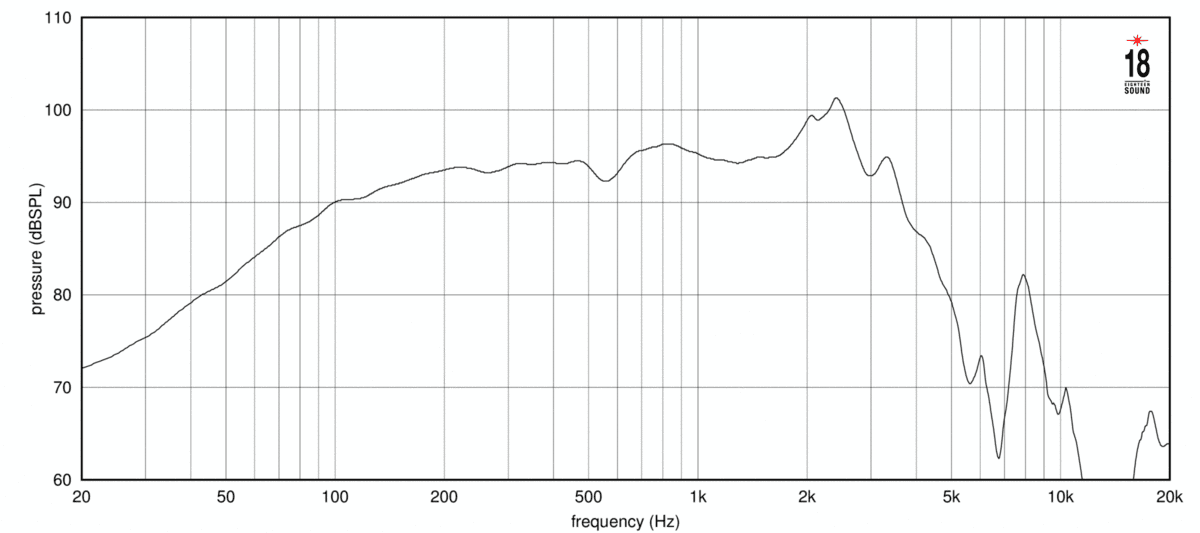

frequency response
Frequency response
240 plotted pointsMedium confidence622 selected pixels of 847
T/S Parameters
Valid
Fs39Hz
Qts0.33
Qes0.35
Qms6.2
Vas79.6L
Re5.0Ω
Le0.52mH
BL17.1Tm
Sd531cm²
Mms86g
Xmax7.9mm
SPL93dB
Power600W
Power Nominal600W
Impedance8Ω
F Low40Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.6kg
Diameter310.0mm
Overall Depth194.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter295.0mm
