12-inch LF driver · 550 W
Fane COLOSSUS 12MBH 8Ω
8 Ω · 45–4000 Hz
No current price
- Fs
- 48Hz
- Xmax
- 6mm
- SPL
- 96dB
- Pe
- 550W
- BL
- 17.5T·m
- Vd
- 318cm³
- Qts
- 0.34
- Vas
- 75L

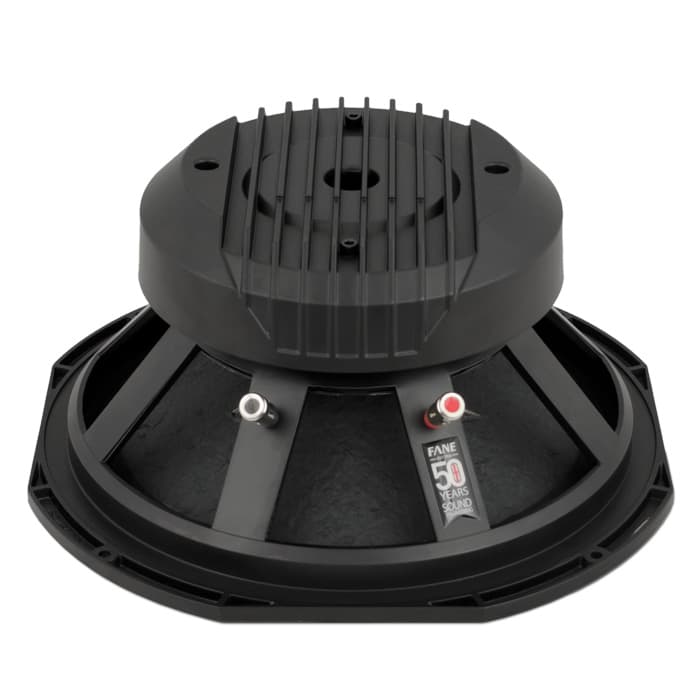

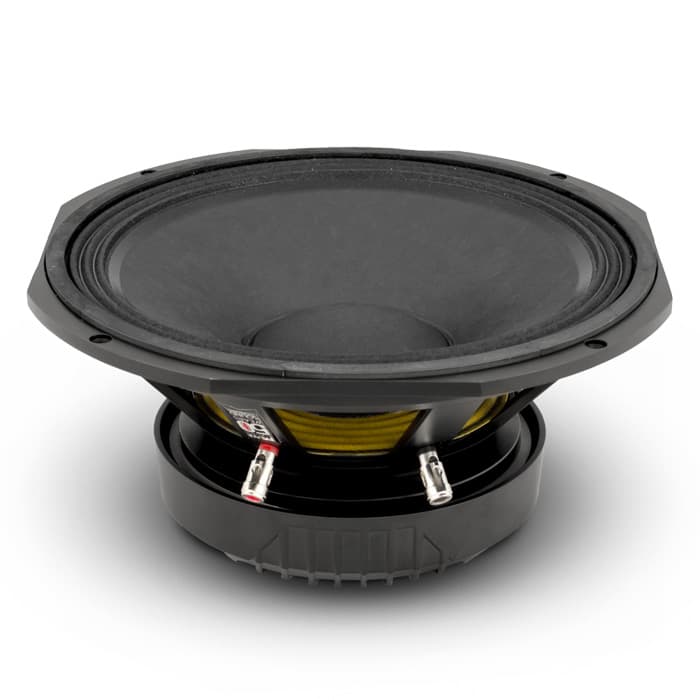

Fane COLOSSUS 12MBH is a 12-inch 8 ohm LF driver rated at 550 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.34, Vas 75 L, Xmax 6 mm, sensitivity 95.8 dB, plus 318 cm³ Vd and 137 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 7.2
- Vas
- 75L
- Re
- 5.5Ω
- Le
- 1.54mH
Motor and cone
- BL
- 17.5T·m
- Sd
- 530cm²
- Mms
- 57g
- Xmax
- 6mm
- Vd †
- 318cm³
Power and response
- Sensitivity †
- 95.8dB
- Manufacturer sensitivity
- 96dB
- Power
- 550W
- Impedance
- 8Ω
- Range
- 45–4000Hz
- EBP †
- 137 · Leans vented
Size and mounting
- Diameter
- 330.2mm
- Depth
- 140mm
- Weight
- 10.2kg
Other published values
- Cms
- 0.19mm/N
- Power Peak
- 2200
- Power Program
- 1100
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 12″
- BL
- 17.5T·m
- Fs
- 48Hz
- Le
- 1.54mH
- Re
- 5.5Ω
- Sd
- 530cm²
- Cms
- 0.19mm/N
- Mms
- 57g
- Qes
- 0.35
- Qms
- 7.2
- Qts
- 0.34
- SPL
- 95.8dB
- Vas
- 75L
- Xmax
- 6mm
- Power
- 550W
- Impedance
- 8Ω
- Power Peak
- 2200
- Sensitivity
- 96dB
- Low limit
- 45Hz
- Power Program
- 1100
- Calculated sensitivity †
- 95.8dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 10.2kg
- Diameter
- 330.2mm
- Depth
- 140mm
02
Compare
Same-size drivers, compared with the COLOSSUS 12MBH. Clear differences are green when better and red when worse.
This driverCOLOSSUS 12MBH
Best price
–
Fs
48 Hz
Qts
0.34
Vas
75 L
BL
17.5 T·m
Xmax
6 mm
Sensitivity
95.8 dB
Power
550 W
CelestionTF1225E
£99.00Fs53 Hz +10%
Qts0.33 –
Vas67.7 L −10%
BL17.7 T·m –
Xmax5.3 mm −13%, worse
Sensitivity96.3 dB +0.5
MonacorTF1225E/8
£105.49Fs53 Hz +10%
Qts0.33 –
Vas67 L −11%, better
BL17.7 T·m –
Xmax5 mm −17%, worse
Sensitivity96.3 dB +0.5
PRV Audio12MB1000FT
£120.53Fs53 Hz +10%
Qts0.37 +10%, worse
Vas74.6 L –
BL16.5 T·m −5%
Xmax6.9 mm +15%, better
Sensitivity96.6 dB +0.8
Beyma12WRS400
£122.29Fs42 Hz −13%, better
Qts0.29 −13%, better
Vas91 L +21%, worse
BL17.4 T·m –
Xmax6.3 mm +5%
Sensitivity95.4 dB –
£129.00
Fs43 Hz −10%, better
Qts0.31 −6%
Vas107 L +43%, worse
BL16 T·m −9%
Xmax6 mm –
Sensitivity95.9 dB –
Eighteen Sound12W700
£179.00Fs58 Hz +21%, worse
Qts0.36 +7%
Vas55 L −27%, better
BL17.7 T·m –
Xmax6.5 mm +8%
Sensitivity96.7 dB +0.9
EminenceKAPPALITE 3012HO
£188.43Fs52 Hz +8%
Qts0.32 −4%
Vas81.1 L +8%
BL15.9 T·m −9%
Xmax6.2 mm +3%
Sensitivity97.4 dB +1.6
Eighteen Sound12ND830
£242.19Fs55 Hz +15%, worse
Qts0.28 −16%, better
Vas72 L −4%
BL17.6 T·m –
Xmax6.5 mm +8%
Sensitivity98 dB +2.2, better
B&C12FCX76
£294.14Fs47 Hz –
Qts0.34 –
Vas82 L +9%
BL15.6 T·m −11%, worse
Xmax5 mm −17%, worse
Sensitivity95.9 dB –
Eighteen Sound12NCX750
£426.63Fs58 Hz +21%, worse
Qts0.29 −13%, better
Vas63 L −16%, better
BL17.5 T·m –
Xmax5.5 mm −8%
Sensitivity98 dB +2.2, better
Eighteen Sound12NCX750H
£444.75Fs58 Hz +21%, worse
Qts0.29 −13%, better
Vas63 L −16%, better
BL17.5 T·m –
Xmax5.5 mm −8%
Sensitivity98 dB +2.2, better
CIARE12.75W1
No current priceFs49 Hz –
Qts0.33 –
Vas67 L −11%, better
BL18.9 T·m +8%
Xmax6 mm –
Sensitivity95.7 dB –
PRV Audio12MB2000FT
No current priceFs56 Hz +16%, worse
Qts0.32 −4%
Vas66.9 L −11%, better
BL17.7 T·m –
Xmax6 mm –
Sensitivity97.5 dB +1.7
CelestionCNX1230
No current priceFs54 Hz +12%, worse
Qts0.34 –
Vas68.4 L −9%
BL16.3 T·m −7%
Xmax6.5 mm +8%
Sensitivity96.8 dB +1
MonacorSP-12A/302PA
No current priceFs50 Hz +4%
Qts0.34 –
Vas77 L –
BL17.0 T·m –
Xmax5 mm −17%, worse
Sensitivity96.4 dB +0.6
PRV Audio12MB2000FT-NDY
No current priceFs55 Hz +15%, worse
Qts0.30 −10%, better
Vas71.5 L −5%
BL17.7 T·m –
Xmax6 mm –
Sensitivity97.9 dB +2.1, better
Sica12 S 3 PL
No current priceFs42 Hz −13%, better
Qts0.34 –
Vas76.9 L –
BL16.8 T·m −4%
Xmax7 mm +17%, better
Sensitivity94 dB −1.8
Oberton12HCX
No current priceFs53 Hz +10%
Qts0.33 –
Vas55.5 L −26%, better
BL17.8 T·m –
Xmax5.3 mm −13%, worse
Sensitivity95.6 dB –
Eighteen Sound12MB606
No current priceFs50 Hz +4%
Qts0.32 −4%
Vas84 L +12%, worse
BL16 T·m −9%
Xmax6.5 mm +8%
Sensitivity96.9 dB +1.1
Eighteen Sound12W600
No current priceFs50 Hz +4%
Qts0.30 −10%, better
Vas73 L –
BL17.3 T·m –
Xmax6.5 mm +8%
Sensitivity96.6 dB +0.8
LavoceCAF123.00T
No current priceFs53 Hz +10%, worse
Qts0.36 +7%
Vas71.4 L −5%
BL15.2 T·m −13%, worse
Xmax6 mm –
Sensitivity96.4 dB +0.6
LavoceCAF123.00TH
No current priceFs53 Hz +10%, worse
Qts0.36 +7%
Vas71.4 L −5%
BL15.2 T·m −13%, worse
Xmax6 mm –
Sensitivity96.4 dB +0.6
Oberton12CX
No current priceFs51 Hz +7%
Qts0.35 +3%
Vas58.5 L −22%, better
BL17.4 T·m –
Xmax5.3 mm −13%, worse
Sensitivity95.4 dB –
P.Audio12BMA-500B
No current priceFs57 Hz +19%, worse
Qts0.34 –
Vas61.4 L −18%, better
BL16.7 T·m −5%
Xmax5 mm −17%, worse
Sensitivity97 dB +1.2
REDCATT121XR
No current priceFs46 Hz −4%
Qts0.33 –
Vas69.1 L −8%
BL16 T·m −9%
Xmax6.3 mm +6%
Sensitivity94.1 dB −1.7
Eighteen Sound12NTLX3500
No current priceFs39 Hz −19%, better
Qts0.33 –
Vas79.6 L +6%
BL17.1 T·m –
Xmax7.9 mm +32%, better
Sensitivity93.3 dB −2.5, worse
B&C12FL76
No current priceFs50 Hz +4%
Qts0.30 −10%, better
Vas57 L −24%, better
BL18.7 T·m +7%
Xmax6 mm –
Sensitivity95.5 dB –
P.Audio12BM-500B
No current priceFs52 Hz +8%
Qts0.35 +4%
Vas69.8 L −7%
BL16.6 T·m −5%
Xmax4.8 mm −20%, worse
Sensitivity96.3 dB +0.5
P.Audio12NT-76MB
No current priceFs55 Hz +15%, worse
Qts0.36 +7%
Vas71.6 L −5%
BL17.4 T·m –
Xmax4.5 mm −25%, worse
Sensitivity97.1 dB +1.3
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
