- Net volume
- 40L
- Tuning
- 55Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

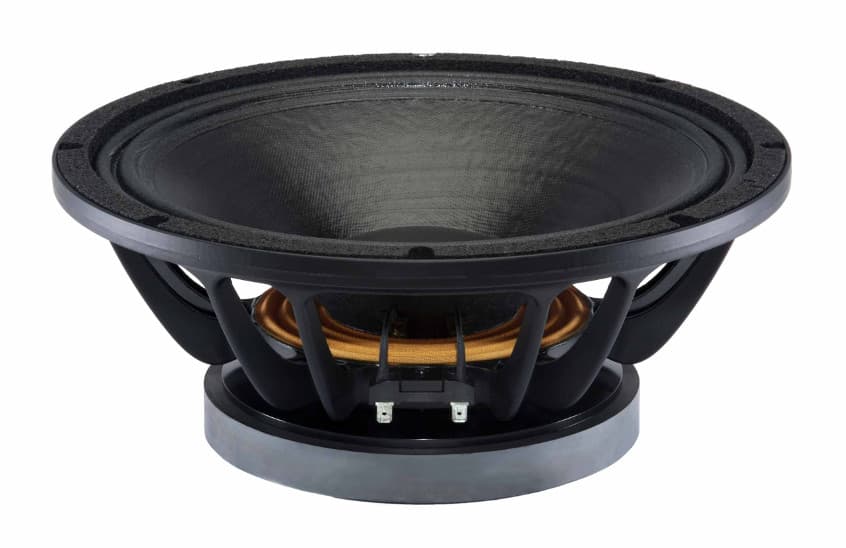

12-inch LF driver · 12FL series · 76 mm voice coil · 400 W
B&C 12FL76 8Ω
8 Ω · 50–4000 Hz
No current price
- Fs
- 50Hz
- Xmax
- 6mm
- SPL
- 96dB
- Pe
- 400W
- BL
- 18.7T·m
- Vd
- 313cm³
- Qts
- 0.30
- Vas
- 57L

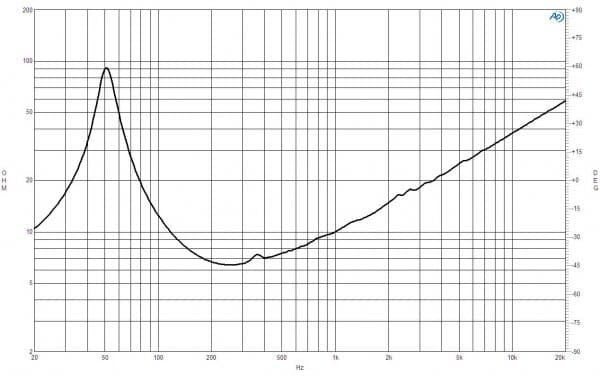

Published graphs
B&C 12FL76 is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.30, Vas 57 L, Xmax 6 mm, sensitivity 95.5 dB, plus 313 cm³ Vd and 156 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.30
- Qes
- 0.32
- Qms
- 5.8
- Vas
- 57L
- Re
- 5.4Ω
- Le
- 1mH
Motor and cone
- BL
- 18.7T·m
- Sd
- 522cm²
- Mms
- 64g
- Xmax
- 6mm
- Vd †
- 313cm³
- Voice coil
- 76mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.5dB
- Manufacturer sensitivity
- 97.5dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 50–4000Hz
- EBP †
- 156 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 282mm
- Bolt circle
- 298mm
- Depth
- 140mm
- Weight
- 6.8kg
Sensitivity shows 95.5 dB, calculated from the T/S values. B&C publishes 97.5 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 18.7T·m
- Fs
- 50Hz
- Le
- 1mH
- Re
- 5.4Ω
- Sd
- 522cm²
- Mms
- 64g
- Qes
- 0.32
- Qms
- 5.8
- Qts
- 0.30
- SPL
- 95.5dB
- Vas
- 57L
- Xmax
- 6mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 97.5dB
- Low limit
- 50Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 95.5dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 97.5dB
- Min. impedance
- 6.5Ω
- Voice coil
- 76mm
- Weight
- 6.8kg
- Diameter
- 315mm
- Depth
- 140mm
- Cutout
- 282mm
- Bolt circle
- 298mm
- Bl
- 18.7 Tm
- Fs
- 50 Hz
- Le
- 1 mH
- Re
- 5.4 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 156 Hz
- Mms
- 64 g
- Qes
- 0.32
- Qms
- 5.8
- Qts
- 0.3
- Vas
- 57 dm³ (2 ft³)
- Η0
- 2.4 %
- Cone
- RCK12FL768
- Xmax
- 6 mm
- Xvar
- 7.5 mm
- Depth
- 140 mm (5.5 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 6.85 kg (15.1 lb)
- Pole design
- T-Pole
- Sensitivity
- 97.5 dB
- Flux density
- 1.1 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 17 mm (0.67 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 4000 Hz
- Shipping weight
- 7.75 kg (17.09 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 315 mm (12.4 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.4 in)
- Recommended tuning
- 55 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 298 mm (11.7 in)
- Recommended enclosure
- 40 dm³ (1.4 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 282 mm (11.1 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 13 mm (0.51 in)
- Air volume occupied by driver
- 3 dm³ (0.1 ft³)

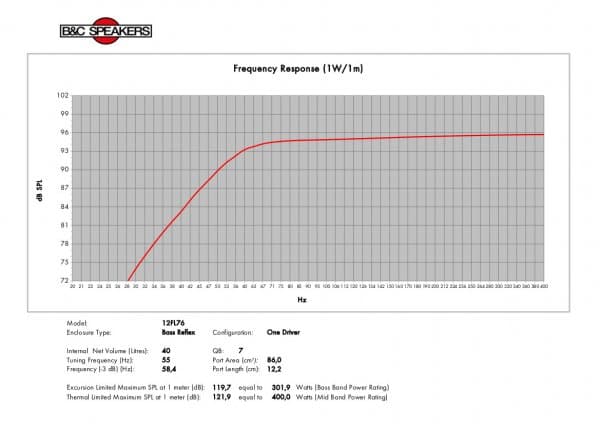

B&C’s suggested box
From B&C’s 12FL76 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 12FL76. Clear differences are green when better and red when worse.
This driver12FL76
Best price
–
Fs
50 Hz
Qts
0.30
Vas
57 L
BL
18.7 T·m
Xmax
6 mm
Sensitivity
95.5 dB
Power
400 W
B&C12CL64
£79.00Fs52 Hz +4%
Qts0.30 –
Vas64 L +12%, worse
BL17.5 T·m −6%
Xmax4.5 mm −25%, worse
Sensitivity96.5 dB +1
CelestionFTR12-3070C
£134.67Fs65 Hz +30%, worse
Qts0.32 +7%
Vas43.7 L −23%, better
BL18.6 T·m –
Xmax5.5 mm −8%
Sensitivity97.3 dB +1.8
B&C12FW64
£136.93Fs55 Hz +10%, worse
Qts0.29 −3%
Vas64 L +12%, worse
BL15.5 T·m −17%, worse
Xmax5 mm −17%, worse
Sensitivity97.3 dB +1.8
RCFMB12G301
£142.33Fs53 Hz +6%
Qts0.27 −10%
Vas72 L +26%, worse
BL17 T·m −9%
Xmax6 mm –
Sensitivity97.9 dB +2.4, better
PRV Audio12MR2000
£143.79Fs57 Hz +14%, worse
Qts0.33 +10%, worse
Vas52.5 L −8%
BL21.3 T·m +14%, better
Xmax6.6 mm +10%, better
Sensitivity96.6 dB +1.1
Beyma12G40
£154.94Fs44 Hz −12%, better
Qts0.30 –
Vas81 L +42%, worse
BL18.4 T·m –
Xmax7 mm +17%, better
Sensitivity95.6 dB –
Eighteen Sound12LW800
£189.95Fs52 Hz +4%
Qts0.29 −3%
Vas48 L −16%, better
BL21.3 T·m +14%, better
Xmax6.5 mm +8%
Sensitivity95.6 dB –
PRV Audio12MR2000X-NDY
£211.94Fs67 Hz +34%, worse
Qts0.31 +3%
Vas35.9 L −37%, better
BL22.7 T·m +21%, better
Xmax6.1 mm –
Sensitivity97.3 dB +1.8
Eighteen Sound12ND830
£243.08Fs55 Hz +10%, worse
Qts0.28 −7%
Vas72 L +26%, worse
BL17.6 T·m −6%
Xmax6.5 mm +8%
Sensitivity98 dB +2.5, better
Eighteen Sound12LW1400
£260.72Fs45 Hz −10%, better
Qts0.30 –
Vas55 L −4%
BL20 T·m +7%
Xmax8.3 mm +38%, better
Sensitivity94 dB −1.5
Dayton AudioRSS315HO-4
£295.59Fs26 Hz −48%, better
Qts0.31 +3%
Vas53.7 L −6%
BL20 T·m +7%
Xmax12.3 mm +105%, better
Sensitivity86.7 dB −8.8, worse

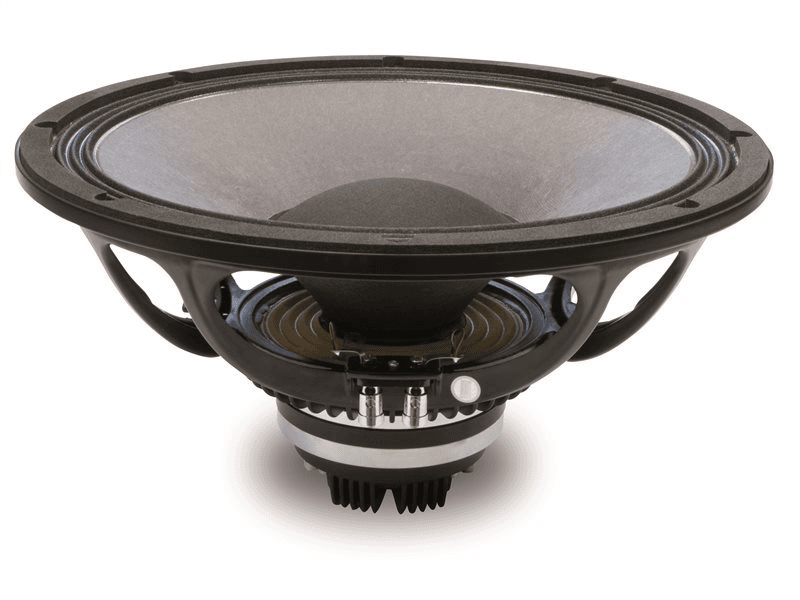

Eighteen Sound12NCX750
£426.63Fs58 Hz +16%, worse
Qts0.29 −3%
Vas63 L +11%, worse
BL17.5 T·m −6%
Xmax5.5 mm −8%
Sensitivity98 dB +2.5, better
Eighteen Sound12NCX910
£436.54Fs57 Hz +14%, worse
Qts0.30 –
Vas58 L –
BL18.1 T·m −3%
Xmax6.9 mm +15%, better
Sensitivity97.4 dB +1.9

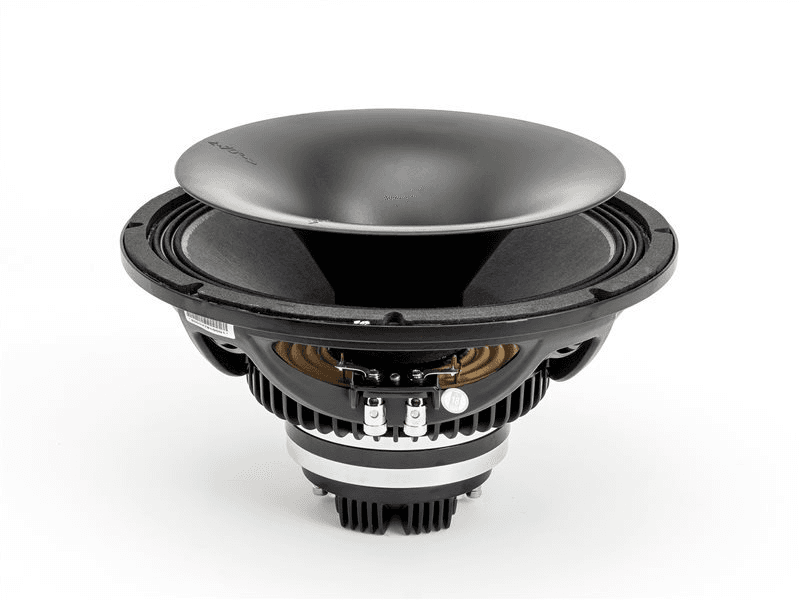

Eighteen Sound12NCX750H
£444.75Fs58 Hz +16%, worse
Qts0.29 −3%
Vas63 L +11%, worse
BL17.5 T·m −6%
Xmax5.5 mm −8%
Sensitivity98 dB +2.5, better
Eighteen Sound12NCX910N
£478.98Fs57 Hz +14%, worse
Qts0.30 –
Vas58 L –
BL18.1 T·m −3%
Xmax6.9 mm +15%, better
Sensitivity97.4 dB +1.9
PRV Audio12MB2000FT-NDY
No current priceFs55 Hz +10%, worse
Qts0.30 –
Vas71.5 L +25%, worse
BL17.7 T·m −5%
Xmax6 mm –
Sensitivity97.9 dB +2.4, better

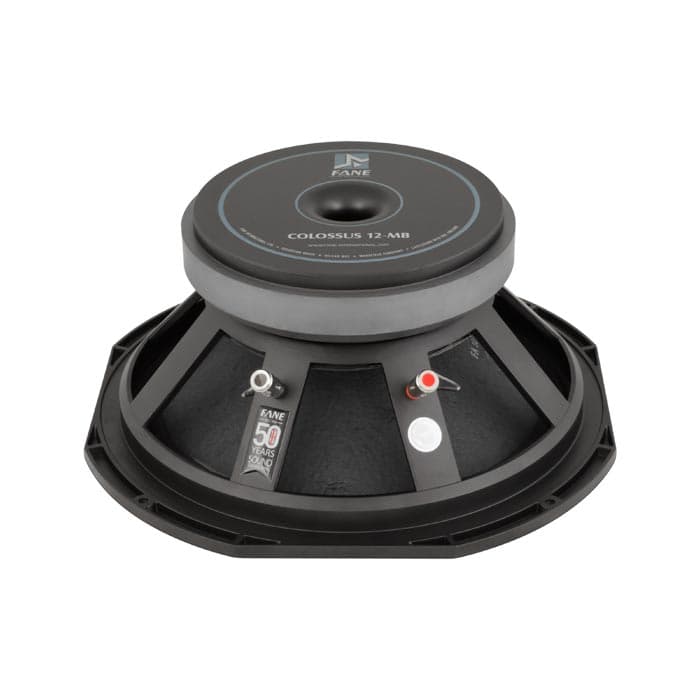

FaneCOLOSSUS 12MB
No current priceFs55 Hz +10%, worse
Qts0.29 −5%
Vas56 L –
BL18.3 T·m –
Xmax5.5 mm −8%
Sensitivity96.5 dB +1
Eighteen Sound12NCX910BE
No current priceFs57 Hz +14%, worse
Qts0.30 –
Vas58 L –
BL18.1 T·m −3%
Xmax6.9 mm +15%, better
Sensitivity97.4 dB +1.9
PRV Audio12MB2000FT
No current priceFs56 Hz +11%, worse
Qts0.32 +7%
Vas66.9 L +17%, worse
BL17.7 T·m −5%
Xmax6 mm –
Sensitivity97.5 dB +2, better
CIARE12.75W1
No current priceFs49 Hz –
Qts0.33 +10%, worse
Vas67 L +18%, worse
BL18.9 T·m –
Xmax6 mm –
Sensitivity95.7 dB –

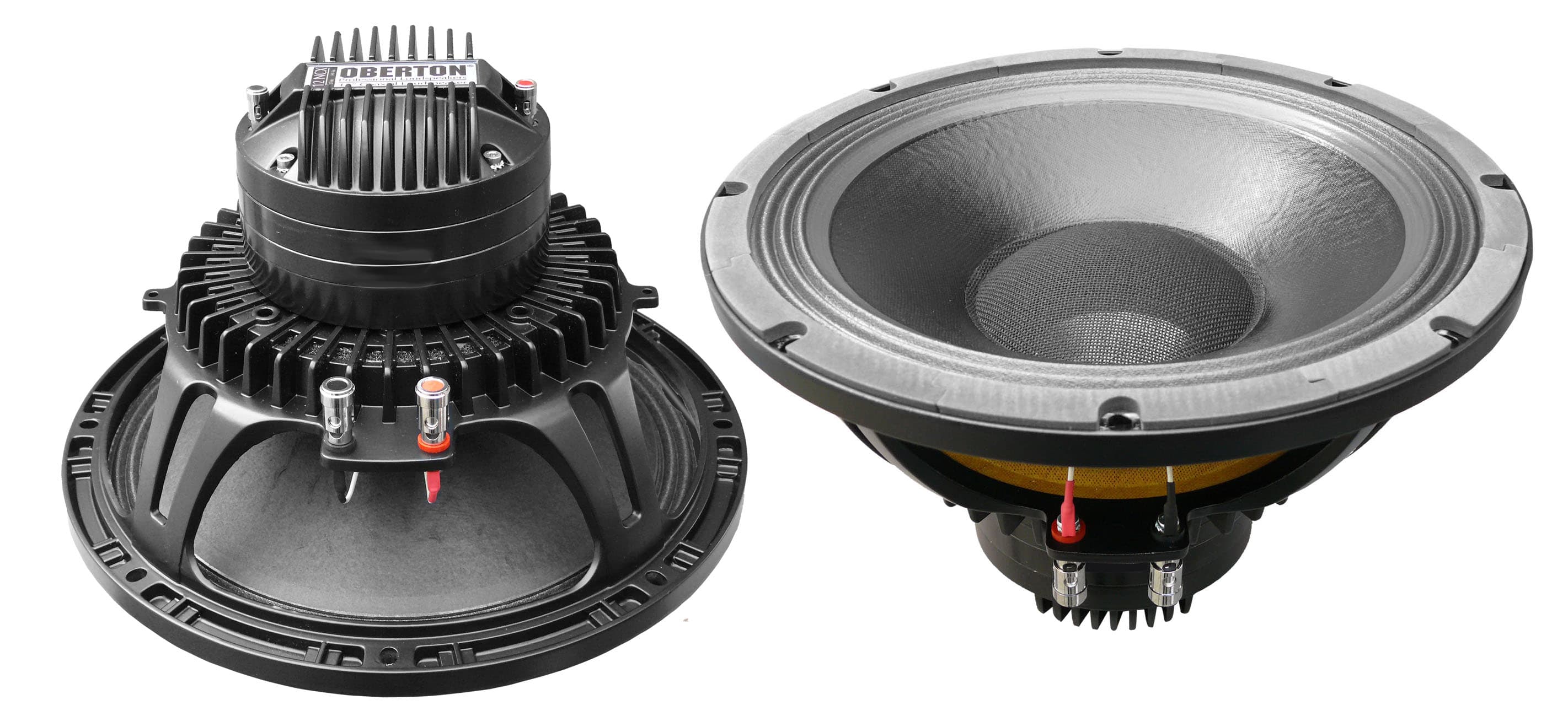

Oberton12NCX
No current priceFs58 Hz +16%, worse
Qts0.30 –
Vas62.9 L +10%, worse
BL17.2 T·m −8%
Xmax5.3 mm −13%, worse
Sensitivity98.1 dB +2.6, better
LavoceCAN143.00T
No current priceFs44 Hz −12%, better
Qts0.30 –
Vas122.3 L +115%, worse
BL18.8 T·m –
Xmax6 mm –
Sensitivity97.3 dB +1.8
CelestionTSQ1230
No current priceFs55 Hz +10%, worse
Qts0.30 –
Vas45.2 L −21%, better
BL20.5 T·m +10%
Xmax6.8 mm +13%, better
Sensitivity95.8 dB –
CIARECSD124-22
No current priceFs34 Hz −32%, better
Qts0.30 –
Vas54 L −5%
BL18.2 T·m –
Xmax13 mm +117%, better
Sensitivity90.2 dB −5.3, worse
MonacorFTR12-3070C/8
No current priceFs65 Hz +30%, worse
Qts0.32 +7%
Vas43.7 L −23%, better
BL18.6 T·m –
Xmax5.5 mm −8%
Sensitivity97.3 dB +1.8
Oberton12HCX
No current priceFs53 Hz +5%
Qts0.33 +11%, worse
Vas55.5 L –
BL17.8 T·m −5%
Xmax5.3 mm −13%, worse
Sensitivity95.6 dB –
CelestionNTR12-3018D
No current priceFs59 Hz +18%, worse
Qts0.30 –
Vas50.4 L −12%, better
BL19.9 T·m +6%
Xmax4 mm −33%, worse
Sensitivity97 dB +1.5
CelestionCF1230F
No current priceFs57 Hz +13%, worse
Qts0.32 +6%
Vas49.6 L −13%, better
BL18.3 T·m –
Xmax7.5 mm +25%, better
Sensitivity96.2 dB +0.7
P.Audio12NX-76MB
No current priceFs55 Hz +10%, worse
Qts0.31 +3%
Vas50.3 L −12%, better
BL21.4 T·m +14%, better
Xmax4.8 mm −21%, worse
Sensitivity96.3 dB +0.8
