Oberton 12NCX 8Ω
8 Ω · 60–16000 Hz
No current price
- Fs
- 58Hz
- Xmax
- 5.3mm
- SPL
- 98dB
- Pe
- 350W
- BL
- 17.2T·m
- Vd
- 270cm³
- Qts
- 0.30
- Vas
- 63L

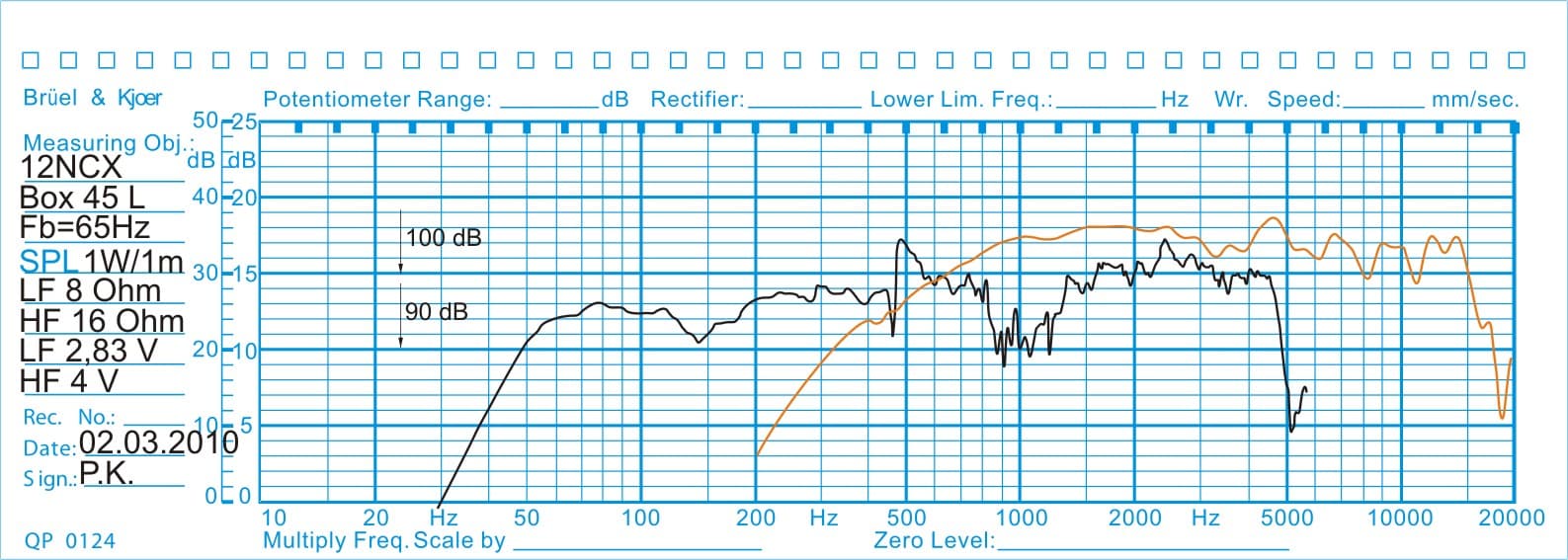

Published graphs
Oberton 12NCX is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.30, Vas 62.9 L, Xmax 5.3 mm, sensitivity 98.1 dB, plus 270 cm³ Vd and 188 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 6.2
- Vas
- 62.9L
- Re
- 5.7Ω
- Le
- 0.58mH
Motor and cone
- BL
- 17.2T·m
- Sd
- 515cm²
- Mms
- 44g
- Xmax
- 5.3mm
- Vd †
- 270cm³
- Voice coil
- 77mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 98.1dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 60–16000Hz
- EBP †
- 188 · Leans vented

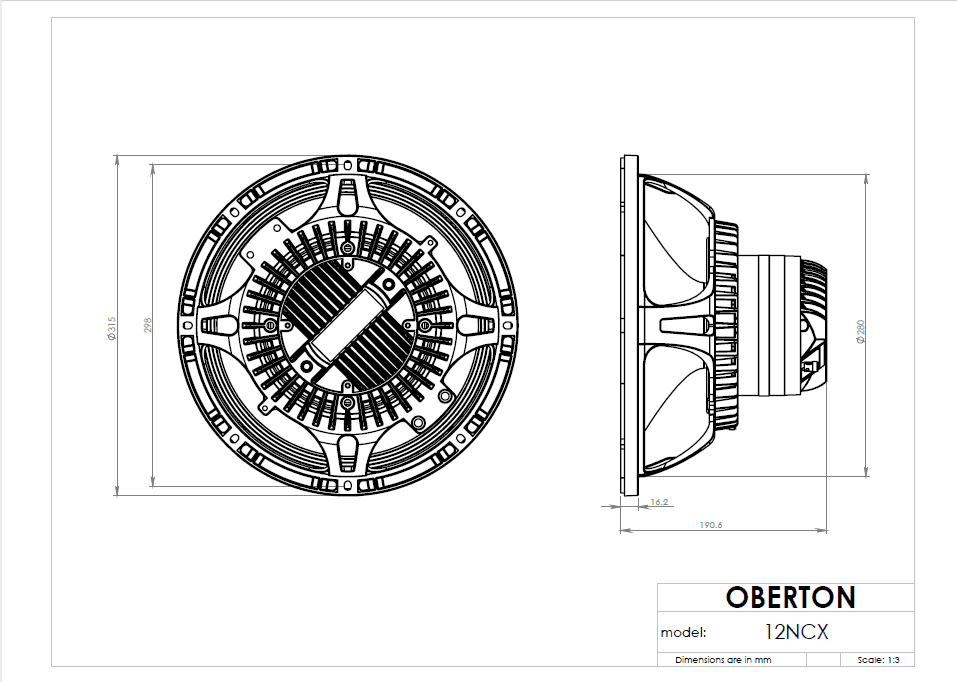

Size and mounting
- Diameter
- 315mm
- Cutout
- 280mm
- Bolt circle
- 298mm
- Depth
- 190.6mm
- Weight
- 5.4kg
Other published values
- Cms
- 0.17mm/N
- Power Program
- 700
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 17.2T·m
- Fs
- 58Hz
- Le
- 0.58mH
- Re
- 5.7Ω
- Sd
- 515cm²
- Cms
- 0.17mm/N
- Mms
- 44g
- Qes
- 0.31
- Qms
- 6.2
- Qts
- 0.30
- SPL
- 98.1dB
- Vas
- 62.9L
- Xmax
- 5.3mm
- Power
- 350W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Low limit
- 60Hz
- Power Program
- 700
- Calculated sensitivity †
- 98.1dB
- High limit
- 16000Hz
- Voice coil
- 77mm
- Weight
- 5.4kg
- Diameter
- 315mm
- Depth
- 190.6mm
- Cutout
- 280mm
- Bolt circle
- 298mm
