Overview
LF Driver
Sica

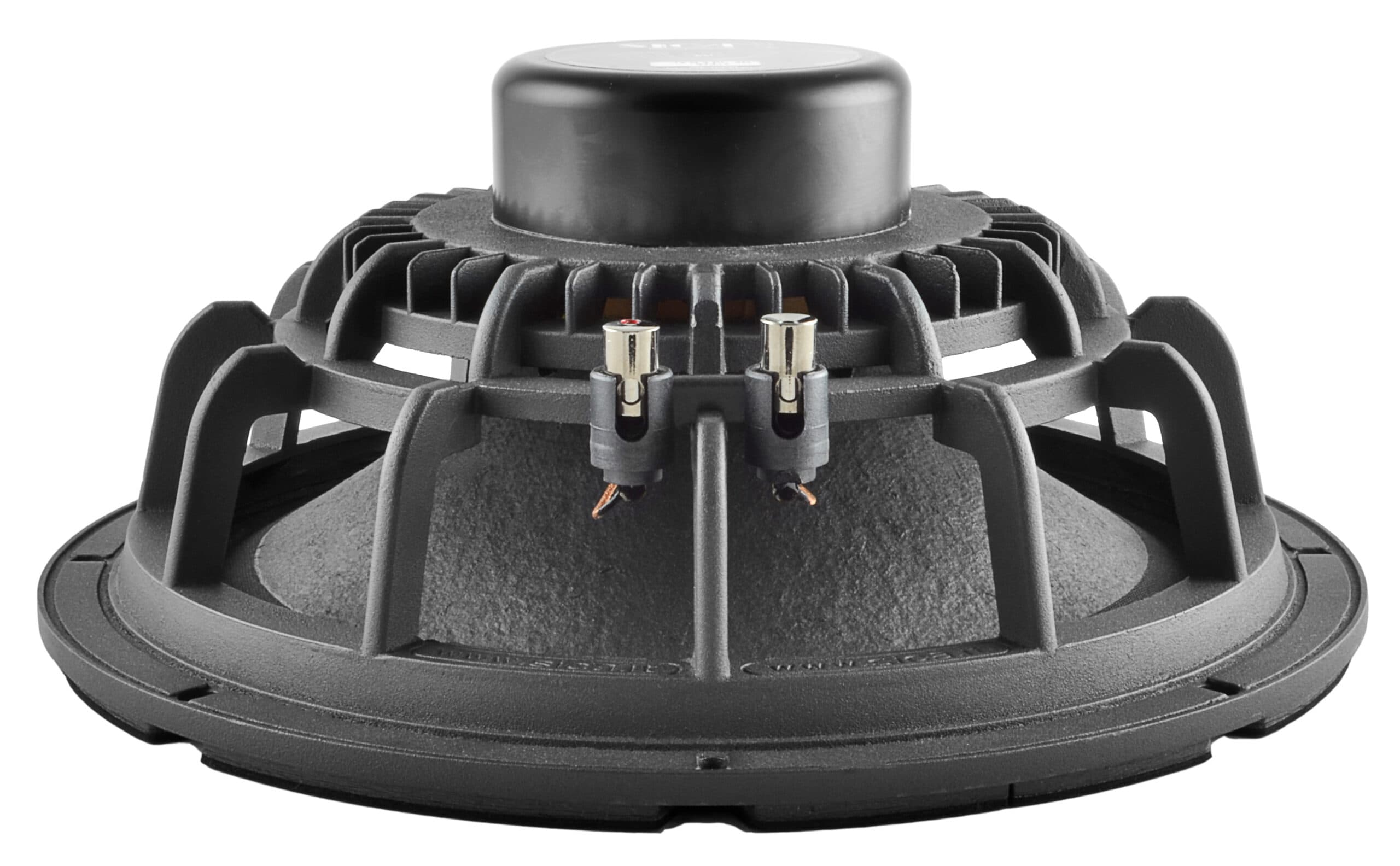

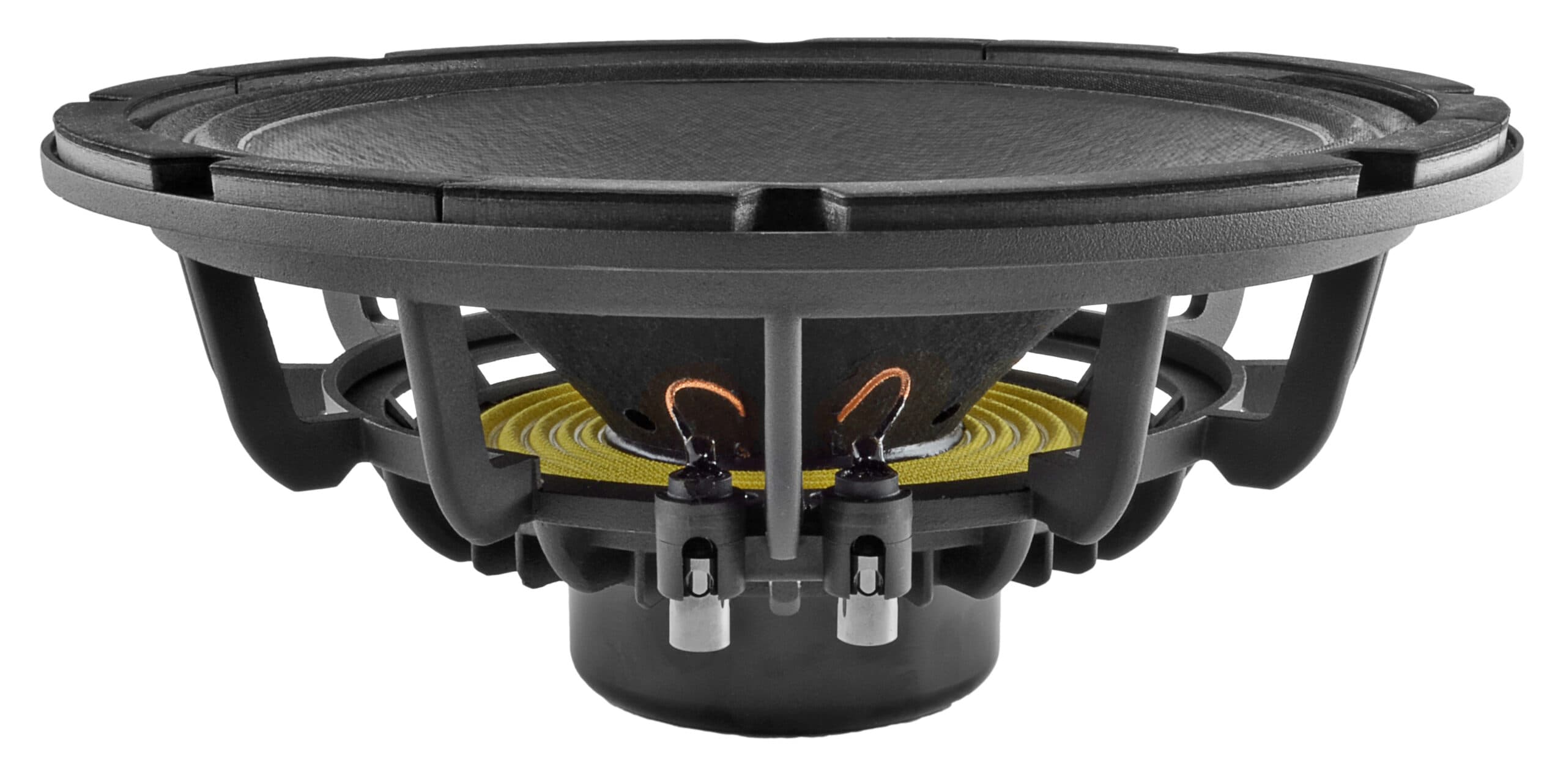

Sica 12 N 3 PL
Sica 12 N 3 PL is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 46Hz, Qts 0.30, Vas 87.9L, Xmax 5.5mm, sensitivity 96.4dB, plus 292cm³ Vd and 148 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.4dB
98.5dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
148
Vented alignment
Vd
292cm³
T/S Parameters
Valid
Fs46Hz
Qts0.30
Qes0.31
Qms7.5
Vas87.9L
Re5.0Ω
Le0.80mH
BL16.0Tm
Sd531cm²
Mms57g
Xmax5.5mm
SPL96dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.18T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter320.0mm
Overall Depth135.4mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 N 3 PL
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
Oberton
12NCX
12"
Xmax5.3mm-5%
Qts0.30%
BL17.2Tm+7%
Vas62.9L-28%
Qes0.310%
86%
Similarity
£426.63
Eighteen Sound
12NCX750
12"
Xmax5.5mm0%
Qts0.29-3%
BL17.5Tm+9%
Vas63L-28%
Qes0.310%
86%
Similarity
£444.75
Eighteen Sound
12NCX750H
12"
Xmax5.5mm0%
Qts0.29-3%
BL17.5Tm+9%
Vas63L-28%
Qes0.310%
85%
Similarity
£122.29
Beyma
12WRS400
12"
Xmax6.3mm+15%
Qts0.29-3%
BL17.4Tm+9%
Vas91L+4%
Qes0.310%
85%
Similarity
PRV Audio
12MB2000FT-NDY
12"
Xmax6mm+9%
Qts0.30%
BL17.7Tm+11%
Vas71.5L-19%
Qes0.310%
84%
Similarity
Dayton Audio
PA310-8
12"
Xmax5mm-9%
Qts0.29-3%
BL18Tm+13%
Vas91.8L+4%
Qes0.3-3%
84%
Similarity
£187.23
Eminence
KAPPALITE 3012HO
12"
Xmax6.2mm+13%
Qts0.32+7%
BL15.9Tm-1%
Vas81.1L-8%
Qes0.33+6%
83%
Similarity
£136.93
B&C
12FW64
12"
Xmax5mm-9%
Qts0.29-3%
BL15.5Tm-3%
Vas64L-27%
Qes0.32+3%
81%
Similarity
£129.00
Fane
SOVEREIGN PRO 12-500
12"
Xmax6mm+9%
Qts0.31+5%
BL16Tm0%
Vas107L+22%
Qes0.35+13%
78%
Similarity
£294.14
B&C
12FCX76
12"
Xmax5mm-9%
Qts0.34+13%
BL15.6Tm-3%
Vas82L-7%
Qes0.35+13%
77%
Similarity
Fane
COLOSSUS 12MB
12"
Xmax5.5mm0%
Qts0.29-5%
BL18.3Tm+14%
Vas56L-36%
Qes0.33+7%
77%
Similarity
£78.54
B&C
12CL64
12"
Xmax4.5mm-18%
Qts0.30%
BL17.5Tm+9%
Vas64L-27%
Qes0.32+3%
