Overview
LF Driver
Fane

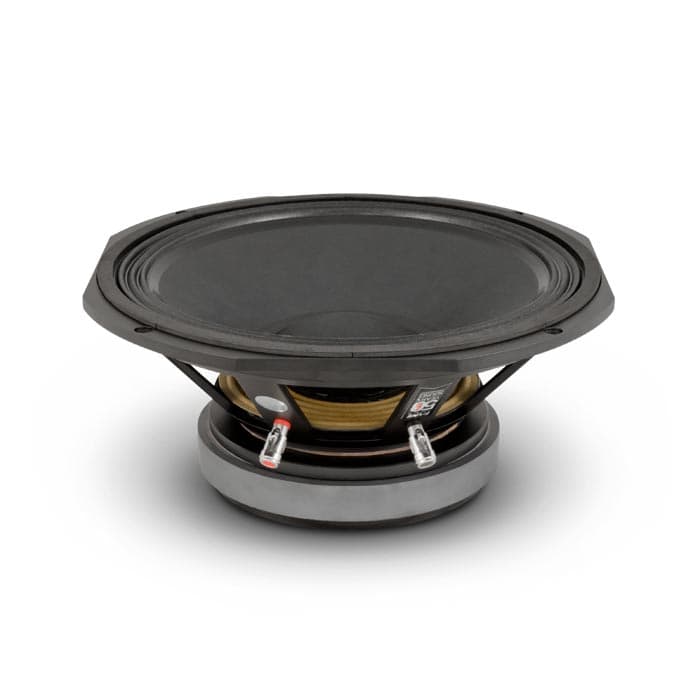

Fane COLOSSUS 12MB
Fane COLOSSUS 12MB is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 55Hz, Qts 0.29, Vas 56L, Xmax 5.5mm, sensitivity 96.5dB, plus 292cm³ Vd and 165 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.5dB
98.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
165
Vented alignment
Vd
292cm³
T/S Parameters
Valid
Fs55Hz
Qts0.29
Qes0.33
Qms2.0
Vas56.0L
Re5.5Ω
Le1.56mH
BL18.3Tm
Sd530cm²
Mms59g
Xmax5.5mm
SPL97dB
Power500W
Impedance8Ω
F Low40Hz
F High3500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight17.1kg
Diameter330.2mm
Overall Depth131.3mm
