Overview
LF Driver
CIARE
CIARE 12.75W1
CIARE 12.75W1 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 49Hz, Qts 0.33, Vas 67L, Xmax 6mm, sensitivity 95.7dB, plus 326cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.7dB
97.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
144
Vented alignment
Vd
326cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,525 selected pixels of 2,618
T/S Parameters
Valid
Fs49Hz
Qts0.33
Qes0.34
Qms15.0
Vas67.0L
Re5.9Ω
Le1.60mH
BL18.9Tm
Sd543cm²
Mms65g
Xmax6.0mm
SPL96dB
Power700W
Power Nominal350W
Impedance8Ω
F Low45Hz
F High2000Hz
Voice Coil75mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£127.36
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.4kg
Diameter315.0mm
Overall Depth146.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter295.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
12.75W1
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
PRV Audio
12MB2000FT
12"
Xmax6mm0%
Qts0.32-3%
BL17.7Tm-6%
Vas66.9L0%
Qes0.33-3%
87%
Similarity
B&C
12FL76
12"
Xmax6mm0%
Qts0.3-9%
BL18.7Tm-1%
Vas57L-15%
Qes0.32-6%
86%
Similarity
£99.00
Celestion
TF1225E
12"
Xmax5.3mm-12%
Qts0.33+1%
BL17.7Tm-7%
Vas67.7L+1%
Qes0.37+8%
85%
Similarity
PRV Audio
12MB2000FT-NDY
12"
Xmax6mm0%
Qts0.3-9%
BL17.7Tm-6%
Vas71.5L+7%
Qes0.31-9%
84%
Similarity
Celestion
CNX1230
12"
Xmax6.5mm+8%
Qts0.34+2%
BL16.3Tm-14%
Vas68.4L+2%
Qes0.36+6%
84%
Similarity
Monacor
TF1225E/8
12"
Xmax5mm-17%
Qts0.33+1%
BL17.7Tm-7%
Vas67L0%
Qes0.37+8%
83%
Similarity

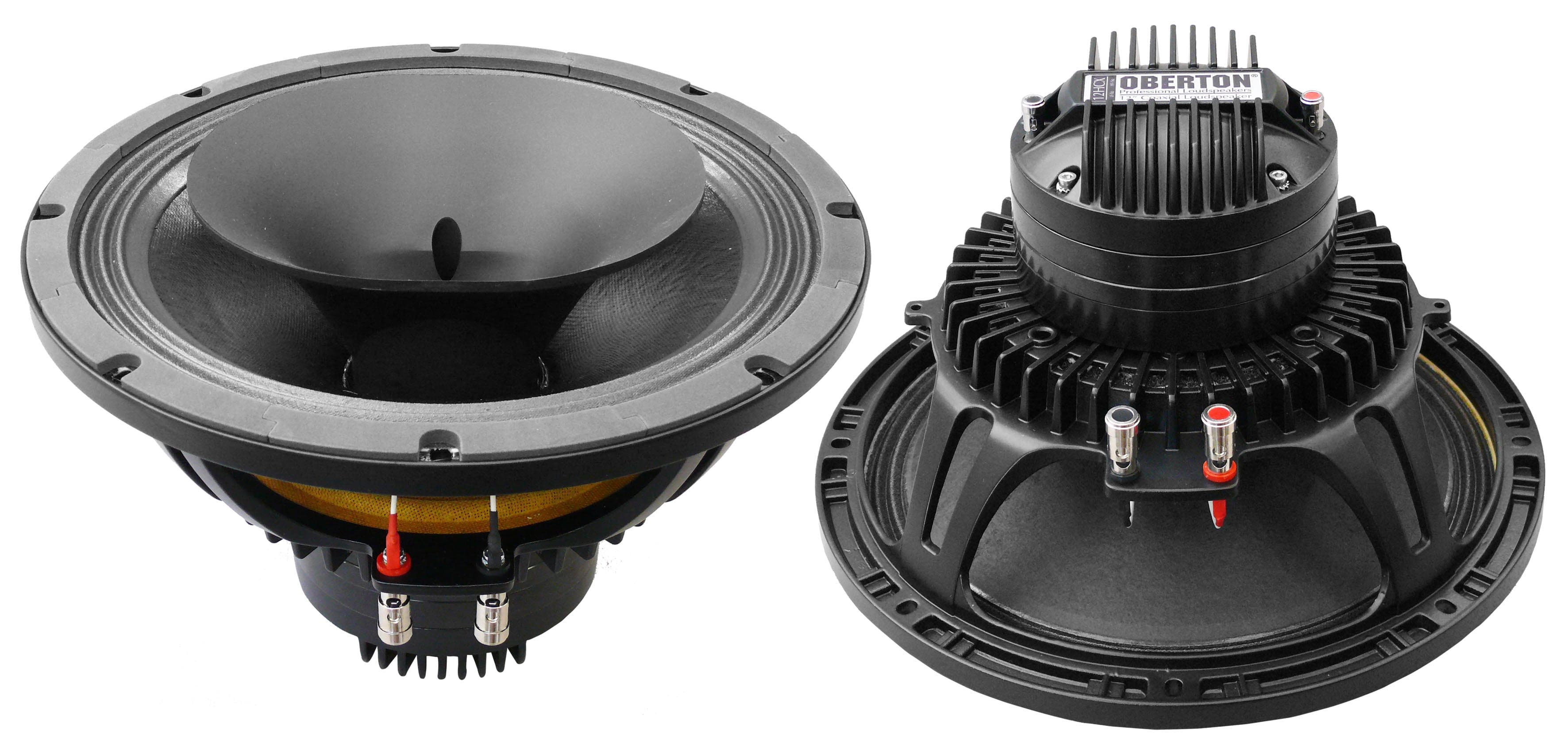

Oberton
