CelestionTF1225E
£99.00Fs53 Hz +25%, worse
Qts0.33 –
Vas67.7 L −12%, better
BL17.7 T·m +5%
Xmax5.3 mm −25%, worse
Sensitivity96.3 dB +2.3, better
12-inch LF driver · 75 mm voice coil · 400 W
Sica 12 S 3 PL 8Ω
8 Ω
No current price
- Fs
- 42Hz
- Xmax
- 7mm
- SPL
- 94dB
- Pe
- 400W
- BL
- 16.8T·m
- Vd
- 372cm³
- Qts
- 0.34
- Vas
- 77L
Sica 12 S 3 PL is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.34, Vas 76.9 L, Xmax 7 mm, sensitivity 94 dB, plus 372 cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.34
- Qes
- 0.36
- Qms
- 6.1
- Vas
- 76.9L
- Re
- 5.2Ω
- Le
- 1.04mH
Motor and cone
- BL
- 16.8T·m
- Sd
- 531cm²
- Mms
- 75g
- Xmax
- 7mm
- Vd †
- 372cm³
- Voice coil
- 75mm
- Flux density
- 1.22T
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 95.8dB
- Power
- 400W
- Impedance
- 8Ω
- EBP †
- 117 · Leans vented
Size and mounting
- Diameter
- 320mm
- Cutout
- 284mm
- Bolt circle
- 301mm
- Depth
- 139.4mm
- Weight
- 3.5kg
Other published values
- Cms
- 0.19mm/N
- Power Program
- 800
Sensitivity shows 94.0 dB, calculated from the T/S values. Sica publishes 95.8 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 12″
- BL
- 16.8T·m
- Fs
- 42Hz
- Le
- 1.04mH
- Re
- 5.2Ω
- Sd
- 531cm²
- Cms
- 0.19mm/N
- Mms
- 75g
- Qes
- 0.36
- Qms
- 6.1
- Qts
- 0.34
- SPL
- 94dB
- Vas
- 76.9L
- Xmax
- 7mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.22T
- Sensitivity
- 95.8dB
- Power Program
- 800
- Calculated sensitivity †
- 94dB
- Manufacturer sensitivity
- 95.8dB
- Voice coil
- 75mm
- Weight
- 3.5kg
- Diameter
- 320mm
- Depth
- 139.4mm
- Cutout
- 284mm
- Bolt circle
- 301mm
02
Compare
Same-size drivers, compared with the 12 S 3 PL. Clear differences are green when better and red when worse.
This driver12 S 3 PL
Best price
–
Fs
42 Hz
Qts
0.34
Vas
76.9 L
BL
16.8 T·m
Xmax
7 mm
Sensitivity
94 dB
Power
400 W
PRV Audio12MB1000FT
£119.17Fs53 Hz +26%, worse
Qts0.37 +9%
Vas74.6 L −3%
BL16.5 T·m –
Xmax6.9 mm –
Sensitivity96.6 dB +2.6, better
Beyma12MC500
£150.59Fs57 Hz +36%, worse
Qts0.34 –
Vas57 L −26%, better
BL18.3 T·m +9%
Xmax8 mm +14%, better
Sensitivity96.8 dB +2.8, better
Beyma12G40
£153.44Fs44 Hz +5%
Qts0.30 −12%, better
Vas81 L +5%
BL18.4 T·m +10%
Xmax7 mm –
Sensitivity95.6 dB +1.6
Eighteen Sound12W700
£179.00Fs58 Hz +38%, worse
Qts0.36 +6%
Vas55 L −28%, better
BL17.7 T·m +5%
Xmax6.5 mm −7%
Sensitivity96.7 dB +2.7, better
EminenceKAPPALITE 3012HO
£186.30Fs52 Hz +24%, worse
Qts0.32 −6%
Vas81.1 L +5%
BL15.9 T·m −5%
Xmax6.2 mm −11%, worse
Sensitivity97.4 dB +3.4, better
FaitalPRO12FH520
£197.50Fs50 Hz +19%, worse
Qts0.29 −15%, better
Vas73.7 L −4%
BL17.3 T·m –
Xmax7.3 mm +4%
Sensitivity96.9 dB +2.9, better
LavoceCAF123.00T
£257.42Fs53 Hz +26%, worse
Qts0.36 +6%
Vas71.4 L −7%
BL15.2 T·m −10%
Xmax6 mm −14%, worse
Sensitivity96.4 dB +2.4, better
LavoceCAF123.00TH
£267.70Fs53 Hz +26%, worse
Qts0.36 +6%
Vas71.4 L −7%
BL15.2 T·m −10%
Xmax6 mm −14%, worse
Sensitivity96.4 dB +2.4, better
BMS12N630
£283.33Fs29 Hz −32%, better
Qts0.33 –
Vas85.5 L +11%, worse
BL19.8 T·m +18%, better
Xmax8 mm +14%, better
Sensitivity89.6 dB −4.4, worse
B&C12FCX76
£294.14Fs47 Hz +12%, worse
Qts0.34 –
Vas82 L +7%
BL15.6 T·m −7%
Xmax5 mm −29%, worse
Sensitivity95.9 dB +1.9
FaitalPRO12HX240
£325.11Fs56 Hz +33%, worse
Qts0.37 +9%
Vas61.1 L −21%, better
BL16 T·m −5%
Xmax7.4 mm +5%
Sensitivity96.5 dB +2.5, better
CelestionCNX1230
No current priceFs54 Hz +28%, worse
Qts0.34 –
Vas68.4 L −11%, better
BL16.3 T·m –
Xmax6.5 mm −7%
Sensitivity96.8 dB +2.8, better
Eighteen Sound12NTLX3500
No current priceFs39 Hz −7%
Qts0.33 –
Vas79.6 L +4%
BL17.1 T·m –
Xmax7.9 mm +13%, better
Sensitivity93.3 dB −0.7
FaneCOLOSSUS 12MBH
No current priceFs48 Hz +14%, worse
Qts0.34 –
Vas75 L –
BL17.5 T·m +4%
Xmax6 mm −14%, worse
Sensitivity95.8 dB +1.8
Eighteen Sound12MB606
No current priceFs50 Hz +19%, worse
Qts0.32 −6%
Vas84 L +9%
BL16 T·m −5%
Xmax6.5 mm −7%
Sensitivity96.9 dB +2.9, better
Oberton12NMB35
No current priceFs54 Hz +30%, worse
Qts0.36 +6%
Vas54.3 L −29%, better
BL17 T·m –
Xmax6.8 mm −4%
Sensitivity95.7 dB +1.7
CIAREHSB322
No current priceFs36 Hz −14%, better
Qts0.37 +9%
Vas83 L +8%
BL17 T·m –
Xmax7.5 mm +7%
Sensitivity91.9 dB −2.1, worse
MonacorSP-12A/302PA
No current priceFs50 Hz +19%, worse
Qts0.34 –
Vas77 L –
BL17.0 T·m –
Xmax5 mm −29%, worse
Sensitivity96.4 dB +2.4, better

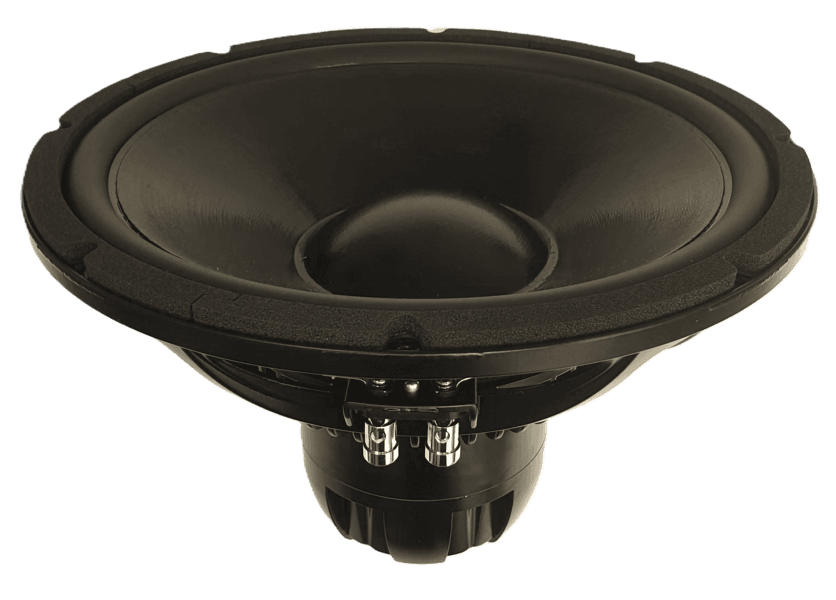

Eighteen Sound12NTLS3500
No current priceFs41 Hz –
Qts0.34 –
Vas63 L −18%, better
BL14.5 T·m −14%, worse
Xmax7.9 mm +13%, better
Sensitivity92.8 dB −1.2
No photo
PHL Audio4021
No current priceFs35 Hz −17%, better
Qts0.35 –
Vas70 L −9%
BL20.5 T·m +22%, better
Xmax7.5 mm +7%
Sensitivity91.2 dB −2.8, worse
REDCATT121XR
No current priceFs46 Hz +10%
Qts0.33 –
Vas69.1 L −10%, better
BL16 T·m −5%
Xmax6.3 mm −9%
Sensitivity94.1 dB –
Eighteen Sound12W600
No current priceFs50 Hz +19%, worse
Qts0.30 −12%, better
Vas73 L −5%
BL17.3 T·m –
Xmax6.5 mm −7%
Sensitivity96.6 dB +2.6, better
PRV Audio12MB2000FT
No current priceFs56 Hz +32%, worse
Qts0.32 −6%
Vas66.9 L −13%, better
BL17.7 T·m +6%
Xmax6 mm −14%, worse
Sensitivity97.5 dB +3.5, better
CIARE12.75W1
No current priceFs49 Hz +17%, worse
Qts0.33 –
Vas67 L −13%, better
BL18.9 T·m +12%, better
Xmax6 mm −14%, worse
Sensitivity95.7 dB +1.7
P.Audio12BMA-500B
No current priceFs57 Hz +36%, worse
Qts0.34 –
Vas61.4 L −20%, better
BL16.7 T·m –
Xmax5 mm −29%, worse
Sensitivity97 dB +3, better
P.Audio12BM-300B-V3
No current priceFs55 Hz +31%, worse
Qts0.34 –
Vas62.4 L −19%, better
BL17.1 T·m –
Xmax3.9 mm −44%, worse
Sensitivity96.6 dB +2.6, better
P.Audio12BM-400B
No current priceFs55 Hz +31%, worse
Qts0.34 –
Vas62.4 L −19%, better
BL17.1 T·m –
Xmax3.9 mm −44%, worse
Sensitivity96.6 dB +2.6, better
P.Audio12BM-500B
No current priceFs52 Hz +24%, worse
Qts0.35 –
Vas69.8 L −9%
BL16.6 T·m –
Xmax4.8 mm −31%, worse
Sensitivity96.3 dB +2.3, better
MonacorSP-312CX
No current priceFs55 Hz +31%, worse
Qts0.33 –
Vas64 L −17%, better
BL16.9 T·m –
Xmax3 mm −57%, worse
Sensitivity96.7 dB +2.7, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
