Overview
LF Driver
PRV Audio
PRV Audio 12MB1000FT
PRV Audio 12MB1000FT is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 53Hz, Qts 0.37, Vas 74.6L, Xmax 6.9mm, sensitivity 96.6dB, plus 394cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.6dB
EBP
139
Vented alignment
Vd
394cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.37
Qes0.38
Qms13.3
Vas74.6L
Re5.7Ω
Le1.00mH
BL16.5Tm
Sd573cm²
Mms56g
Xmax6.9mm
SPL97dB
Power500W
Impedance8Ω
F Low70Hz
F High3200Hz
Xover110Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.6kg
Diameter315.0mm
Overall Depth146.5mm
Cutout Diameter282.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
12MB1000FT
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
£308.45
FaitalPRO
12HX240
12"
Xmax7.4mm+7%
Qts0.370%
BL16Tm-3%
Vas61.1L-18%
Qes0.380%
88%
Similarity
Oberton
12NMB35
12"
Xmax6.8mm-2%
Qts0.36-3%
BL17Tm+3%
Vas54.3L-27%
Qes0.380%
88%
Similarity

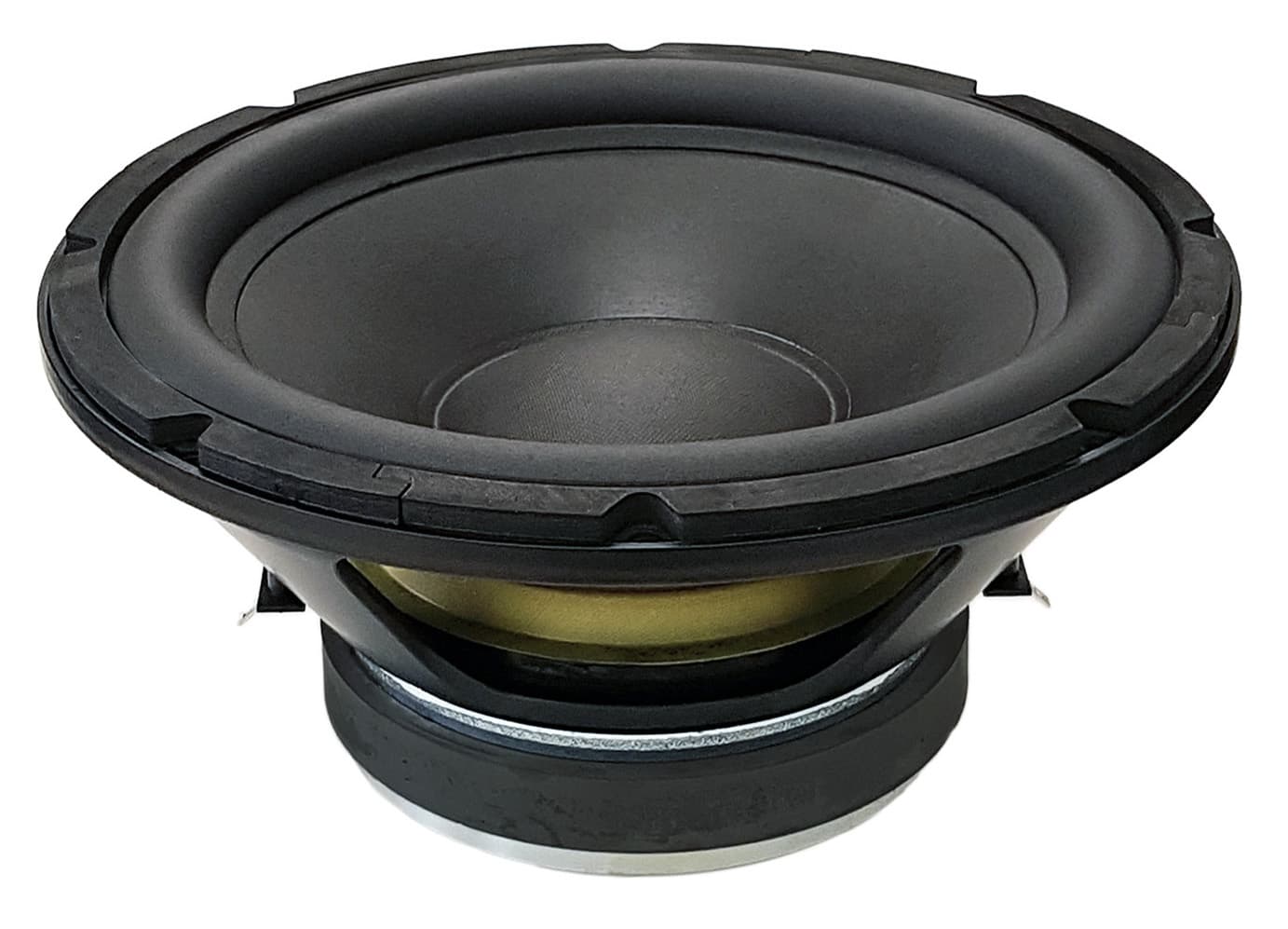

CIARE
