LF DriverNERO series
SB Audience
SB Audience NERO-12MWN700D
SB Audience NERO-12MWN700D is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 53Hz, Qts 0.38, Vas 52.5L, Xmax 7.3mm, sensitivity 94.9dB, plus 397cm³ Vd and 132 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £179.95.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.9dB
EBP
132
Vented alignment
Vd
397cm³

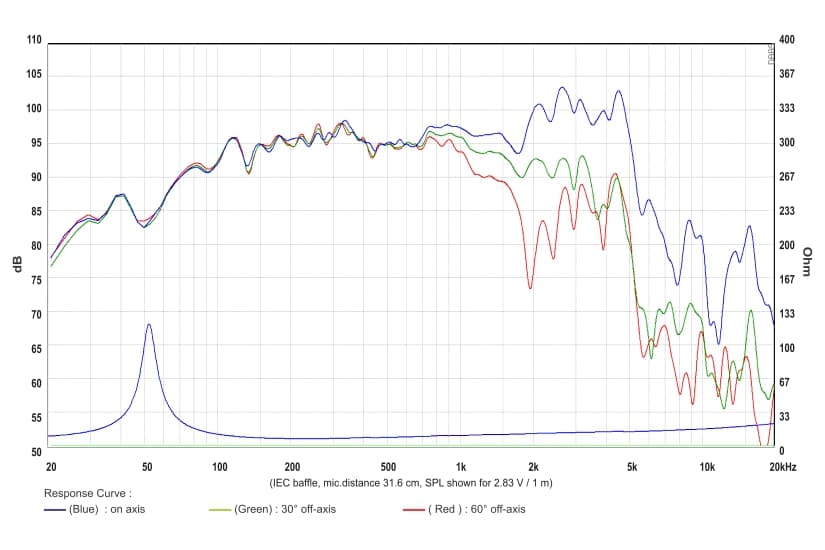

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.38
Qes0.40
Qms8.9
Vas52.5L
Re5.3Ω
Le0.32mH
BL17.9Tm
Sd543cm²
Mms73g
Xmax7.3mm
SPL95dB
Power700W
Impedance8Ω
Min Impedance5.2Ω
F Low52Hz
F High6300Hz
Voice Coil76mm
Flux Density1.07T
Pricing & availability
Price definitionsPrice movement
Best current price
£179.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

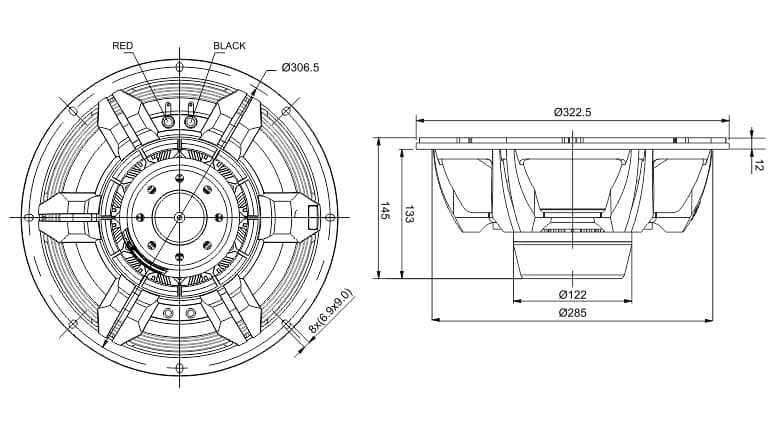

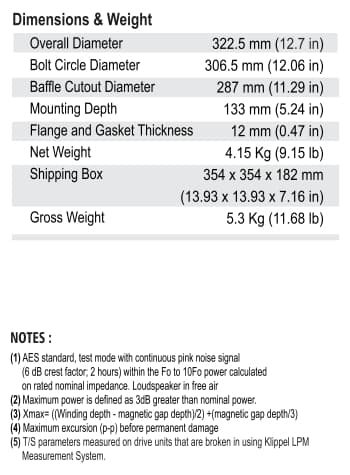

Dimensions & Physical
Weight4.2kg
Diameter322.5mm
Cutout Diameter287.0mm
Bolt Circle Diameter306.5mm
