Overview
LF Driver
Eighteen Sound
Eighteen Sound 12NLW9300

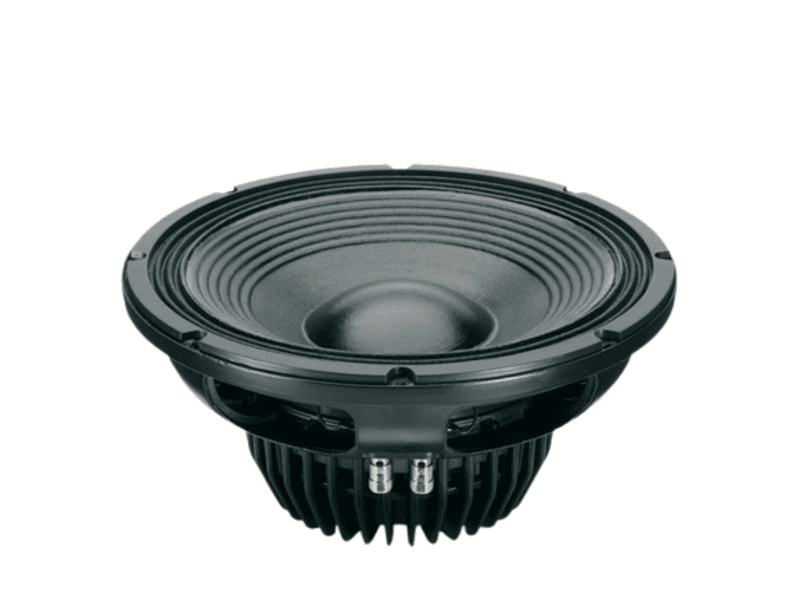

Eighteen Sound 12NLW9300 is a 12" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 47Hz, Qts 0.42, Vas 56L, Xmax 8mm, sensitivity 93.1dB, plus 425cm³ Vd and 104 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £274.84.
Size
12"
Impedance
8Ω
RMS Power
800W
Sensitivity
93.1dB
97.0dBmanufacturer; using T/S-derived value (3.9dB delta).
EBP
104
Vented alignment
Vd
425cm³

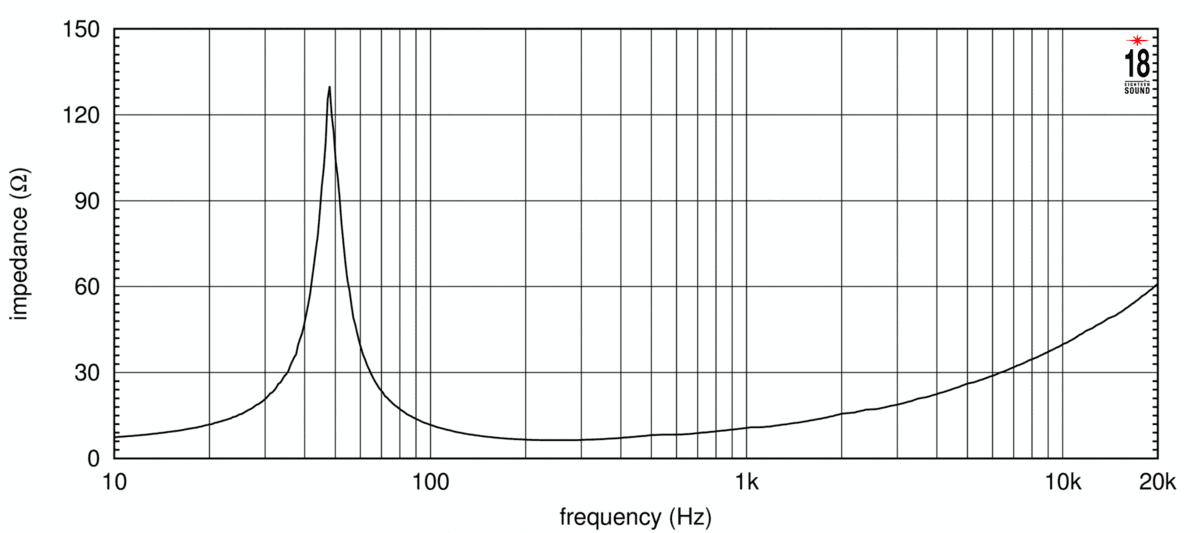

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,010 selected pixels of 2,010
T/S Parameters
Valid
Fs47Hz
Qts0.42
Qes0.45
Qms5.5
Vas56.0L
Re4.7Ω
Le0.53mH
BL17.0Tm
Sd531cm²
Mms82g
Xmax8.0mm
SPL93dB
Power800W
Power Nominal800W
Impedance8Ω
F Low45Hz
F High3200Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£274.84
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.2kg
Diameter315.0mm
Overall Depth153.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
