Overview
LF Driver
Sica

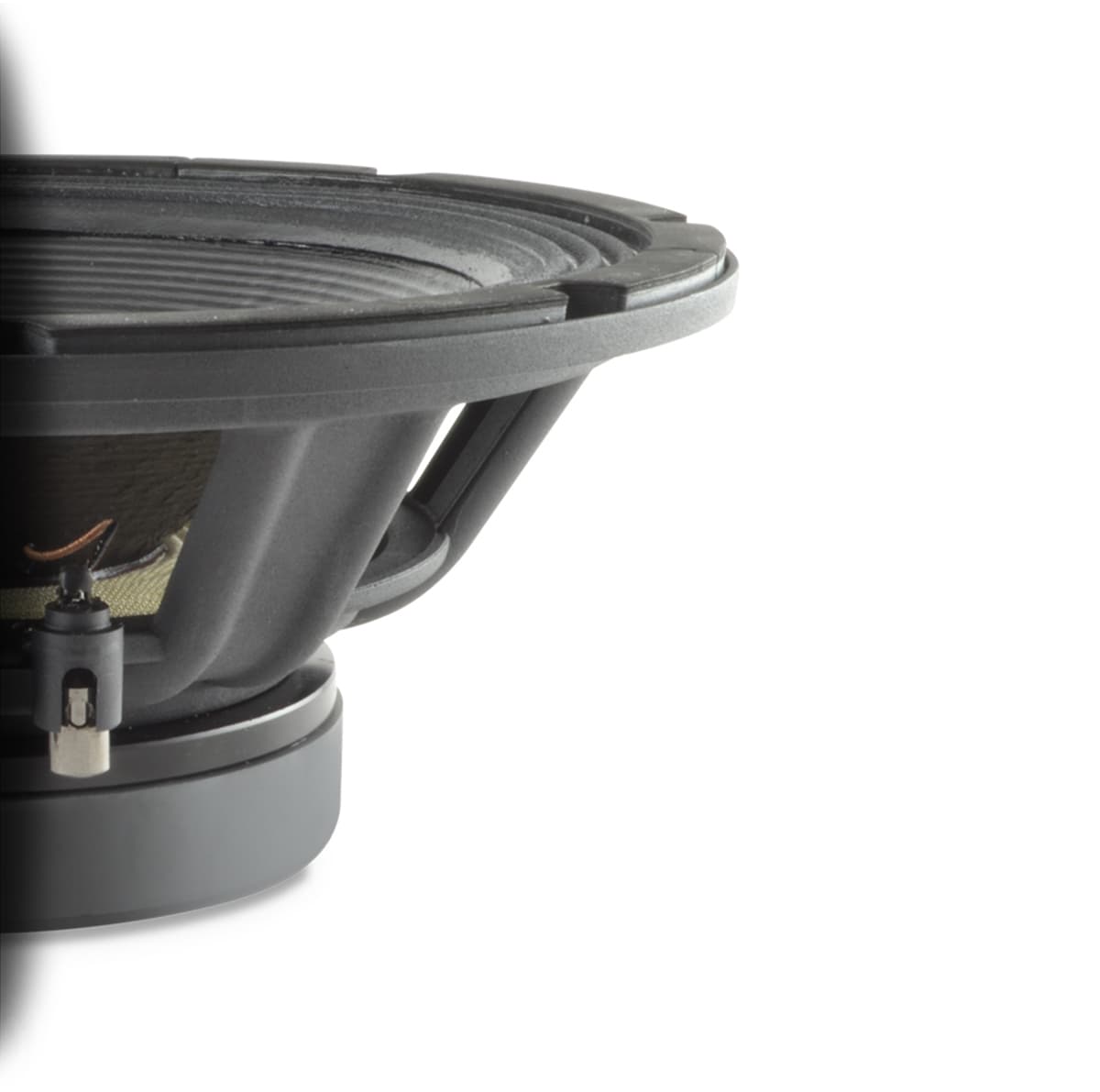

Sica 12 PFS 3
Sica 12 PFS 3 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 43Hz, Qts 0.47, Vas 58.5L, Xmax 7mm, sensitivity 91.6dB, plus 372cm³ Vd and 84 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
91.6dB
93.6dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
84
Either alignment
Vd
372cm³
T/S Parameters
Valid
Fs43Hz
Qts0.47
Qes0.51
Qms5.3
Vas58.5L
Re5.1Ω
Le1.07mH
BL15.9Tm
Sd531cm²
Mms94g
Xmax7.0mm
SPL92dB
Power500W
Impedance8Ω
Voice Coil75mm
Flux Density1.04T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.7kg
Diameter320.0mm
Overall Depth141.3mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 PFS 3
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£68.29
SB Audience
BIANCO-12MW200
12"
Xmax7mm0%
Qts0.49+4%
BL14.7Tm-7%
Vas62.9L+8%
Qes0.510%
84%
Similarity

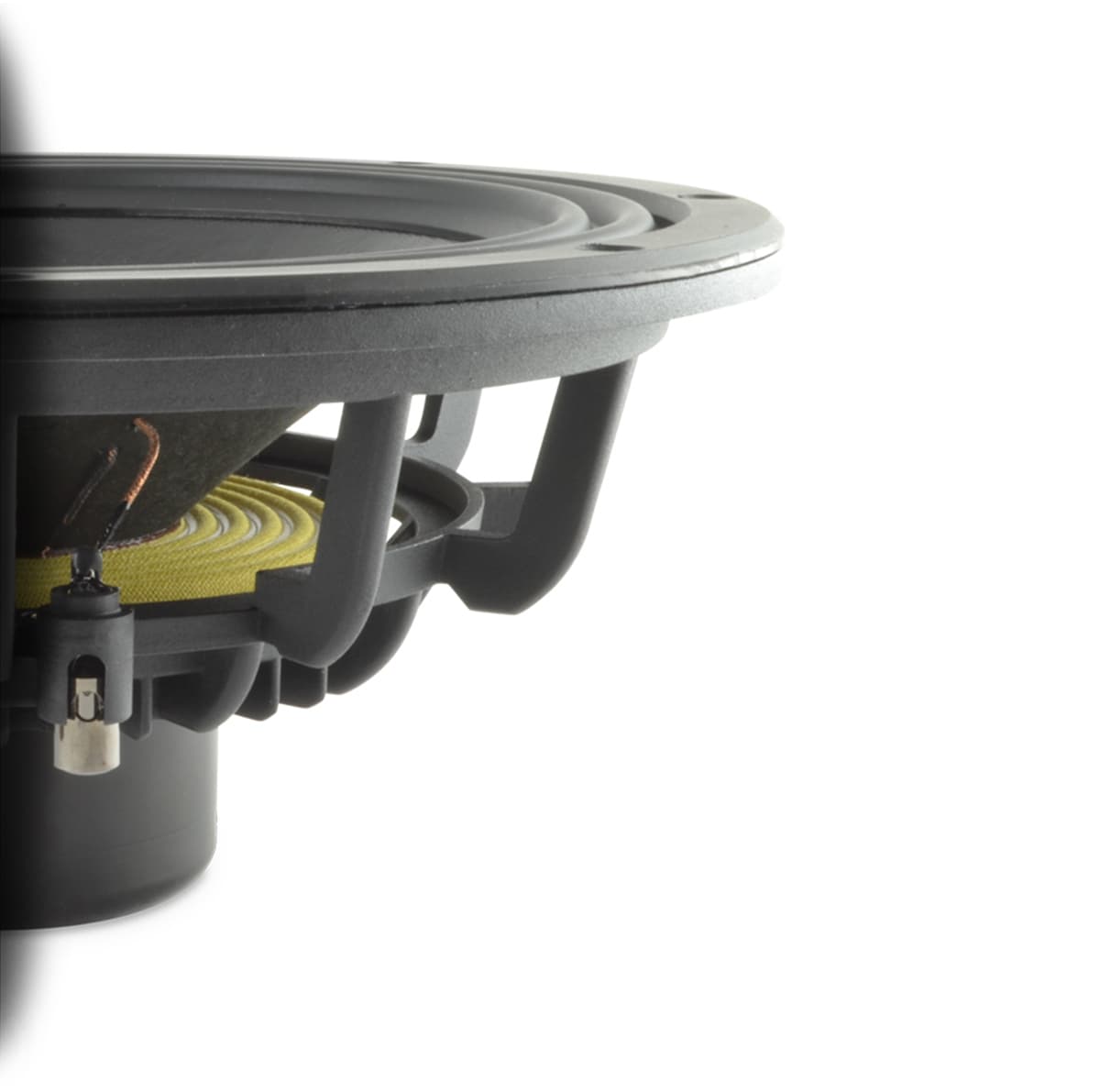

Sica
12 SR 3 PL
12"
Xmax7mm0%
Qts0.42-11%
BL17Tm+7%
Vas60.4L+3%
Qes0.45-12%
80%
Similarity
£226.00
Visaton
PAW 30 ND
12"
Xmax9mm+29%
Qts0.46-2%
BL15.4Tm-3%
Vas55.4L-5%
Qes0.510%
80%
Similarity
Visaton
PAW 30 ND - 8 OHM
12"
Xmax9mm+29%
Qts0.46-2%
BL15.4Tm-3%
Vas55.4L-5%
Qes0.510%
78%
Similarity
£250.31
FaitalPRO
12HX230
12"
Xmax7.4mm+5%
Qts0.43-9%
BL14.1Tm-11%
Vas67.7L+16%
Qes0.46-10%
76%
Similarity
Fane
SOVEREIGN 12-500LF
12"
Xmax5.5mm-21%
Qts0.51+9%
BL16.4Tm+3%
Vas66L+13%
Qes0.53+4%
76%
Similarity
£274.84
Eighteen Sound
12NLW9300
12"
Xmax8mm+14%
Qts0.42-11%
BL17Tm+7%
Vas56L-4%
Qes0.45-12%
Image unavailable
76%
Similarity
PHL Audio
4511
12"
Xmax7mm0%
Qts0.4-15%
BL15.1Tm-5%
Vas74.1L+27%
Qes0.45-12%
75%
Similarity
£72.44
Peerless
FSL-1225R02-08
12"
Xmax5.3mm-25%
Qts0.44-6%
BL14.9Tm-6%
Vas54.8L-6%
Qes0.49-5%
75%
Similarity

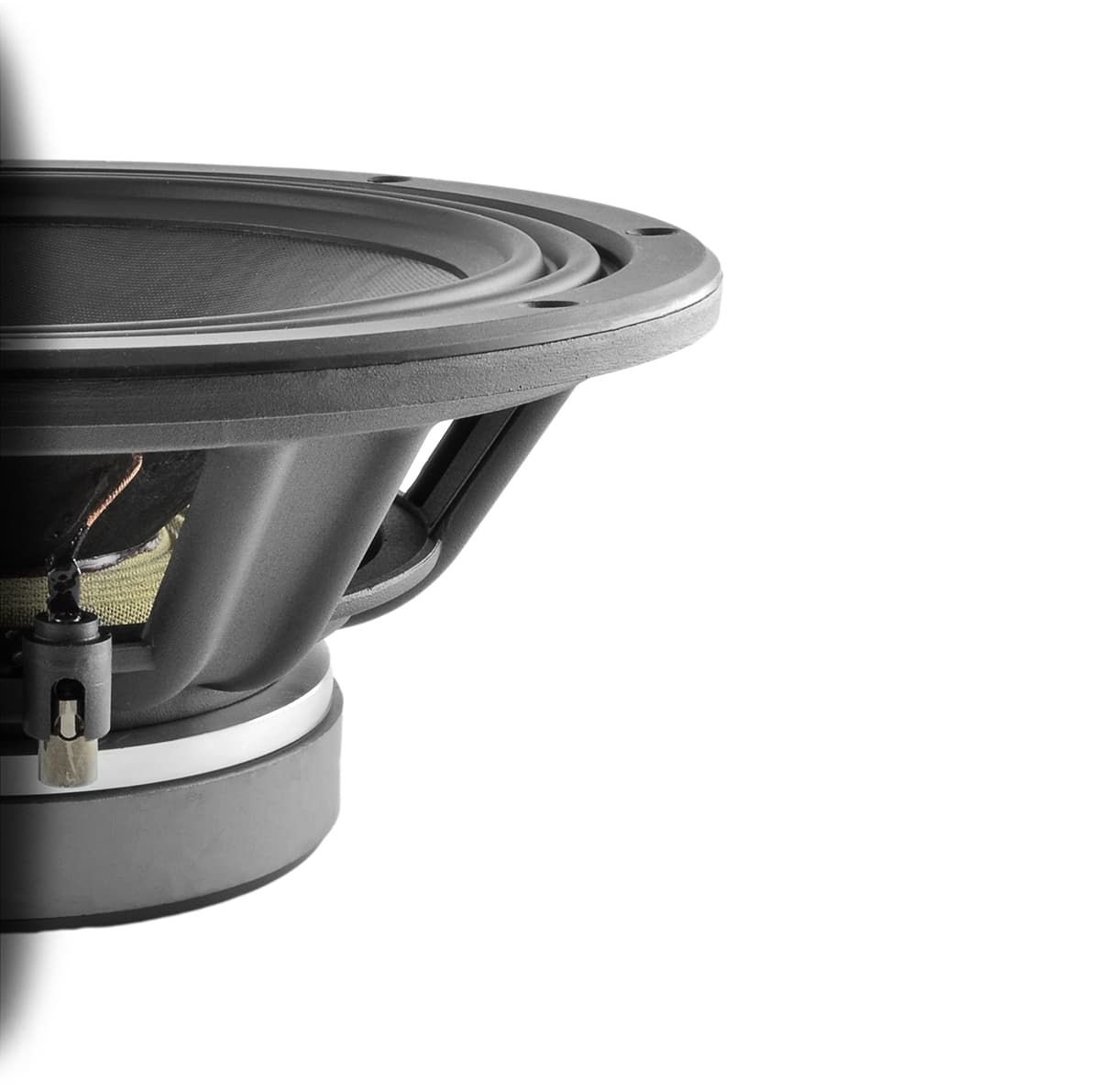

Sica
