12-inch LF driver · 12NMB series · 88 mm voice coil · 600 W
Oberton 12NMB35 8Ω
8 Ω · 50–3000 Hz
No current price
- Fs
- 54Hz
- Xmax
- 6.8mm
- SPL
- 96dB
- Pe
- 600W
- BL
- 17T·m
- Vd
- 347cm³
- Qts
- 0.36
- Vas
- 54L

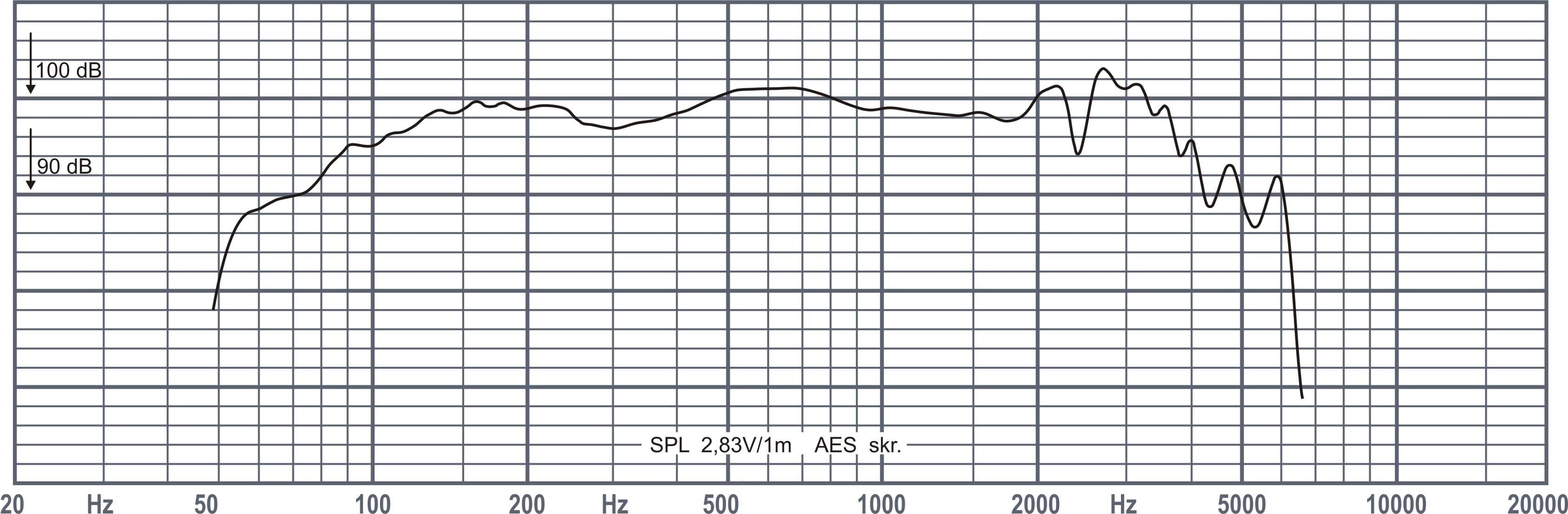

Published graphs
Oberton 12NMB35 is a 12-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 54 Hz, Qts 0.36, Vas 54.3 L, Xmax 6.8 mm, sensitivity 95.7 dB, plus 347 cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 54Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 7.4
- Vas
- 54.3L
- Re
- 5.5Ω
- Le
- 1.01mH
Motor and cone
- BL
- 17T·m
- Sd
- 515cm²
- Mms
- 58g
- Xmax
- 6.8mm
- Vd †
- 347cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 95.7dB
- Manufacturer sensitivity
- 200dB
- Power
- 600W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- Range
- 50–3000Hz
- EBP †
- 143 · Leans vented

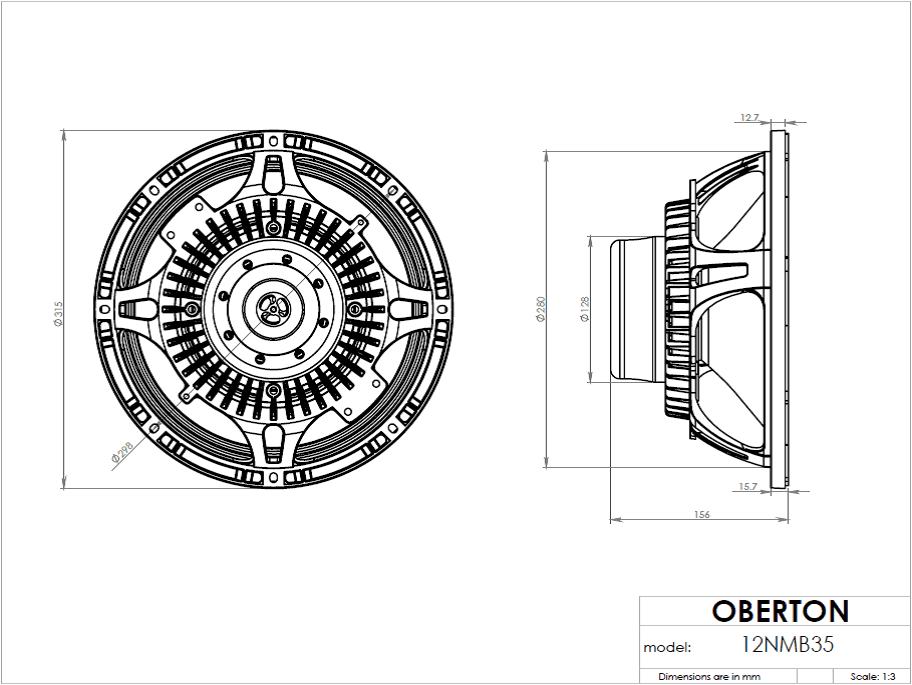

Size and mounting
- Diameter
- 315mm
- Cutout
- 280mm
- Bolt circle
- 298mm
- Depth
- 156mm
- Weight
- 5.0kg
Other published values
- Cms
- 0.15mm/N
- Power Program
- 1200
Sensitivity shows 95.7 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 104.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 17T·m
- Fs
- 54Hz
- Le
- 1.01mH
- Re
- 5.5Ω
- Sd
- 515cm²
- Cms
- 0.15mm/N
- Mms
- 58g
- Qes
- 0.38
- Qms
- 7.4
- Qts
- 0.36
- SPL
- 95.7dB
- Vas
- 54.3L
- Xmax
- 6.8mm
- Power
- 600W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 200dB
- Low limit
- 50Hz
- Power Program
- 1200
- Calculated sensitivity †
- 95.7dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.8Ω
- Voice coil
- 88mm
- Weight
- 5.0kg
- Diameter
- 315mm
- Depth
- 156mm
- Cutout
- 280mm
- Bolt circle
- 298mm
02
