12-inch LF driver · 12B series · 77 mm voice coil · 450 W
Oberton 12B45V 8Ω
8 Ω · 40–2000 Hz
No current price
- Fs
- 48Hz
- Xmax
- 10.5mm
- SPL
- 94dB
- Pe
- 450W
- BL
- 16.6T·m
- Vd
- 540cm³
- Qts
- 0.35
- Vas
- 59L

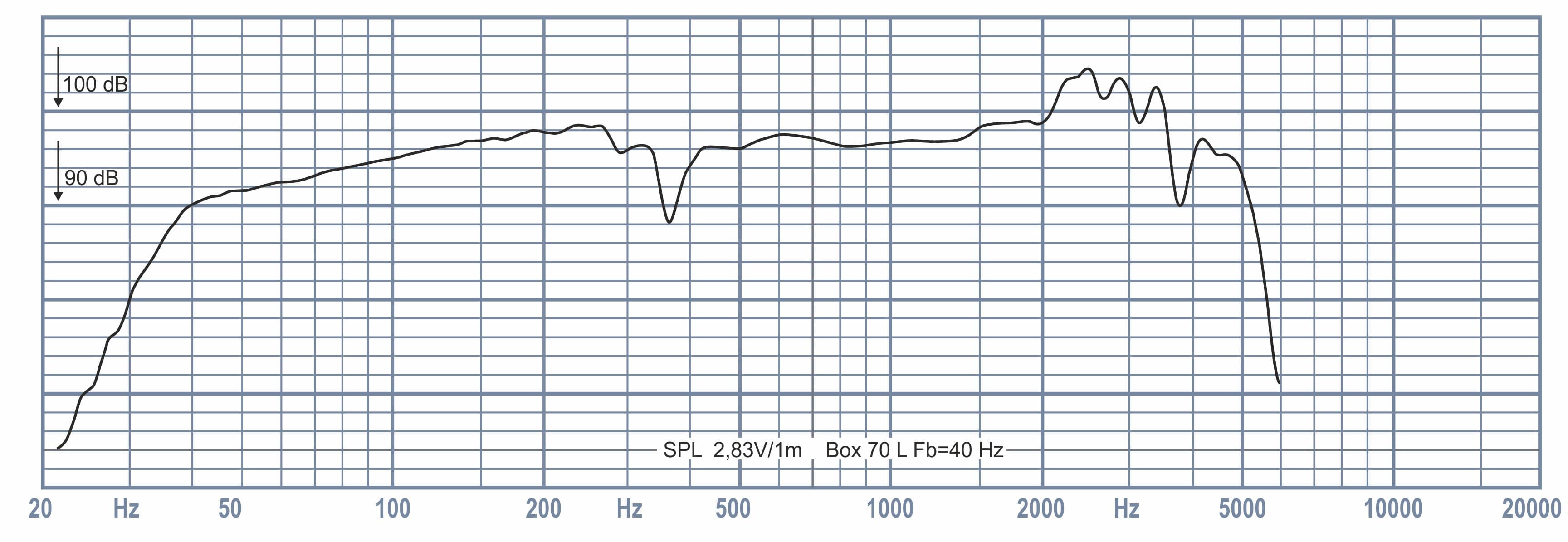

Published graphs
Oberton 12B45V is a 12-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 48 Hz, Qts 0.35, Vas 58.5 L, Xmax 10.5 mm, sensitivity 94.4 dB, plus 540 cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 48Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 7.4
- Vas
- 58.5L
- Re
- 4.9Ω
- Le
- 0.73mH
Motor and cone
- BL
- 16.6T·m
- Sd
- 515cm²
- Mms
- 70g
- Xmax
- 10.5mm
- Vd †
- 540cm³
- Voice coil
- 77mm
- Flux density
- 1.24T
Power and response
- Sensitivity †
- 94.4dB
- Manufacturer sensitivity
- 50dB
- Power
- 450W
- Impedance
- 8Ω
- Min. impedance
- 5.8Ω
- Range
- 40–2000Hz
- EBP †
- 129 · Leans vented

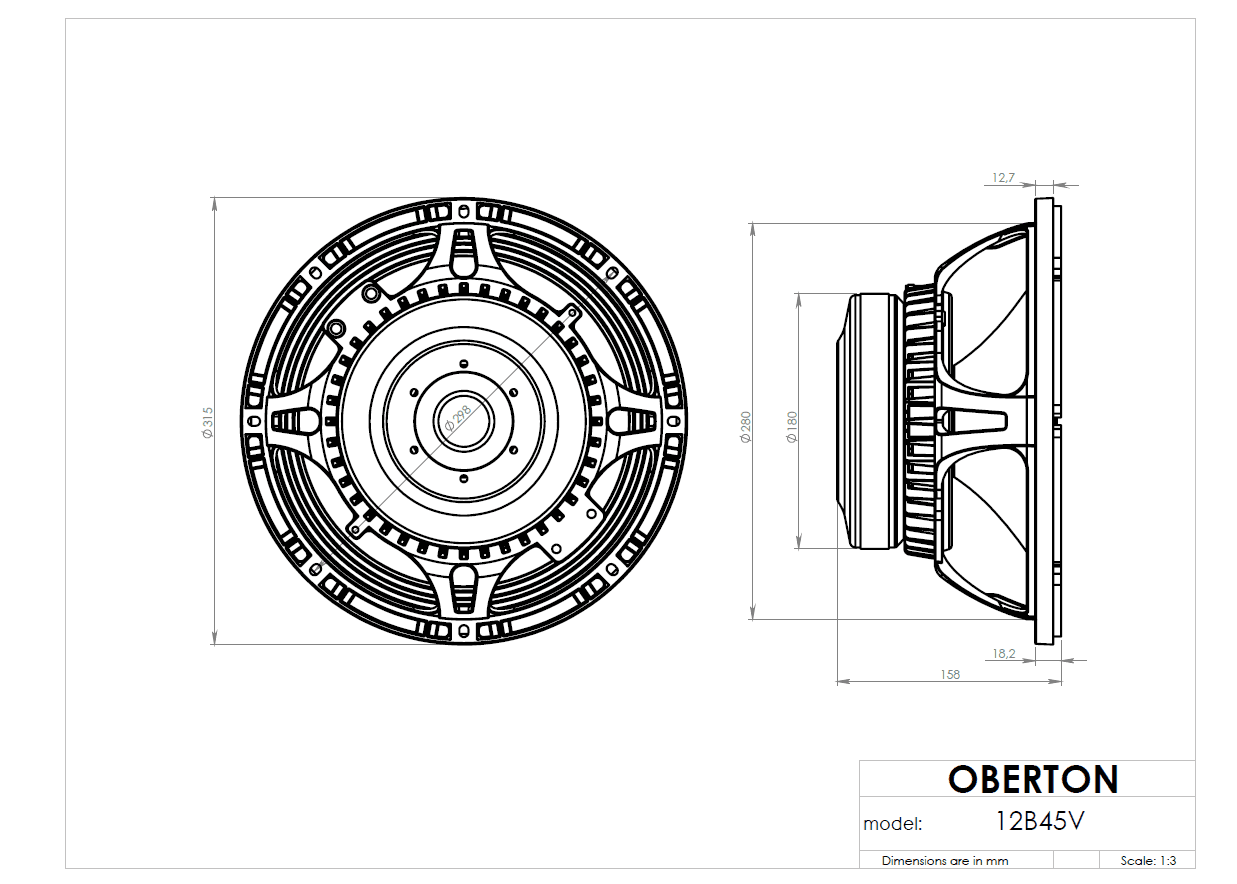

Size and mounting
- Diameter
- 315mm
- Cutout
- 280mm
- Bolt circle
- 298mm
- Depth
- 158mm
- Weight
- 7.7kg
Other published values
- Cms
- 0.16mm/N
- Power Program
- 900
Sensitivity shows 94.4 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 44.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 16.6T·m
- Fs
- 48Hz
- Le
- 0.73mH
- Re
- 4.9Ω
- Sd
- 515cm²
- Cms
- 0.16mm/N
- Mms
- 70g
- Qes
- 0.37
- Qms
- 7.4
- Qts
- 0.35
- SPL
- 94.4dB
- Vas
- 58.5L
- Xmax
- 10.5mm
- Power
- 450W
- Impedance
- 8Ω
- Flux density
- 1.24T
- Sensitivity
- 50dB
- Low limit
- 40Hz
- Power Program
- 900
- Calculated sensitivity †
- 94.4dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 50dB
- Min. impedance
- 5.8Ω
- Voice coil
- 77mm
- Weight
- 7.7kg
- Diameter
- 315mm
- Depth
- 158mm
- Cutout
- 280mm
- Bolt circle
- 298mm
