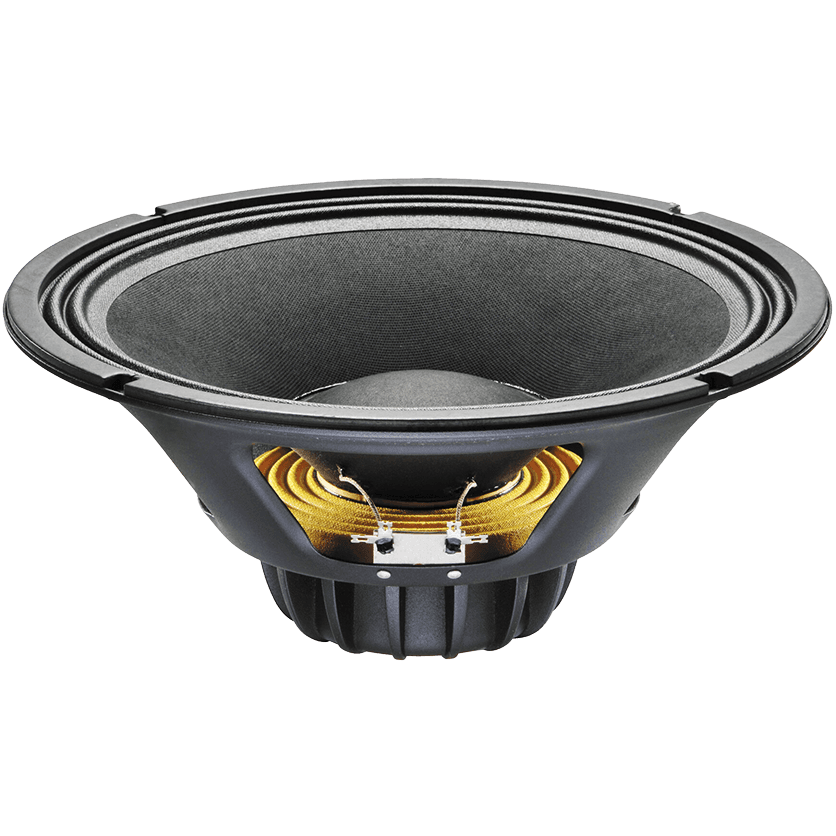

Celestion TN1230 8Ω
8 Ω · 50–4500 Hz
£145.00
SteadyLean Business · All 3 offers
- Fs
- 47Hz
- Xmax
- 3.8mm
- SPL
- 95dB
- Pe
- 350W
- BL
- 18.6T·m
- Vd
- 199cm³
- Qts
- 0.35
- Vas
- 64L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
130 plotted pointsMedium confidence133 selected pixels of 281
Published graphs
Celestion TN1230 is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 47 Hz, Qts 0.35, Vas 64.3 L, Xmax 3.8 mm, sensitivity 94.5 dB, plus 199 cm³ Vd and 126 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £145.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 47Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 4.8
- Vas
- 64.3L
- Re
- 6.1Ω
- Le
- 0.99mH
Motor and cone
- BL
- 18.6T·m
- Sd
- 531cm²
- Mms
- 72g
- Xmax
- 3.8mm
- Vd †
- 199cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 94.5dB
- Manufacturer sensitivity
- 97dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 50–4500Hz
- EBP †
- 126 · Leans vented
Size and mounting
- Diameter
- 309mm
- Cutout
- 283mm
- Bolt circle
- 297mm
- Depth
- 132mm
- Weight
- 2.1kg
Other published values
- Cms
- 0.16mm/N
- Rms
- 4.45kg/s
- Power Program
- 700
Sensitivity shows 94.5 dB, calculated from the T/S values. Celestion publishes 97.0 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 12″
- BL
- 18.6T·m
- Fs
- 47Hz
- Le
- 0.99mH
- Re
- 6.1Ω
- Sd
- 531cm²
- Cms
- 0.16mm/N
- Mms
- 72g
- Qes
- 0.37
- Qms
- 4.8
- Qts
- 0.35
- Rms
- 4.45kg/s
- SPL
- 94.5dB
- Vas
- 64.3L
- Xmax
- 3.8mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 50Hz
- Power Program
- 700
- Calculated sensitivity †
- 94.5dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 75mm
- Weight
- 2.1kg
- Diameter
- 309mm
- Depth
- 132mm
- Cutout
- 283mm
- Bolt circle
- 297mm
