Overview
LF DriverSP series
Monacor
Monacor SP-312CX
Monacor SP-312CX is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 55Hz, Qts 0.33, Vas 64L, Xmax 3mm, sensitivity 96.7dB, plus 162cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
96.7dB
EBP
153
Vented alignment
Vd
162cm³
Overall Parameters
Valid
Fs55Hz
Qts0.33
Qes0.36
Qms3.7
Vas64.0L
Re5.6Ω
Le1.10mH
BL16.9Tm
Sd540cm²
Mms56g
Xmax3.0mm
SPL97dB
Power250W
Impedance8Ω
F Low3Hz
F High3000Hz
Voice Coil75mm
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

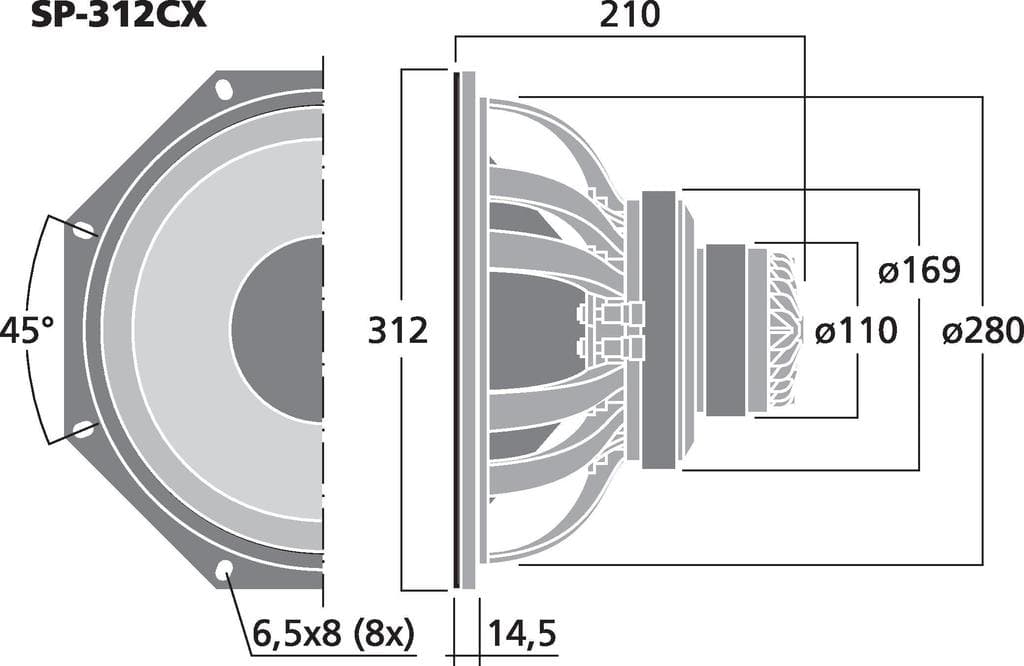

Dimensions & Physical
Weight8.1kg
Diameter312.0mm
Overall Depth210.0mm
Cutout Diameter280.0mm
Driver Components
LFPrimary
12"Fs55 Hz
Qts0.33
Qes0.36
Qms3.7
Vas64.0 L
Re5.6 Ω
Le1.10 mH
BL16.9 Tm
Sd540 cm²
Mms56 g
Xmax3.0 mm
SPL97 dB
Power250 W
Impedance8 Ω
F Low3 Hz
F High3000 Hz
Voice Coil75 mm
Cms0.16
Power Peak500
Section dimensions
Weight8060.0 kg
Diameter312.0 mm
Overall Depth210.0 mm
Mounting Depth195.5
Cutout Diameter280.0 mm
