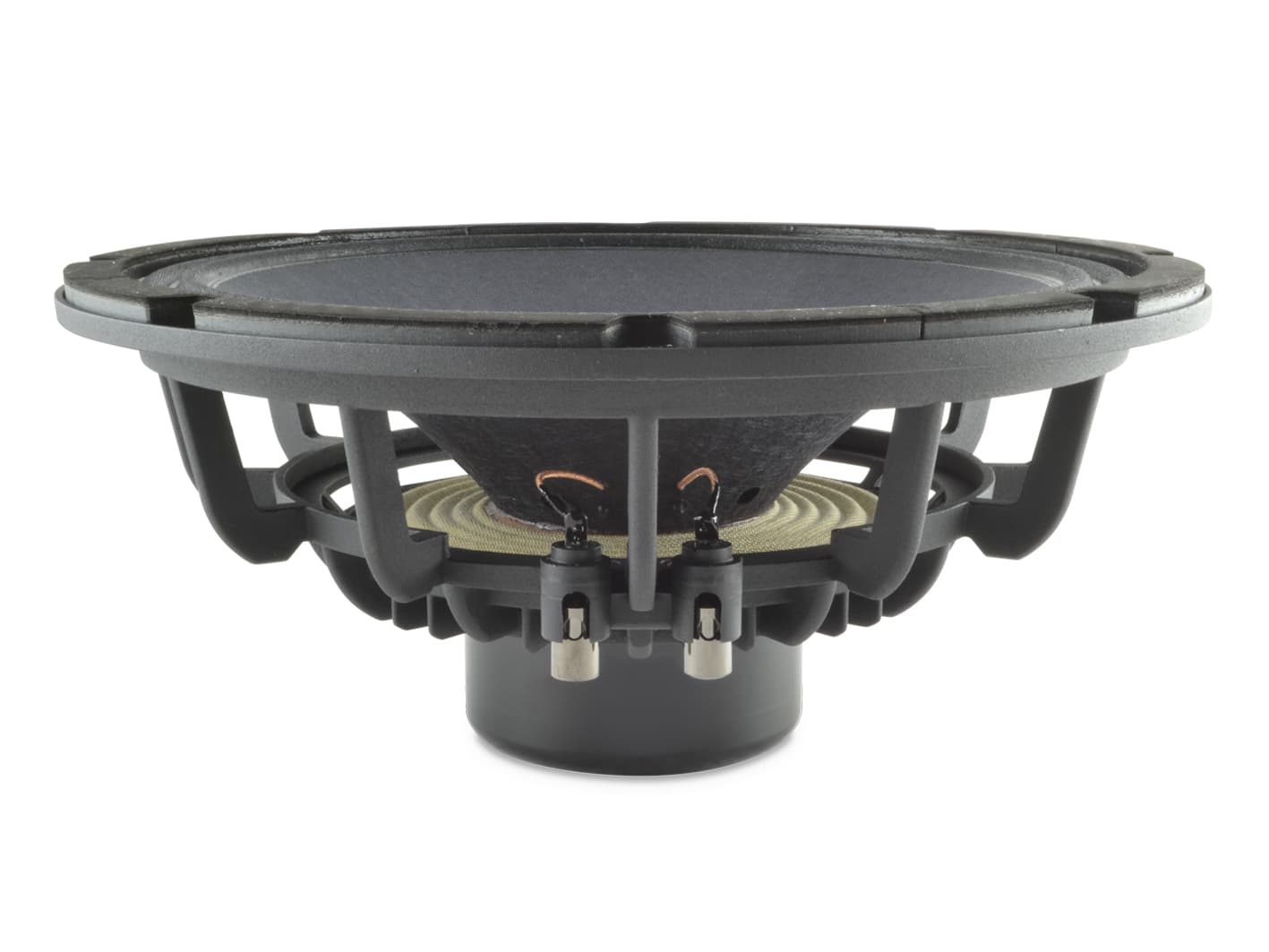

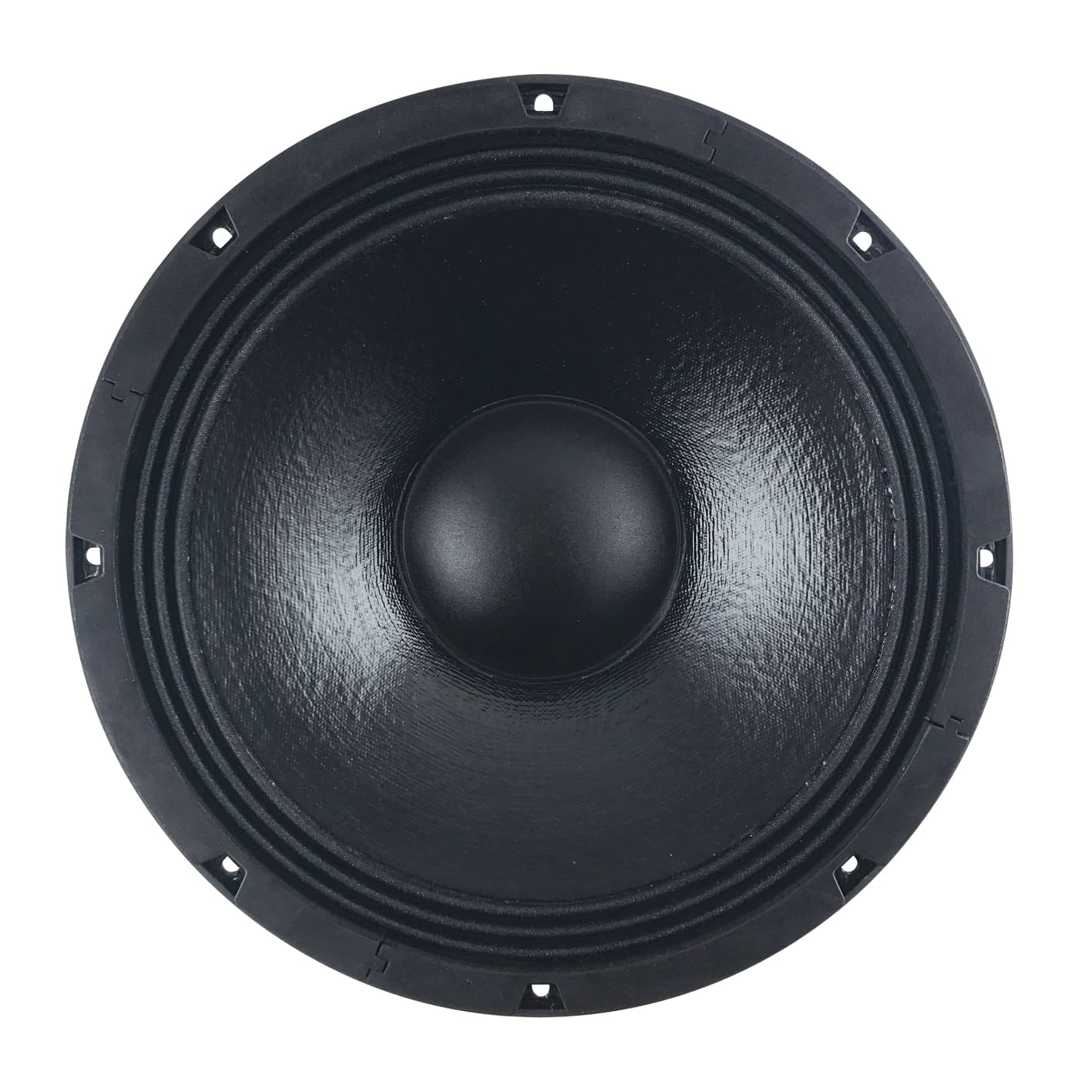

REDCATT 121XR 8Ω
8 Ω
No current price
- Fs
- 46Hz
- Xmax
- 6.3mm
- SPL
- 94dB
- Pe
- 500W
- BL
- 16T·m
- Vd
- 337cm³
- Qts
- 0.33
- Vas
- 69L
REDCATT 121XR is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.33, Vas 69.1 L, Xmax 6.3 mm, sensitivity 94.1 dB, plus 337 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.33
- Qes
- 0.42
- Qms
- 1.6
- Vas
- 69.1L
- Re
- 5.6Ω
- Le
- 0.16mH
Motor and cone
- BL
- 16T·m
- Sd
- 531cm²
- Mms
- 67g
- Xmax
- 6.3mm
- Vd †
- 337cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 94.1dB
- Manufacturer sensitivity
- 95.8dB
- Power
- 500W
- Impedance
- 8Ω
- EBP †
- 110 · Leans vented
Size and mounting
- Diameter
- 320mm
- Cutout
- 281mm
- Bolt circle
- 299mm
- Weight
- 5.1kg
Other published values
- Xmech
- 29.85
- Power Peak
- 2000
Other dimensions
- Mounting Depth
- 172.5
Sensitivity shows 94.1 dB, calculated from the T/S values. REDCATT publishes 95.8 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 12″
- BL
- 16T·m
- Fs
- 46Hz
- Le
- 0.16mH
- Re
- 5.6Ω
- Sd
- 531cm²
- Mms
- 67g
- Qes
- 0.42
- Qms
- 1.6
- Qts
- 0.33
- SPL
- 94.1dB
- Vas
- 69.1L
- Xmax
- 6.3mm
- Xmech
- 29.85
- Power
- 500W
- Impedance
- 8Ω
- Power Peak
- 2000
- Sensitivity
- 95.8dB
- Calculated sensitivity †
- 94.1dB
- Manufacturer sensitivity
- 95.8dB
- Voice coil
- 64mm
- Weight
- 5.1kg
- Diameter
- 320mm
- Mounting Depth
- 172.5
- Cutout
- 281mm
- Bolt circle
- 299mm
