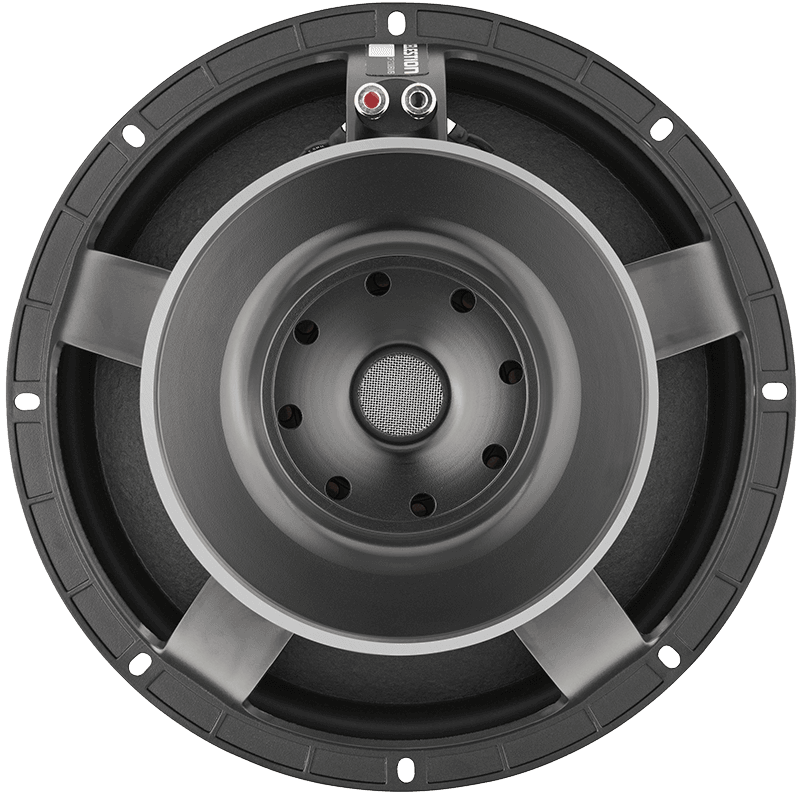

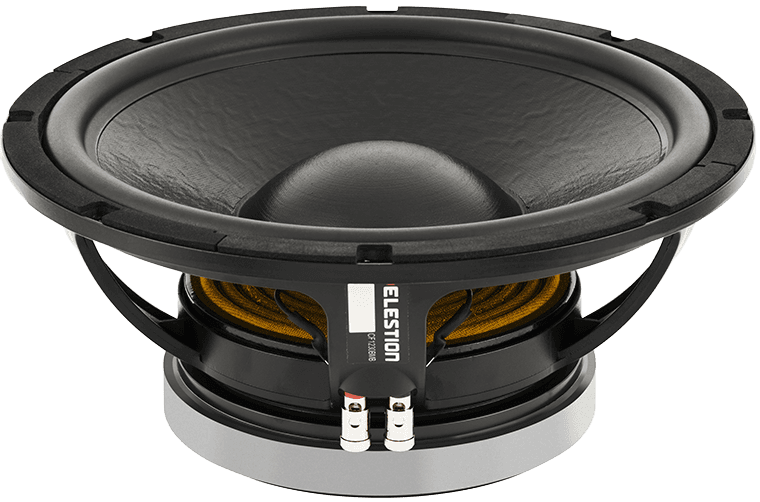

Celestion CF1230BMB 8Ω
8 Ω · 50–3000 Hz
£145.00
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 43Hz
- Xmax
- 7mm
- SPL
- 93dB
- Pe
- 350W
- BL
- 18.4T·m
- Vd
- 372cm³
- Qts
- 0.38
- Vas
- 61L

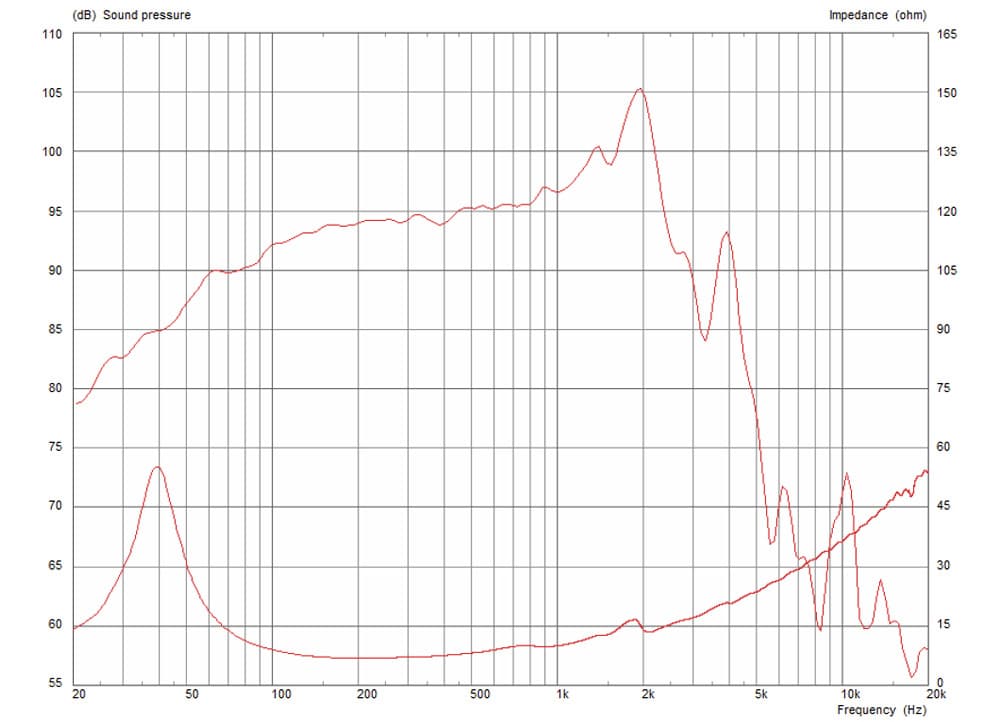

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence154 selected pixels of 301
Published graphs
Celestion CF1230BMB is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.38, Vas 60.7 L, Xmax 7 mm, sensitivity 92.8 dB, plus 372 cm³ Vd and 104 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £145.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.38
- Qes
- 0.42
- Qms
- 4.5
- Vas
- 60.7L
- Re
- 5.8Ω
- Le
- 0.71mH
Motor and cone
- BL
- 18.4T·m
- Sd
- 531cm²
- Mms
- 88g
- Xmax
- 7mm
- Vd †
- 372cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 92.8dB
- Manufacturer sensitivity
- 96dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 50–3000Hz
- EBP †
- 104 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 285.6mm
- Bolt circle
- 300mm
- Depth
- 155.5mm
- Weight
- 6.8kg
Other published values
- Cms
- 0.15mm/N
- Rms
- 5.42kg/s
- Power Program
- 700
Sensitivity shows 92.8 dB, calculated from the T/S values. Celestion publishes 96.0 dB, 3.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 12″
- BL
- 18.4T·m
- Fs
- 43Hz
- Le
- 0.71mH
- Re
- 5.8Ω
- Sd
- 531cm²
- Cms
- 0.15mm/N
- Mms
- 88g
- Qes
- 0.42
- Qms
- 4.5
- Qts
- 0.38
- Rms
- 5.42kg/s
- SPL
- 92.8dB
- Vas
- 60.7L
- Xmax
- 7mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 50Hz
- Power Program
- 700
- Calculated sensitivity †
- 92.8dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 75mm
- Weight
- 6.8kg
- Diameter
- 315mm
- Depth
- 155.5mm
- Cutout
- 285.6mm
- Bolt circle
- 300mm
