Overview
LF Driver
Sica

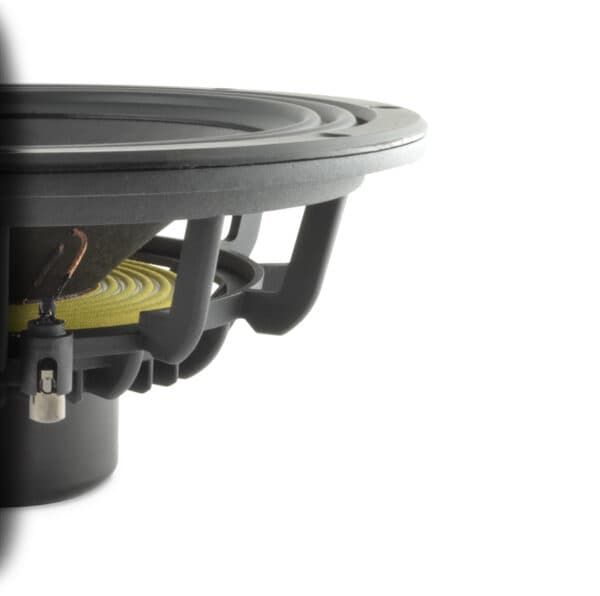

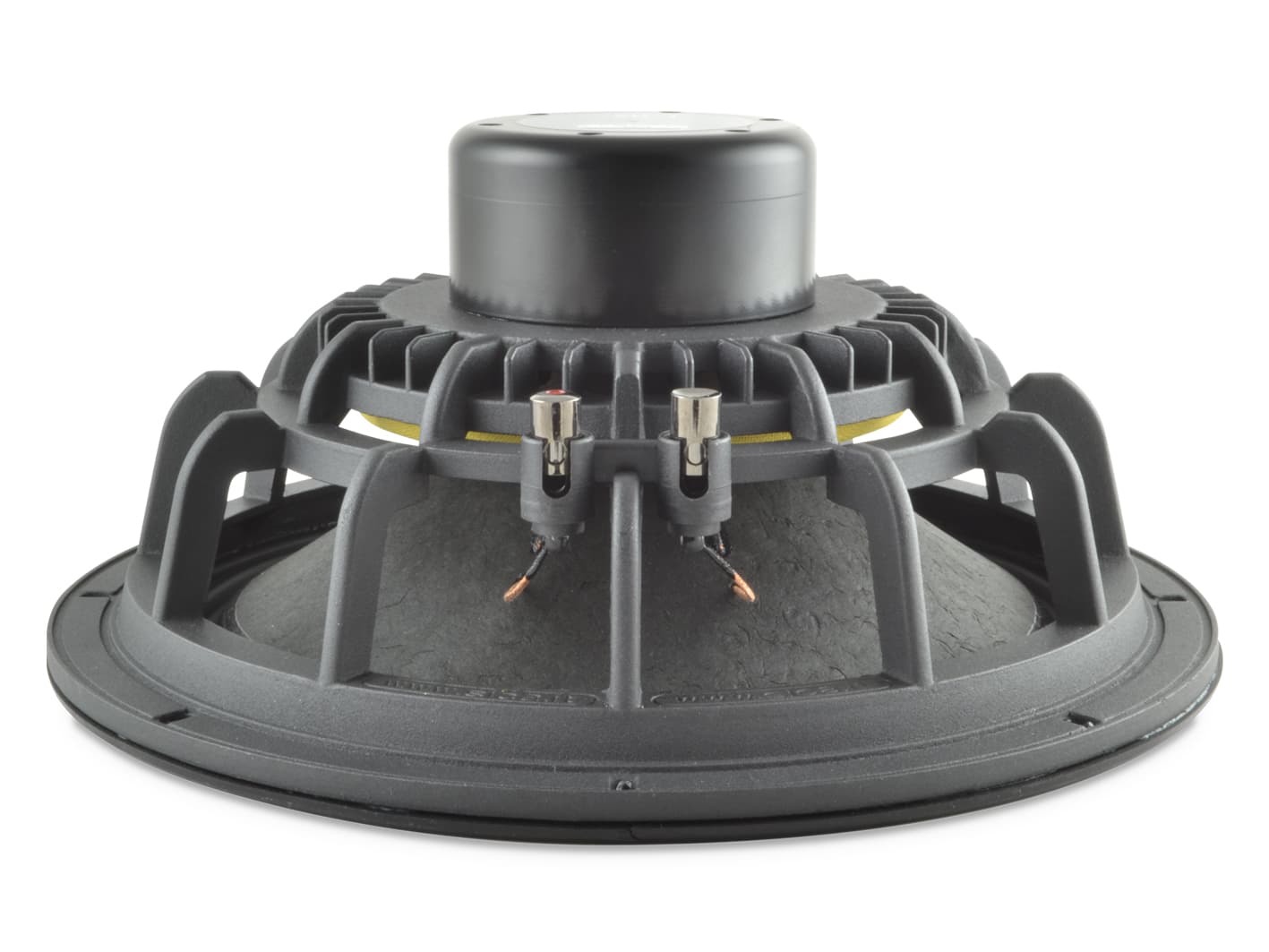

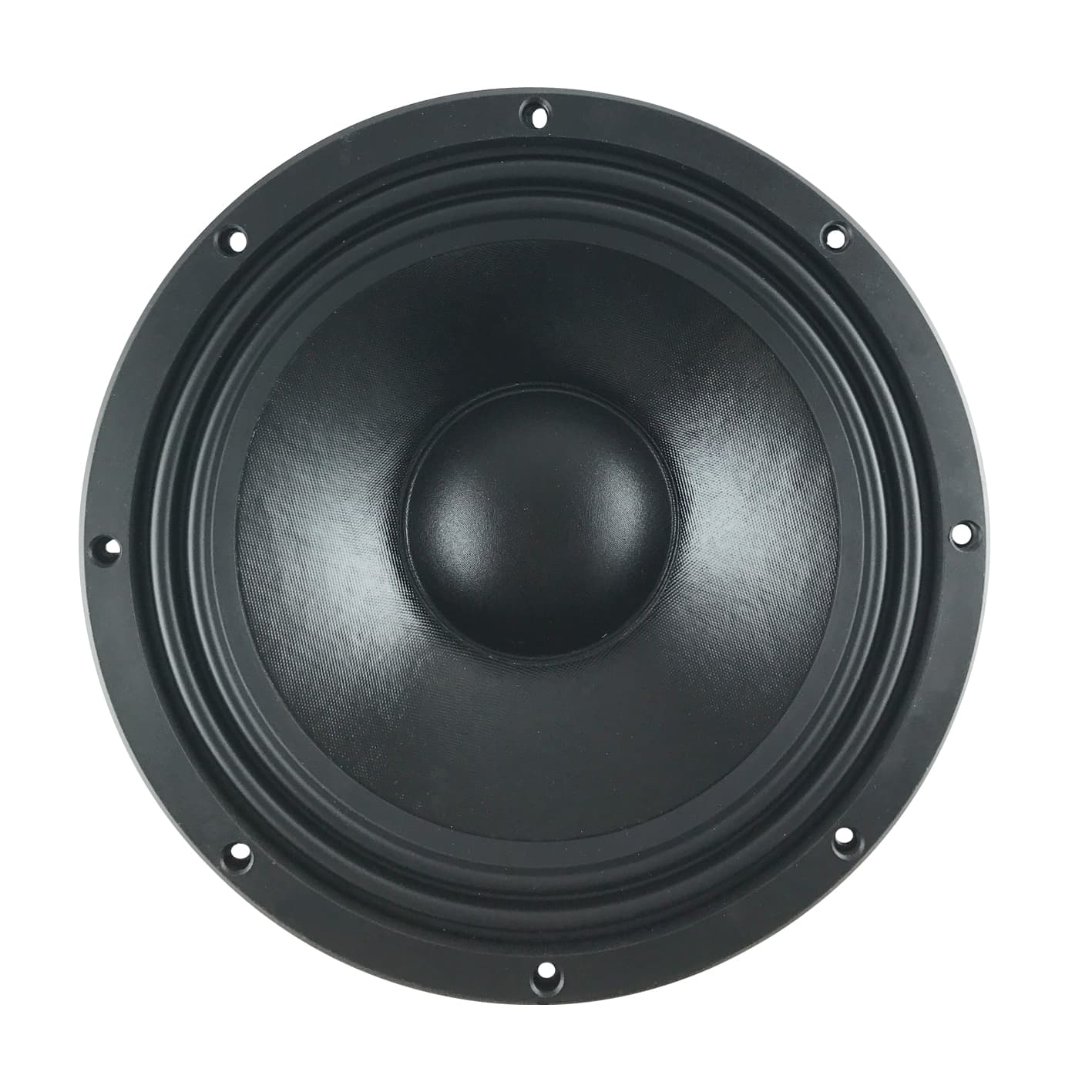

Sica 12 SR 3 PL
Sica 12 SR 3 PL is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 36Hz, Qts 0.42, Vas 60.4L, Xmax 7mm, sensitivity 90dB, plus 344cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
90.0dB
91.8dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
80
Either alignment
Vd
344cm³
T/S Parameters
Valid
Fs36Hz
Qts0.42
Qes0.45
Qms5.9
Vas60.4L
Re5.3Ω
Le1.15mH
BL17.0Tm
Sd491cm²
Mms109g
Xmax7.0mm
SPL90dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.19T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter320.0mm
Overall Depth142.9mm
Cutout Diameter284.0mm
Bolt Circle Diameter300.0mm
