Overview
LF Driver
Sica

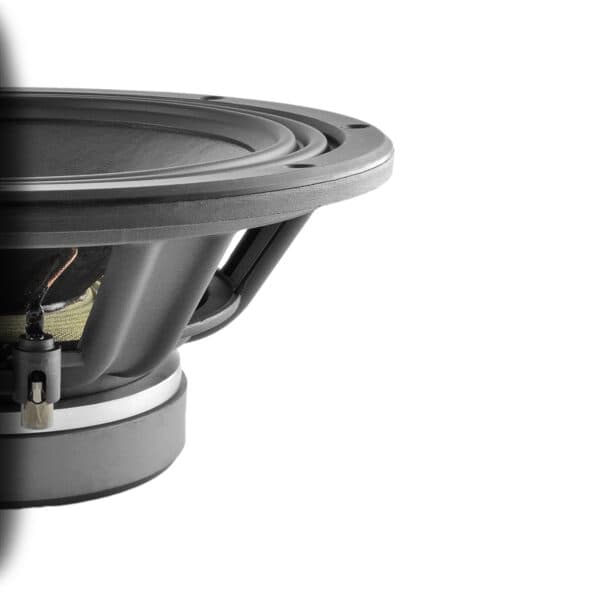

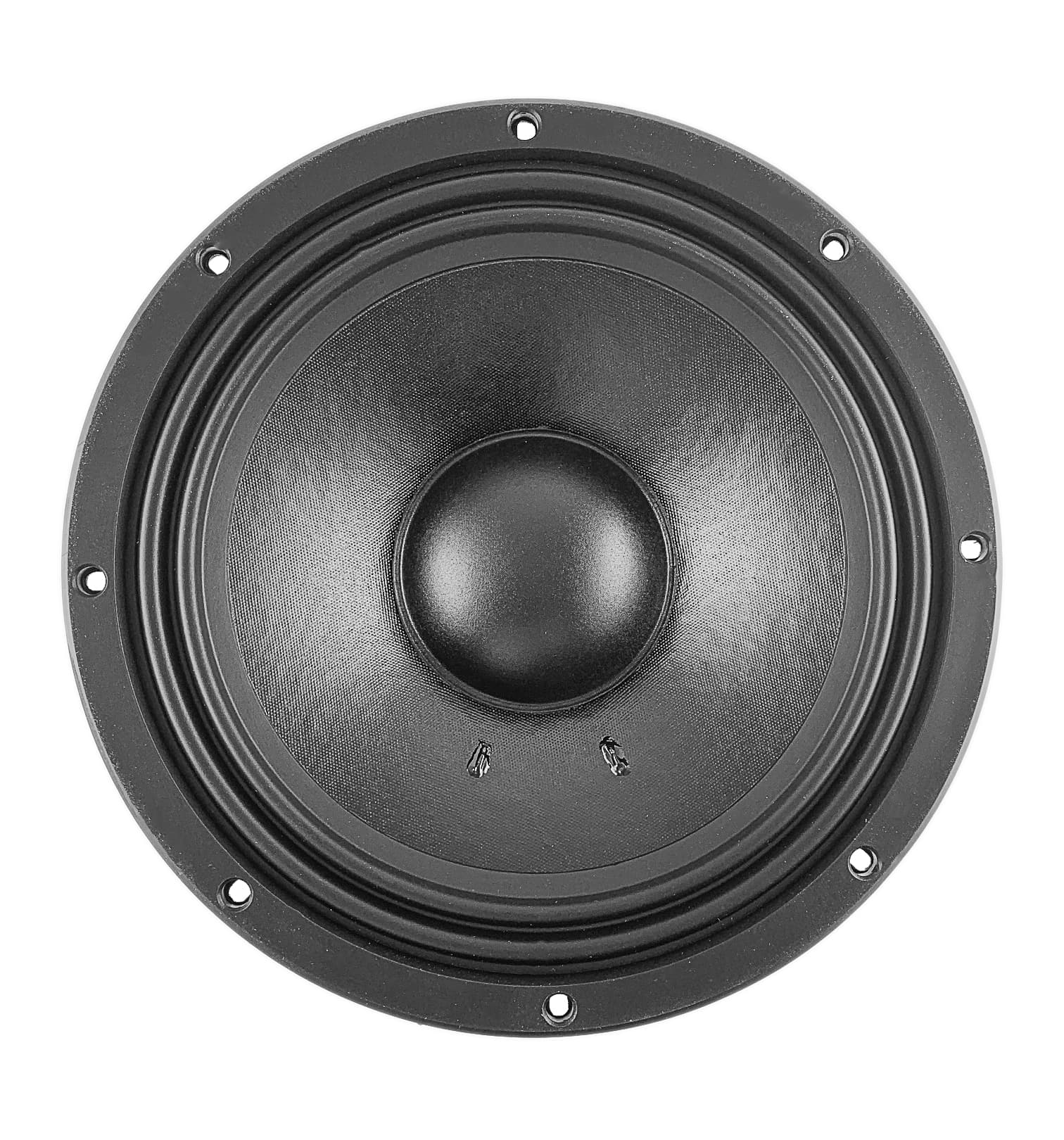

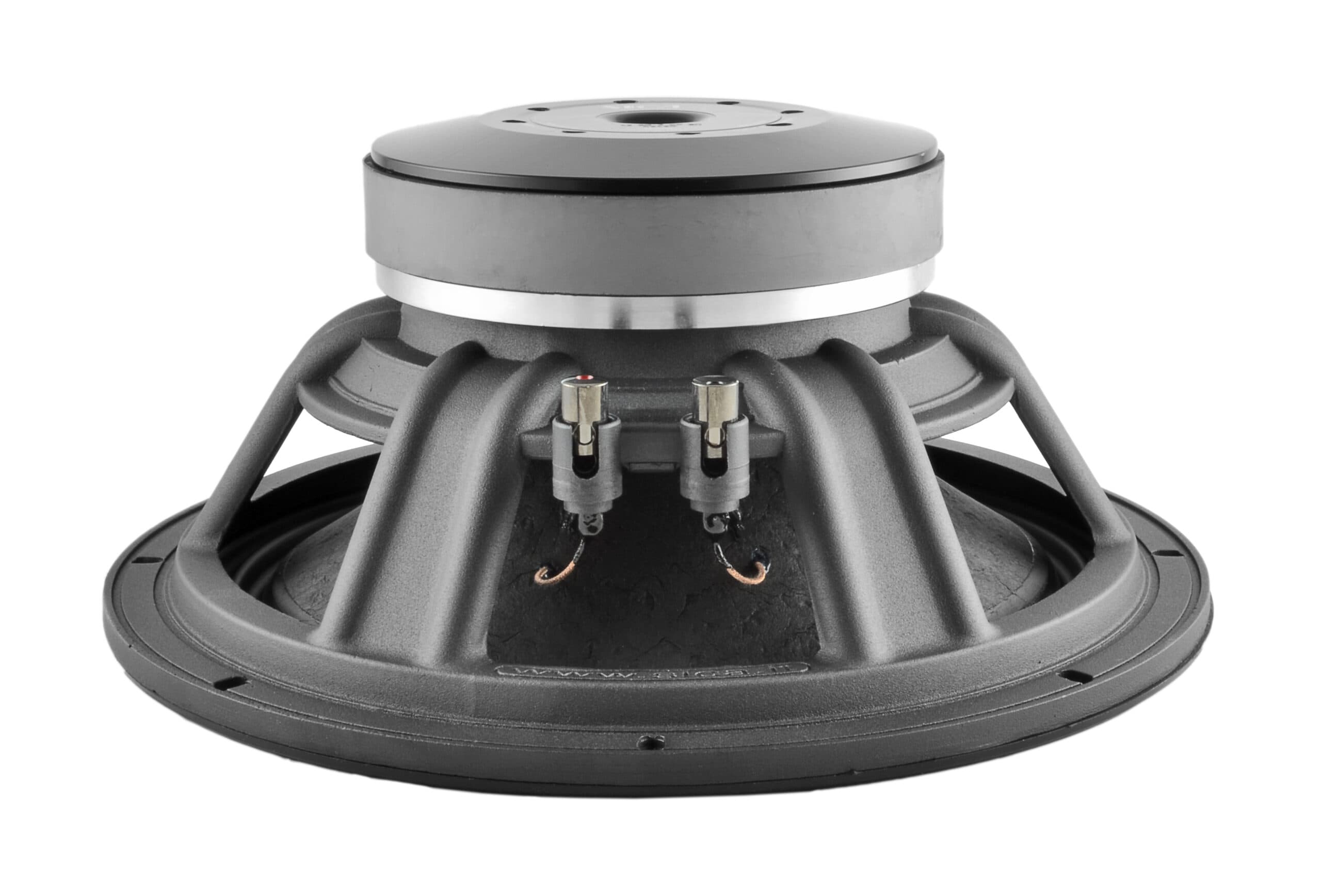

Sica 12 SR 3 CP
Sica 12 SR 3 CP is a 12" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 37Hz, Qts 0.40, Vas 60.9L, Xmax 8mm, sensitivity 90.3dB, plus 393cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
450W
Sensitivity
90.3dB
92.2dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
80
Either alignment
Vd
393cm³
T/S Parameters
Valid
Fs37Hz
Qts0.40
Qes0.46
Qms3.0
Vas60.9L
Re5.2Ω
Le1.29mH
BL16.6Tm
Sd491cm²
Mms104g
Xmax8.0mm
SPL90dB
Power450W
Impedance8Ω
Voice Coil75mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.7kg
Diameter320.0mm
Overall Depth140.8mm
Cutout Diameter284.0mm
Bolt Circle Diameter300.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
12 SR 3 CP
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
£274.84
Eighteen Sound
12NLW9300
12"
Xmax8mm0%
Qts0.42+5%
BL17Tm+3%
Vas56L-8%
Qes0.45-2%
89%
Similarity
£299.50
Eighteen Sound
12NTLS3500
12"
Xmax7.9mm-1%
Qts0.41+2%
BL17.8Tm+7%
Vas65L+7%
Qes0.43-7%
87%
Similarity
Sica
12 SR 3 PL
12"
Xmax7mm-12%
Qts0.42+5%
BL17Tm+3%
Vas60.4L-1%
Qes0.45-2%
Image unavailable
82%
Similarity
PHL Audio
4511
12"
Xmax7mm-12%
Qts0.40%
BL15.1Tm-9%
Vas74.1L+22%
Qes0.45-2%
81%
Similarity
£308.45
FaitalPRO
12HX240
12"
Xmax7.4mm-8%
Qts0.37-8%
BL16Tm-3%
Vas61.1L0%
Qes0.38-17%
81%
Similarity
£135.46
Beyma
12MCS500
12"
Xmax8mm0%
Qts0.36-10%
BL17.6Tm+6%
Vas57L-6%
Qes0.38-17%
81%
Similarity
£145.00
Celestion
CF1230BMB
12"
Xmax7mm-12%
Qts0.38-5%
BL18.4Tm+11%
Vas60.7L0%
Qes0.42-9%
80%
Similarity
£250.31
FaitalPRO
12HX230
12"
Xmax7.4mm-8%
Qts0.43+7%
BL14.1Tm-15%
Vas67.7L+11%
Qes0.460%
79%
Similarity
£179.95
SB Audience
NERO-12MWN700D
12"
Xmax7.3mm-9%
Qts0.38-5%
BL17.9Tm+8%
Vas52.5L-14%
Qes0.4-13%
78%
Similarity
Eighteen Sound
12NTLW2500
12"
Xmax7.6mm-5%
Qts0.38-5%
BL17.4Tm+5%
Vas45L-26%
Qes0.39-15%
77%
Similarity
Peerless
NCP-1230R01-08
12"
Xmax7.9mm-1%
Qts0.37-8%
BL18.1Tm+9%
Vas46.3L-24%
Qes0.39-14%
77%
Similarity
FaitalPRO
12PR330
12"
Xmax7.4mm-8%
Qts0.40%
BL14.2Tm-14%
Vas79.1L+30%
Qes0.42-9%
