LF Driver
Fane

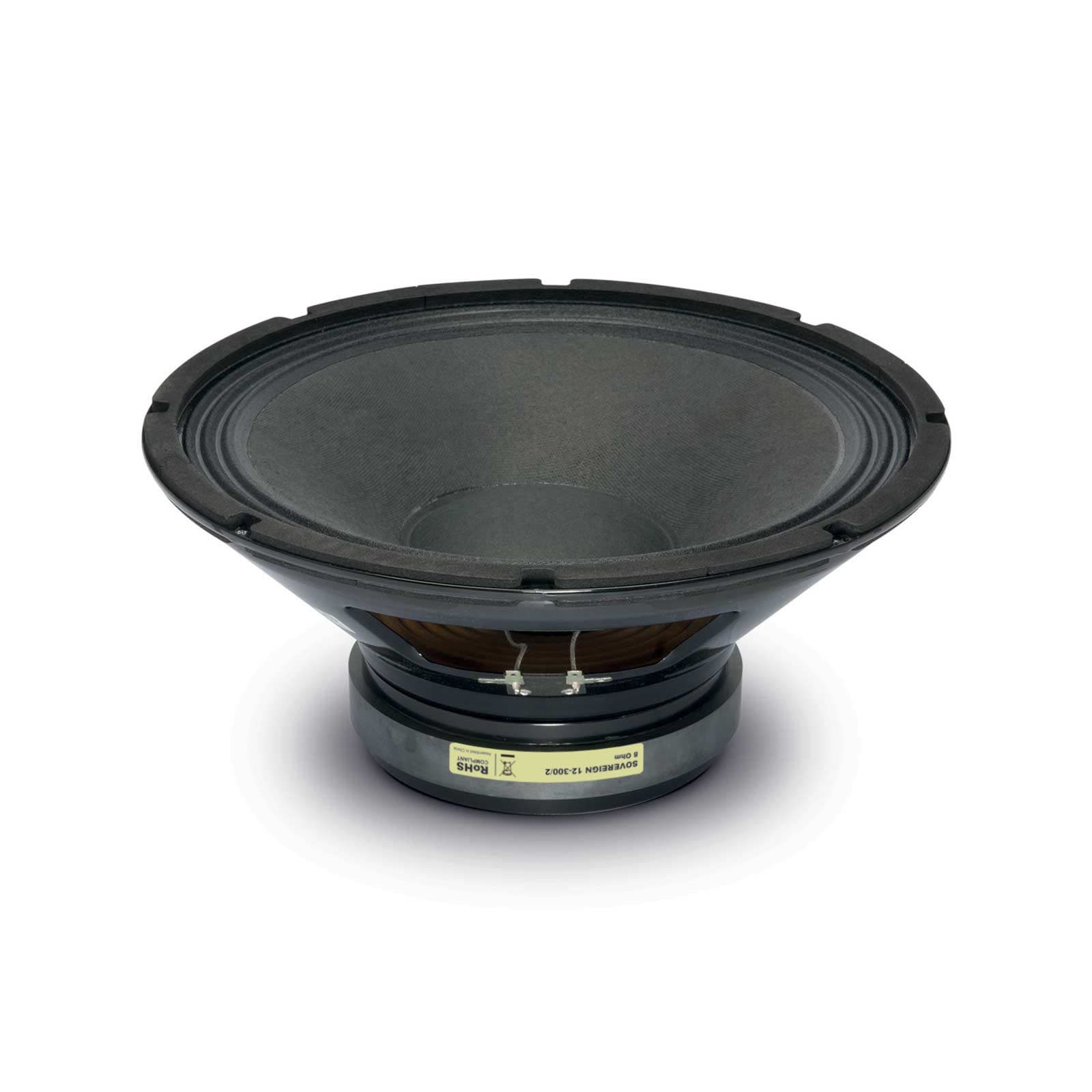

Fane SOVEREIGN 12-300/2
Fane SOVEREIGN 12-300/2 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 47Hz, Qts 0.40, Vas 80L, Xmax 5mm, sensitivity 94.9dB, plus 274cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.9dB
97.5dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
111
Vented alignment
Vd
274cm³
T/S Parameters
Valid
Fs47Hz
Qts0.40
Qes0.42
Qms6.8
Vas80.0L
Re5.8Ω
Le0.90mH
BL15.6Tm
Sd547cm²
Mms60g
Xmax5.0mm
SPL95dB
Power300W
Impedance8Ω
F Low45Hz
F High4500Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.0kg
Diameter304.8mm
Overall Depth137.9mm
