Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverFSL series
Peerless

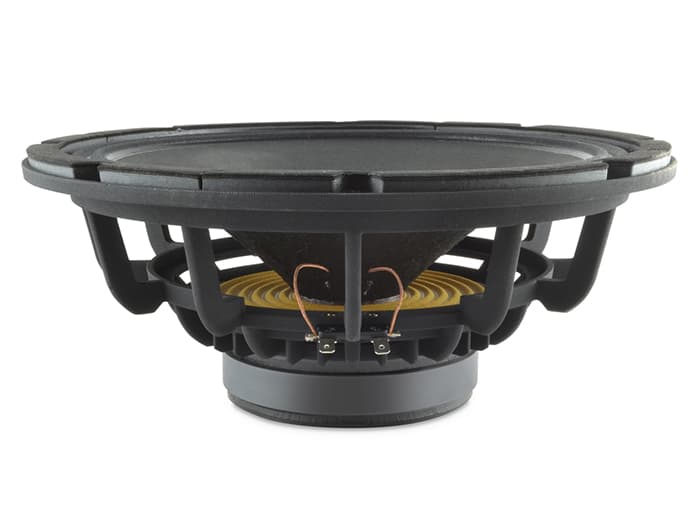

Peerless FSL-1225R02-08
Peerless FSL-1225R02-08 is a 12" 8 ohm LF driver rated at 233W RMS. The validated T/S data includes Fs 63Hz, Qts 0.44, Vas 54.8L, Xmax 5.3mm, sensitivity 96.5dB, plus 288cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
233W
Sensitivity
96.5dB
EBP
130
Vented alignment
Vd
288cm³
T/S Parameters
Valid
Fs63Hz
Qts0.44
Qes0.49
Qms4.2
Vas54.8L
Re5.5Ω
Le0.54mH
BL14.9Tm
Sd547cm²
Mms50g
Xmax5.3mm
SPL97dB
Power233W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Peerless
FSL-1225R02-08
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£80.00
CIARE
FXI12
12"
Xmax5mm-5%
Qts0.440%
BL13.9Tm-7%
Vas70L+28%
Qes0.49+1%
79%
Similarity
£104.85
Eminence
DELTA-12LFA
12"
Xmax4.8mm-9%
Qts0.47+7%
BL14.1Tm-5%
Vas67.9L+24%
Qes0.51+5%
78%
Similarity
Celestion
TF1230SL
12"
Xmax6mm+14%
Qts0.39-11%
BL15.7Tm+5%
Vas53.8L-2%
Qes0.44-10%
77%
Similarity
Celestion
FTR12-2565D
12"
Xmax4mm-24%
Qts0.42-5%
BL15.4Tm+4%
Vas49.1L-10%
Qes0.51+4%
76%
Similarity
£104.85
Eminence
DELTA-12LFC
12"
Xmax4.8mm-9%
Qts0.440%
BL10.9Tm-27%
Vas63.7L+16%
Qes0.47-3%
73%
Similarity
CIARE
FXI12
12"
Xmax5mm-5%
Qts0.440%
BL10.7Tm-28%
Vas70L+28%
Qes0.45-7%
73%
Similarity
Fane
SOVEREIGN 12-500LF
12"
Xmax5.5mm+4%
Qts0.51+16%
BL16.4Tm+10%
Vas66L+20%
Qes0.53+9%
73%
Similarity
£130.60
FaitalPRO
12PR310
12"
Xmax4.9mm-7%
Qts0.4-9%
BL14.4Tm-3%
Vas73.5L+34%
Qes0.41-16%
72%
Similarity
Sica
12 PF 3
12"
Xmax5.5mm+4%
Qts0.39-11%
BL15.4Tm+3%
Vas76.5L+40%
Qes0.42-14%
71%
Similarity
Fane
SOVEREIGN 12-300/2
12"
Xmax5mm-5%
Qts0.4-9%
BL15.6Tm+5%
Vas80L+46%
Qes0.42-13%
71%
Similarity
£85.00
Celestion
TF1230S
12"
Xmax4.5mm-15%
Qts0.37-15%
BL16.6Tm+11%
Vas54.4L-1%
Qes0.42-13%
71%
Similarity
Monacor
TF1230S/8
12"
Xmax4.5mm-15%
Qts0.37-15%
BL16.6Tm+11%
Vas54.4L-1%
Qes0.42-13%
