LF DriverDELTA series
Eminence

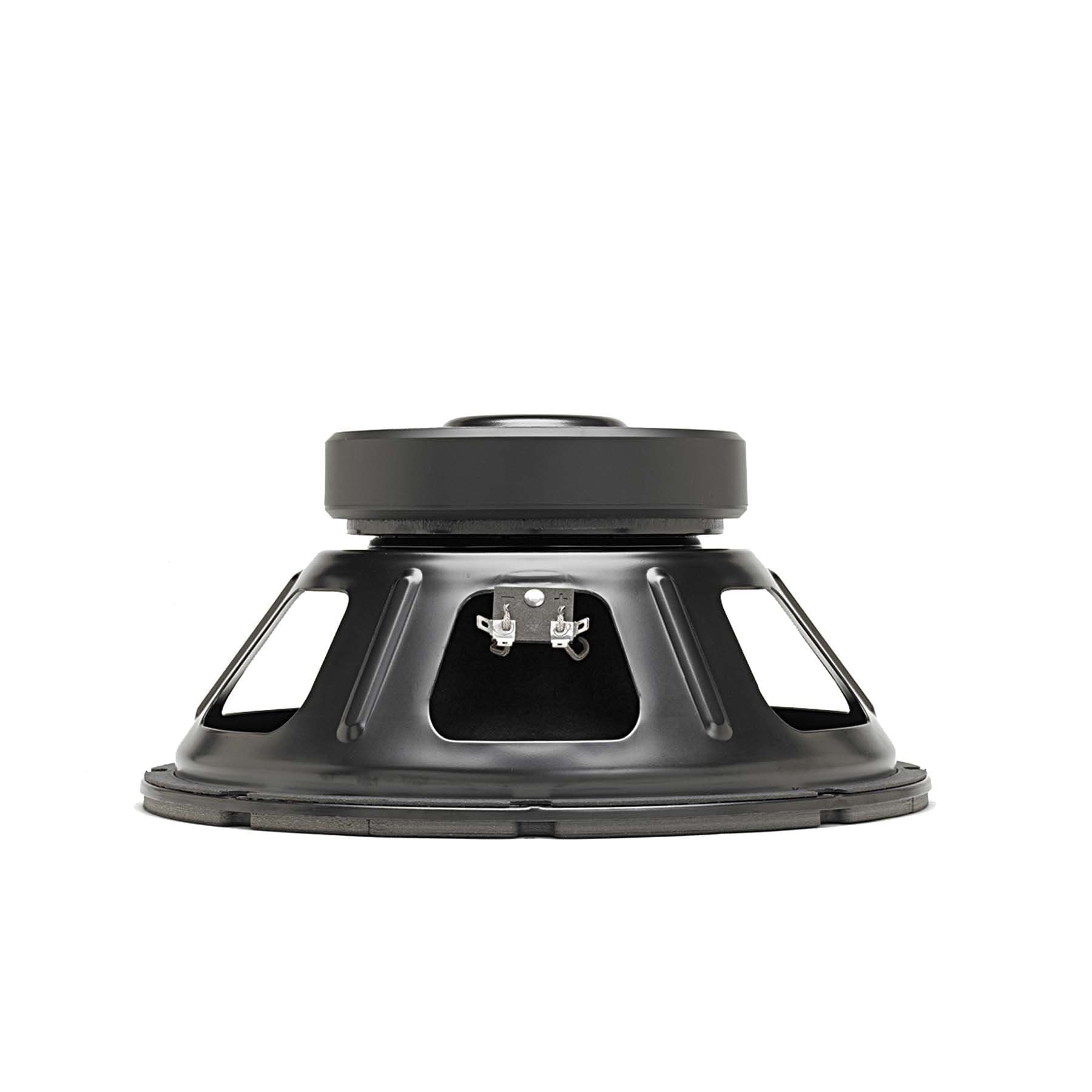

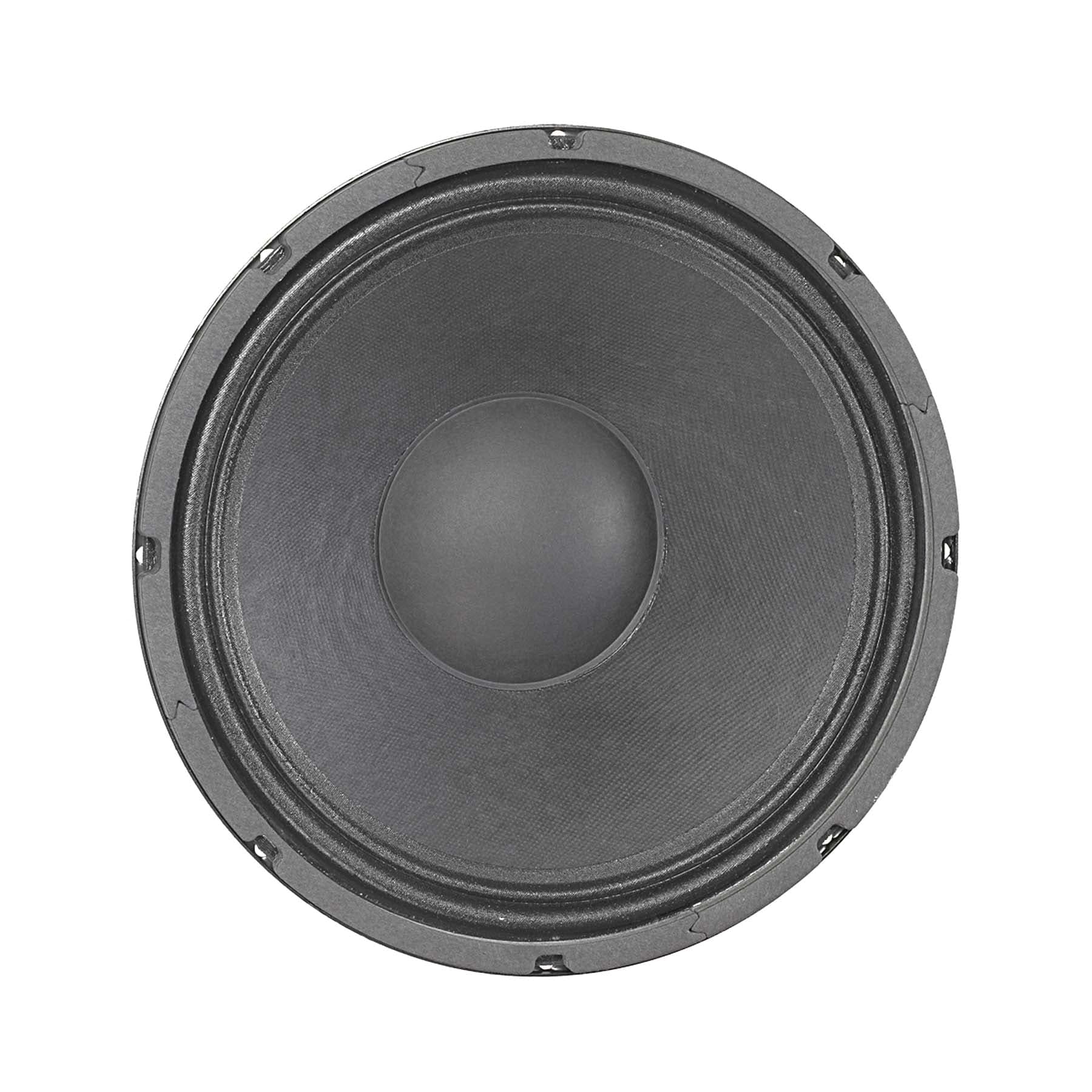

Eminence DELTA-12LFC
Eminence DELTA-12LFC is a 12" 4 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 52Hz, Qts 0.44, Vas 63.7L, Xmax 4.8mm, sensitivity 94.8dB, plus 243cm³ Vd and 111 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £104.85.
Size
12"
Impedance
4Ω
RMS Power
500W
Sensitivity
94.8dB
93.1dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
111
Vented alignment
Vd
243cm³
T/S Parameters
Valid
Fs52Hz
Qts0.44
Qes0.47
Qms8.2
Vas63.7L
Re3.2Ω
Le0.94mH
BL10.9Tm
Sd507cm²
Mms53g
Xmax4.8mm
SPL95dB
Power500W
Impedance4Ω
F Low45Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£104.85
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
Diameter305.6mm
Overall Depth135.9mm
Cutout Diameter281.2mm
Bolt Circle Diameter294.4mm
