BishopSoundBSP12
£55.00Fs53 Hz –
Qts0.84 +62%, worse
Vas66.3 L –
BL11.0 T·m −5%
Xmax4.5 mm −8%
Sensitivity92.6 dB −1.4
12-inch LF driver · DELTALITE series · 250 W

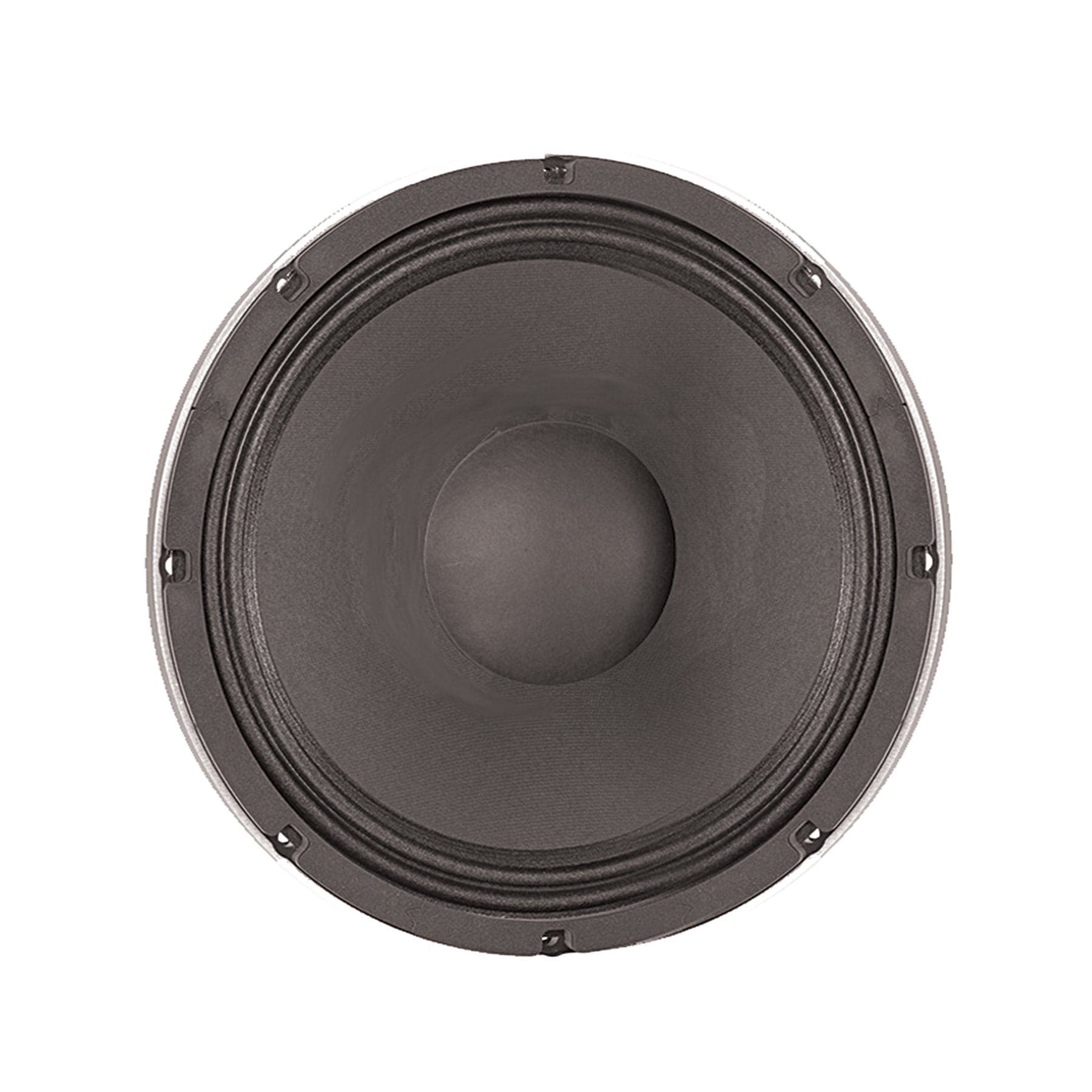

Eminence DELTALITE 2512 8Ω
8 Ω · 49–4300 Hz
No current price
- Fs
- 53Hz
- Xmax
- 4.9mm
- SPL
- 94dB
- Pe
- 250W
- BL
- 11.6T·m
- Vd
- 255cm³
- Qts
- 0.52
- Vas
- 67L
Eminence DELTALITE 2512 is a 12-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 53 Hz, Qts 0.52, Vas 67.4 L, Xmax 4.9 mm, sensitivity 94 dB, plus 255 cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 53Hz
- Qts
- 0.52
- Qes
- 0.64
- Qms
- 2.9
- Vas
- 67.4L
- Re
- 5.3Ω
- Le
- 0.31mH
Motor and cone
- BL
- 11.6T·m
- Sd
- 520cm²
- Mms
- 49g
- Xmax
- 4.9mm
- Vd †
- 255cm³
Power and response
- Sensitivity †
- 94dB
- Manufacturer sensitivity
- 99.6dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 49–4300Hz
- EBP †
- 83 · Sealed or vented
Size and mounting
- Diameter
- 314.5mm
- Cutout
- 280.9mm
- Bolt circle
- 295.1mm
- Depth
- 153.9mm
- Weight
- 2.3kg
Other published values
- Cms
- 0.18mm/N
- Xmech
- 8.5
- Power Program
- 500
Sensitivity shows 94.0 dB, calculated from the T/S values. Eminence publishes 99.6 dB, 5.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 11.6T·m
- Fs
- 53Hz
- Le
- 0.31mH
- Re
- 5.3Ω
- Sd
- 520cm²
- Cms
- 0.18mm/N
- Mms
- 49g
- Qes
- 0.64
- Qms
- 2.9
- Qts
- 0.52
- SPL
- 94dB
- Vas
- 67.4L
- Xmax
- 4.9mm
- Xmech
- 8.5
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 99.6dB
- Low limit
- 49Hz
- Power Program
- 500
- Calculated sensitivity †
- 94dB
- High limit
- 4300Hz
- Manufacturer sensitivity
- 99.6dB
- Weight
- 2.3kg
- Diameter
- 314.5mm
- Depth
- 153.9mm
- Cutout
- 280.9mm
- Bolt circle
- 295.1mm
02
Compare
Same-size drivers, compared with the DELTALITE 2512. Clear differences are green when better and red when worse.
This driverDELTALITE 2512
Best price
–
Fs
53 Hz
Qts
0.52
Vas
67.4 L
BL
11.6 T·m
Xmax
4.9 mm
Sensitivity
94 dB
Power
250 W
FaitalPRO12FE400
£58.53Fs55 Hz +4%
Qts0.57 +10%
Vas73.6 L +9%
BL11.5 T·m –
Xmax5.4 mm +11%, better
Sensitivity94.9 dB +0.9
PeerlessFSL-1220R02-08
£59.63Fs62 Hz +17%, worse
Qts0.55 +6%
Vas61.1 L −9%
BL13.3 T·m +15%, better
Xmax5.1 mm +3%
Sensitivity96 dB +2, better
FaitalPRO12FE300
£64.00Fs47 Hz −11%, better
Qts0.51 –
Vas83.7 L +24%, worse
BL12.5 T·m +8%
Xmax5.1 mm +3%
Sensitivity94.2 dB –
PRV Audio12W800A
£67.26Fs50 Hz −6%
Qts0.47 −10%
Vas93.9 L +39%, worse
BL12.7 T·m +10%
Xmax5.7 mm +17%, better
Sensitivity95.8 dB +1.8
£75.00
Fs50 Hz −6%
Qts0.51 –
Vas66 L –
BL16.4 T·m +41%, better
Xmax5.5 mm +12%, better
Sensitivity94 dB –
Beyma12CMV3
£77.53Fs52 Hz –
Qts0.55 +6%
Vas85 L +26%, worse
BL12.3 T·m +6%
Xmax7 mm +43%, better
Sensitivity95.2 dB +1.2
CelestionTRUVOX 1225
£89.02Fs60 Hz +14%, worse
Qts0.62 +20%, worse
Vas54.1 L −20%, better
BL13.5 T·m +16%, better
Xmax4.8 mm −3%
Sensitivity94.4 dB –
CIAREFXI12
£96.29Fs55 Hz +4%
Qts0.44 −15%, better
Vas70 L +4%
BL13.9 T·m +20%, better
Xmax5 mm –
Sensitivity95.8 dB +1.8
EminenceDELTA-12LFA
£104.72Fs51 Hz −4%
Qts0.47 −10%
Vas67.9 L –
BL14.1 T·m +22%, better
Xmax4.8 mm –
Sensitivity94.5 dB +0.5
EminenceDELTA-12LFC
£104.72Fs52 Hz –
Qts0.44 −15%, better
Vas63.7 L −6%
BL10.9 T·m −6%
Xmax4.8 mm –
Sensitivity94.8 dB +0.8
B&C320K/C-A
£107.29Fs82 Hz +54%, worse
Qts0.50 −4%
Vas53 L −21%, better
BL12.2 T·m +5%
Xmax2 mm −59%, worse
Sensitivity99.5 dB +5.5, better
CIARECMI320ND
£149.07Fs53 Hz –
Qts0.43 −17%, better
Vas70 L +4%
BL10.6 T·m −9%
Xmax5 mm –
Sensitivity95.8 dB +1.8
B&C12CLX64
£236.92Fs54 Hz –
Qts0.57 +10%
Vas74 L +10%
BL11.9 T·m –
Xmax5.5 mm +12%, better
Sensitivity94.8 dB +0.8
SB AudienceROSSO-12CX350
£251.15Fs49 Hz −8%
Qts0.49 −6%
Vas90.4 L +34%, worse
BL12.1 T·m +4%
Xmax8.2 mm +67%, better
Sensitivity95.1 dB +1.1
CelestionTF1230
No current priceFs59 Hz +11%, worse
Qts0.52 –
Vas51.1 L −24%, better
BL13.0 T·m +12%, better
Xmax5 mm –
Sensitivity94.1 dB –
CelestionTF1218
No current priceFs59 Hz +11%, worse
Qts0.52 –
Vas83.0 L +23%, worse
BL11.2 T·m −3%
Xmax2 mm −59%, worse
Sensitivity96.5 dB +2.5, better
JensenJN12-80TRS-8
No current priceFs72 Hz +35%, worse
Qts0.55 +6%
Vas56.5 L −16%, better
BL12.2 T·m +5%
Xmax1 mm −80%, worse
Sensitivity96.7 dB +2.7, better
LavoceFBASS12-20
No current priceFs53 Hz –
Qts0.46 −12%, better
Vas75.4 L +12%, worse
BL13.3 T·m +14%, better
Xmax4.3 mm −12%, worse
Sensitivity95.5 dB +1.5
PeerlessFSL-1230R04-04
No current priceFs56 Hz +5%
Qts0.54 +4%
Vas47.4 L −30%, better
BL11.9 T·m –
Xmax7.2 mm +46%, better
Sensitivity93.7 dB –
JensenJN12-100TRS-8
No current priceFs72 Hz +36%, worse
Qts0.52 –
Vas55.9 L −17%, better
BL12.9 T·m +11%, better
Xmax1 mm −80%, worse
Sensitivity96.5 dB +2.5, better
No current price
Fs50 Hz −6%
Qts0.64 +23%, worse
Vas78.1 L +16%, worse
BL13 T·m +12%, better
Xmax5.3 mm +7%
Sensitivity93.3 dB −0.7
Sica12 C 2 CP
No current priceFs58 Hz +10%
Qts0.45 −13%, better
Vas74.3 L +10%, worse
BL13.7 T·m +18%, better
Xmax4.5 mm −8%
Sensitivity96.8 dB +2.8, better
P.Audio12BMA-300B
No current priceFs61 Hz +15%, worse
Qts0.49 −6%
Vas54.4 L −19%, better
BL13.7 T·m +18%, better
Xmax4 mm −18%, worse
Sensitivity95.7 dB +1.7
LavoceLBASS12-15
No current priceFs38 Hz −28%, better
Qts0.48 −8%
Vas160.9 L +139%, worse
BL10.1 T·m −13%, worse
Xmax4.7 mm −4%
Sensitivity94 dB –
EminenceGUIT-FIDDLE
No current priceFs82 Hz +54%, worse
Qts0.56 +8%
Vas57.8 L −14%, better
BL13.1 T·m +13%, better
Xmax0.8 mm −84%, worse
Sensitivity99.4 dB +5.4, better
REDCATT121FIND
No current priceFs63 Hz +19%, worse
Qts0.60 +15%, worse
Vas49.8 L −26%, better
BL12.9 T·m +11%, better
Xmax3.8 mm −23%, worse
Sensitivity94.9 dB +0.9
P.AudioEX12-300S
No current priceFs66 Hz +24%, worse
Qts0.54 +4%
Vas45.9 L −32%, better
BL13.7 T·m +18%, better
Xmax3.1 mm −37%, worse
Sensitivity95.2 dB +1.2
Acoustic EleganceIB12AU-8
No current priceFs24 Hz −55%, better
Qts0.51 –
Vas160 L +137%, worse
BL12.5 T·m +8%
Xmax18 mm +267%, better
Sensitivity87.8 dB −6.2, worse
HiViSS12
No current priceFs33 Hz −38%, better
Qts0.55 +6%
Vas105.9 L +57%, worse
BL10.7 T·m −8%
Xmax7.3 mm +49%, better
Sensitivity90 dB −4, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
