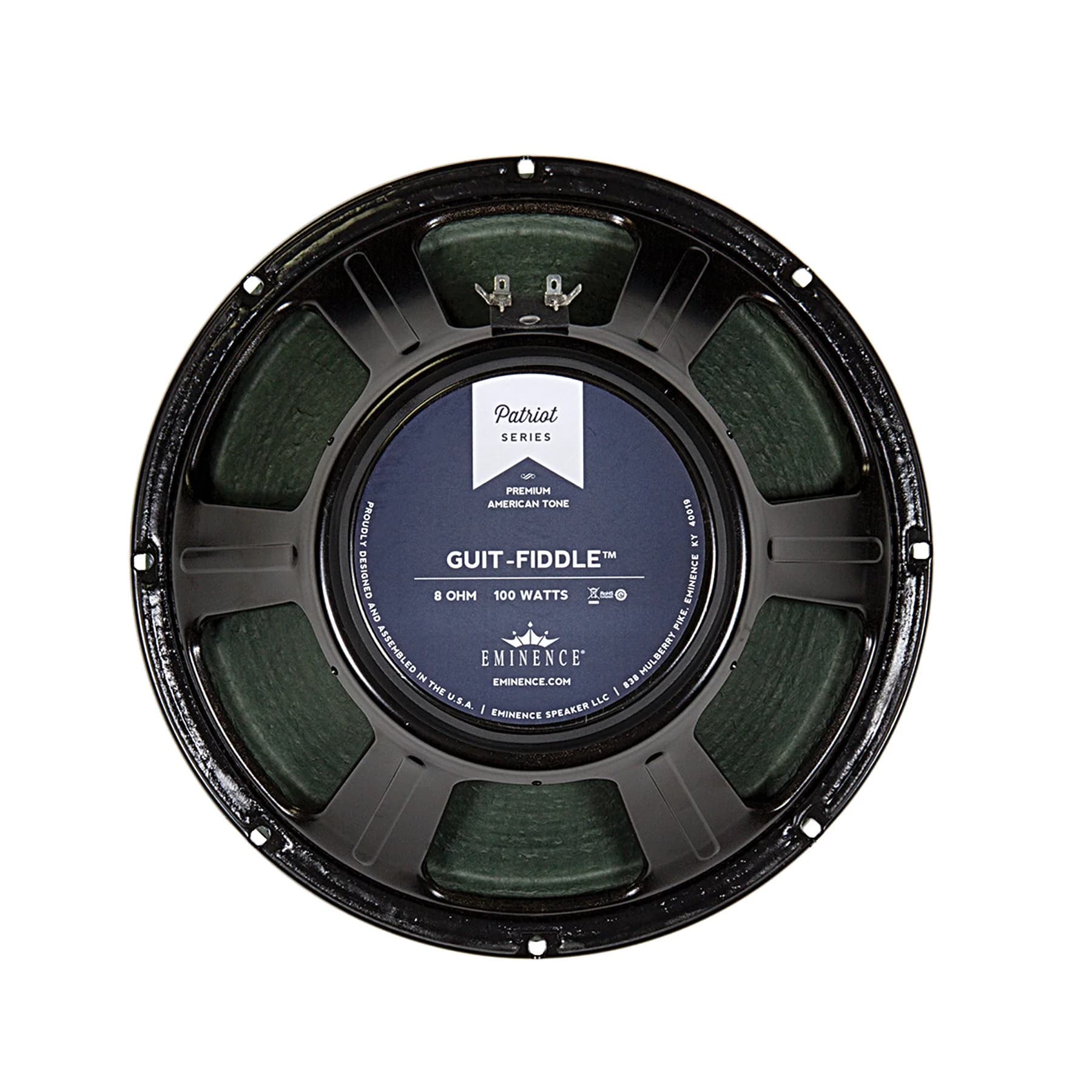

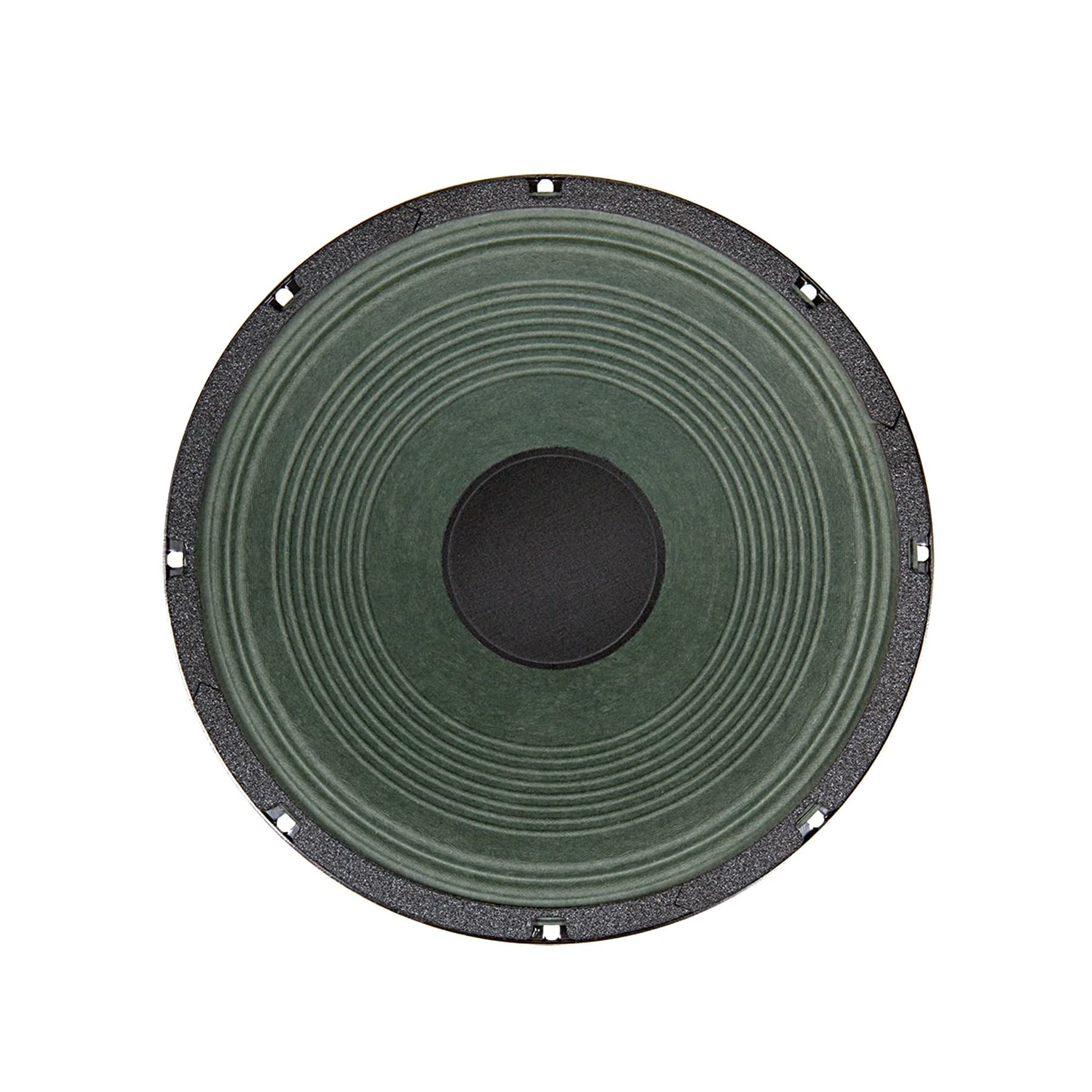

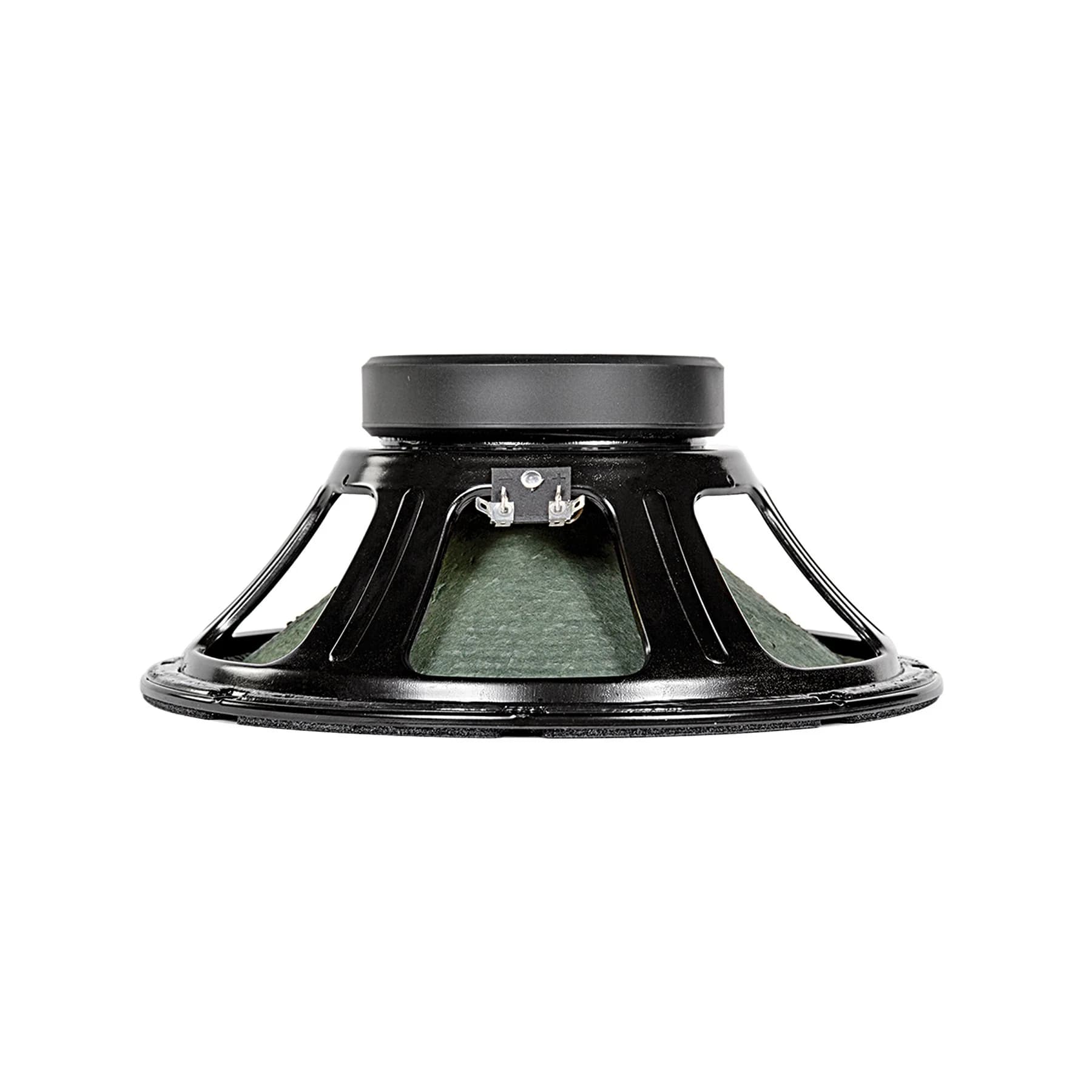

Eminence GUIT-FIDDLE 8Ω
8 Ω · 80–4500 Hz
No price for delivery to the UK
- Fs
- 82Hz
- Xmax
- 0.8mm
- SPL
- 99dB
- Pe
- 100W
- BL
- 13.1T·m
- Vd
- 43cm³
- Qts
- 0.56
- Vas
- 58L
Eminence GUIT-FIDDLE is a 12-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 82 Hz, Qts 0.56, Vas 57.8 L, Xmax 0.8 mm, sensitivity 99.4 dB, plus 43 cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 82Hz
- Qts
- 0.56
- Qes
- 0.58
- Qms
- 15.5
- Vas
- 57.8L
- Re
- 7.3Ω
- Le
- 0.63mH
Motor and cone
- BL
- 13.1T·m
- Sd
- 545cm²
- Mms
- 26g
- Xmax
- 0.8mm
- Vd †
- 43cm³
Power and response
- Sensitivity †
- 99.4dB
- Manufacturer sensitivity
- 100.1dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 80–4500Hz
- EBP †
- 141 · Leans vented
Size and mounting
- Diameter
- 309.1mm
- Cutout
- 282.7mm
- Depth
- 130.3mm
- Weight
- 3.6kg
Other published values
- Cms
- 0.14mm/N
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 13.1T·m
- Fs
- 82Hz
- Le
- 0.63mH
- Re
- 7.3Ω
- Sd
- 545cm²
- Cms
- 0.14mm/N
- Mms
- 26g
- Qes
- 0.58
- Qms
- 15.5
- Qts
- 0.56
- SPL
- 99.4dB
- Vas
- 57.8L
- Xmax
- 0.8mm
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 100.1dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 99.4dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 100.1dB
- Weight
- 3.6kg
- Diameter
- 309.1mm
- Depth
- 130.3mm
- Cutout
- 282.7mm
