Overview
LF DriverGA series
Eminence

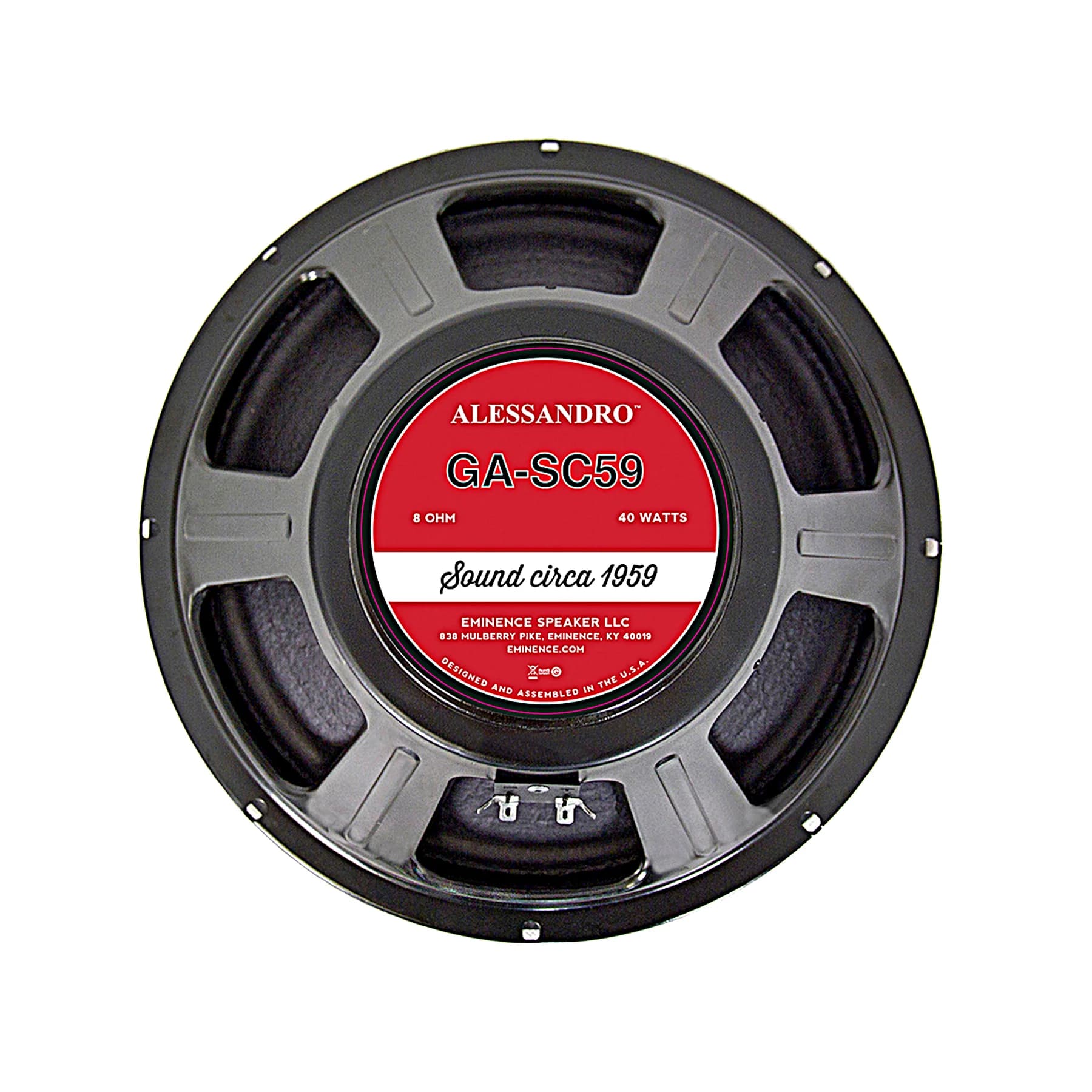

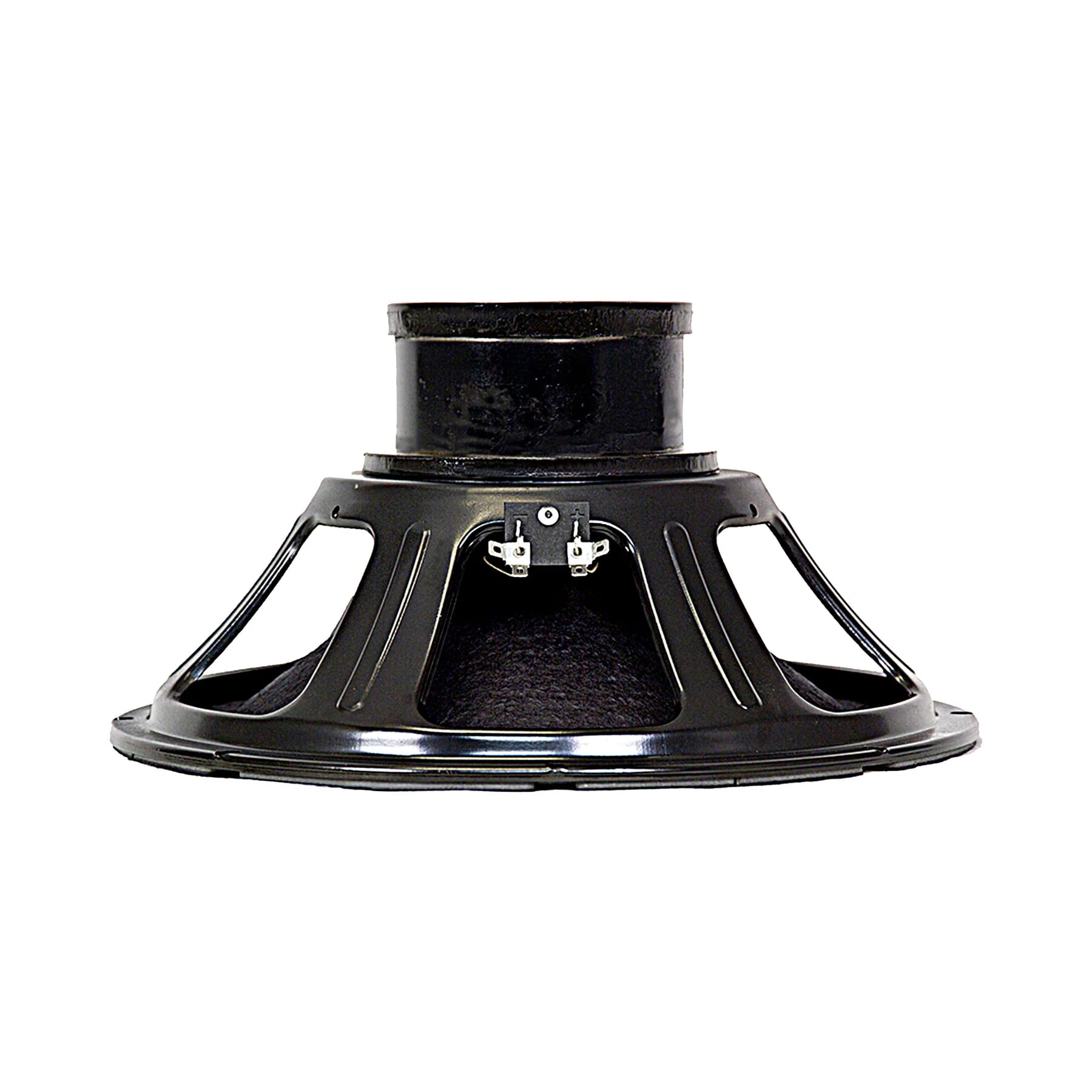

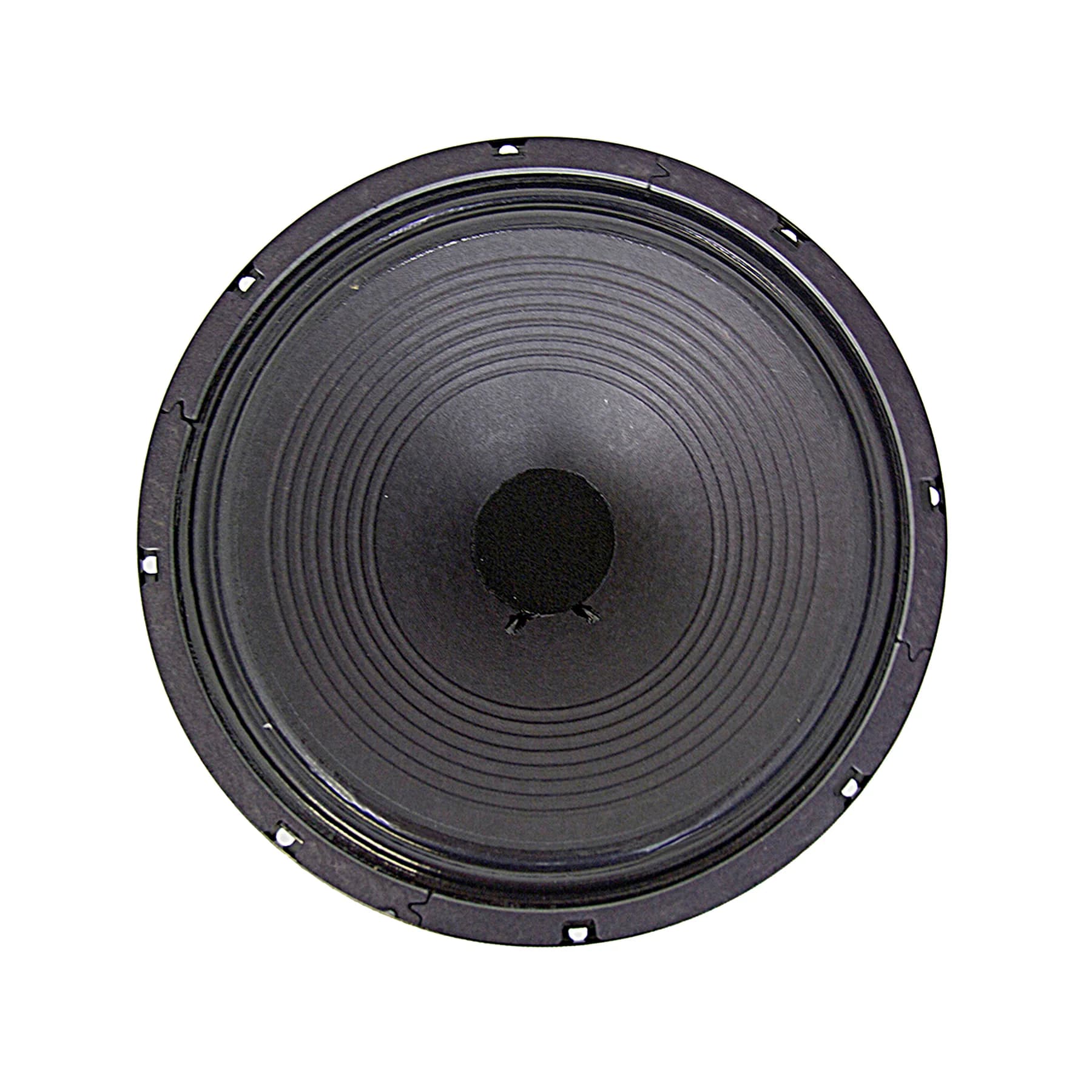

Eminence GA-SC59
Eminence GA-SC59 is a 12" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 89Hz, Qts 0.61, Vas 41.2L, Xmax 1.6mm, sensitivity 98.7dB, plus 84cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
40W
Sensitivity
98.7dB
100.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
141
Vented alignment
Vd
84cm³
T/S Parameters
Valid
Fs89Hz
Qts0.61
Qes0.63
Qms19.7
Vas41.2L
Re7.4Ω
Le0.61mH
BL13.6Tm
Sd520cm²
Mms28g
Xmax1.6mm
SPL99dB
Power40W
Impedance8Ω
F Low80Hz
F High5200Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.8kg
Diameter309.1mm
Overall Depth158.8mm
Cutout Diameter282.7mm
