LF Driver
Fane

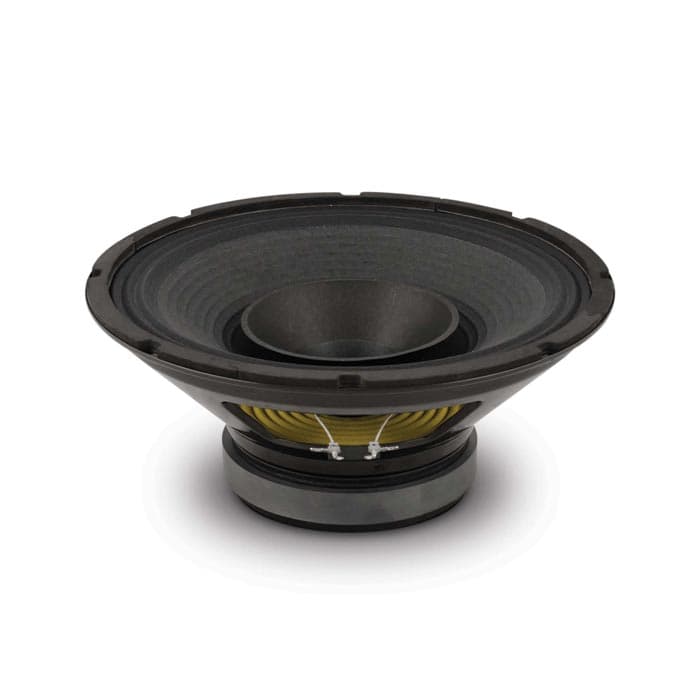

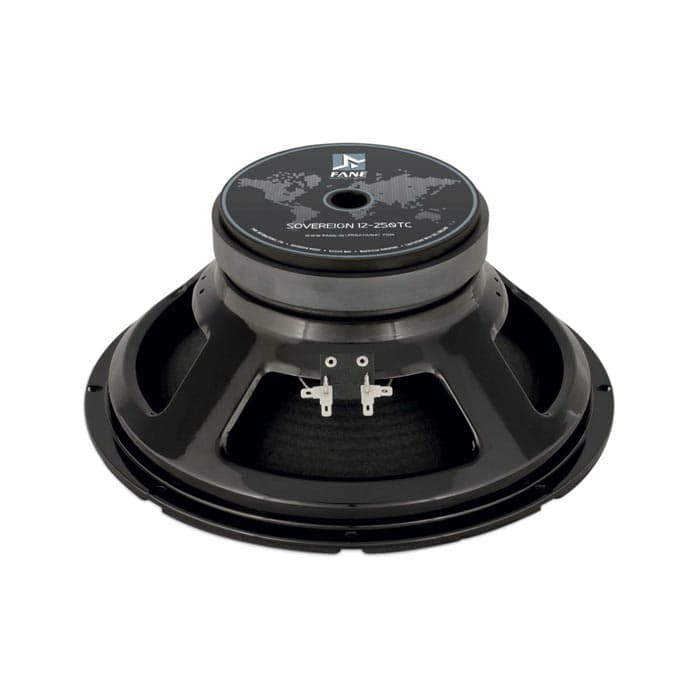

Fane SOVEREIGN 12-250TC
Fane SOVEREIGN 12-250TC is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 50Hz, Qts 0.64, Vas 78.1L, Xmax 3.5mm, sensitivity 93.3dB, plus 186cm³ Vd and 69 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £77.00.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.3dB
100.0dBmanufacturer; using T/S-derived value (6.7dB delta).
EBP
69
Either alignment
Vd
186cm³
T/S Parameters
Valid
Fs50Hz
Qts0.64
Qes0.72
Qms7.6
Vas78.1L
Re7.2Ω
Le1.56mH
BL13.0Tm
Sd531cm²
Mms52g
Xmax3.5mm
SPL93dB
Power250W
Impedance8Ω
F Low45Hz
F High17000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£77.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.5kg
Diameter304.8mm
Overall Depth137.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
SOVEREIGN 12-250TC
12"
Best current price
£77.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity

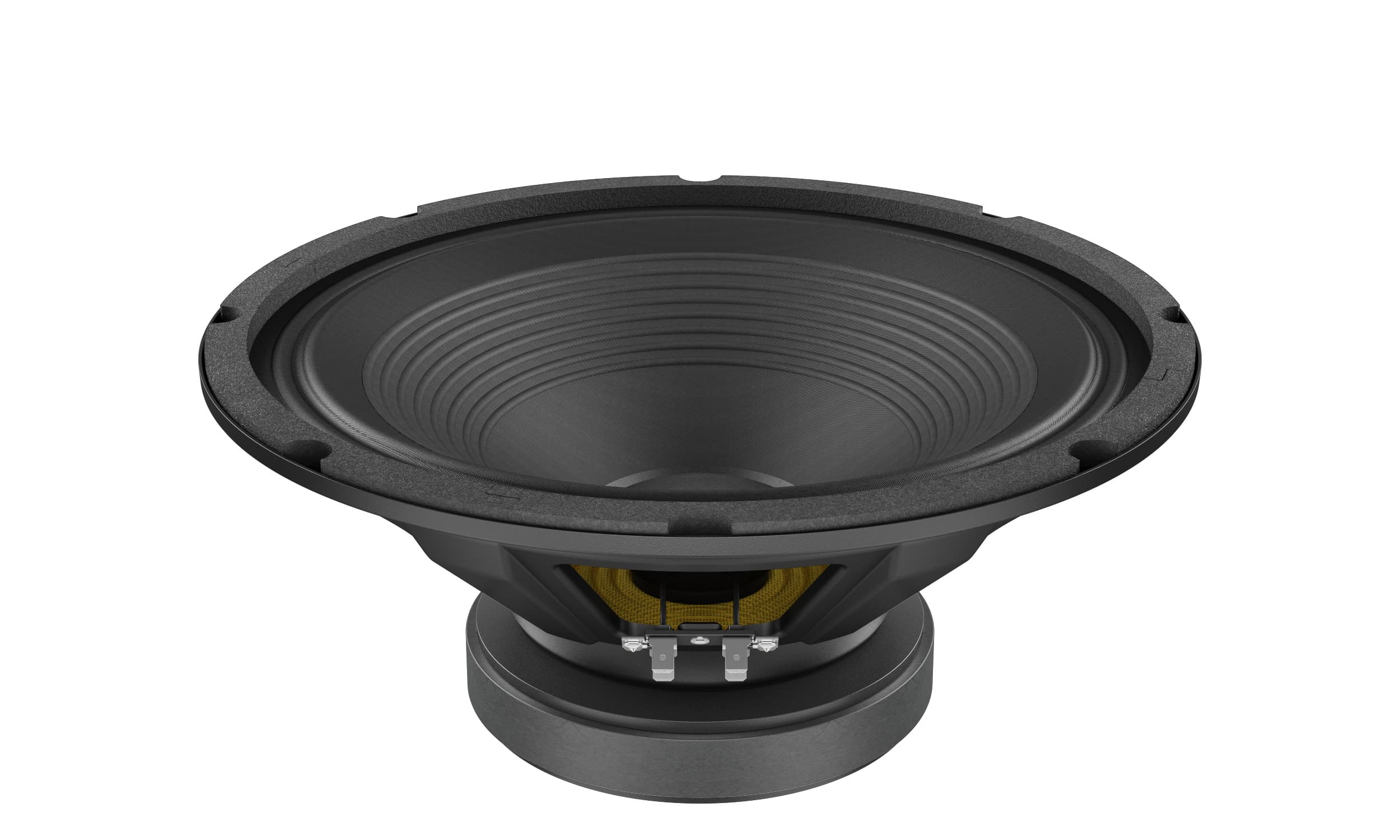

Lavoce
WSF121.70G
12"
Xmax2.7mm-23%
Qts0.59-8%
BL13.6Tm+5%
Vas41L-47%
Qes0.62-14%
