LF DriverTRUVOX series
Celestion

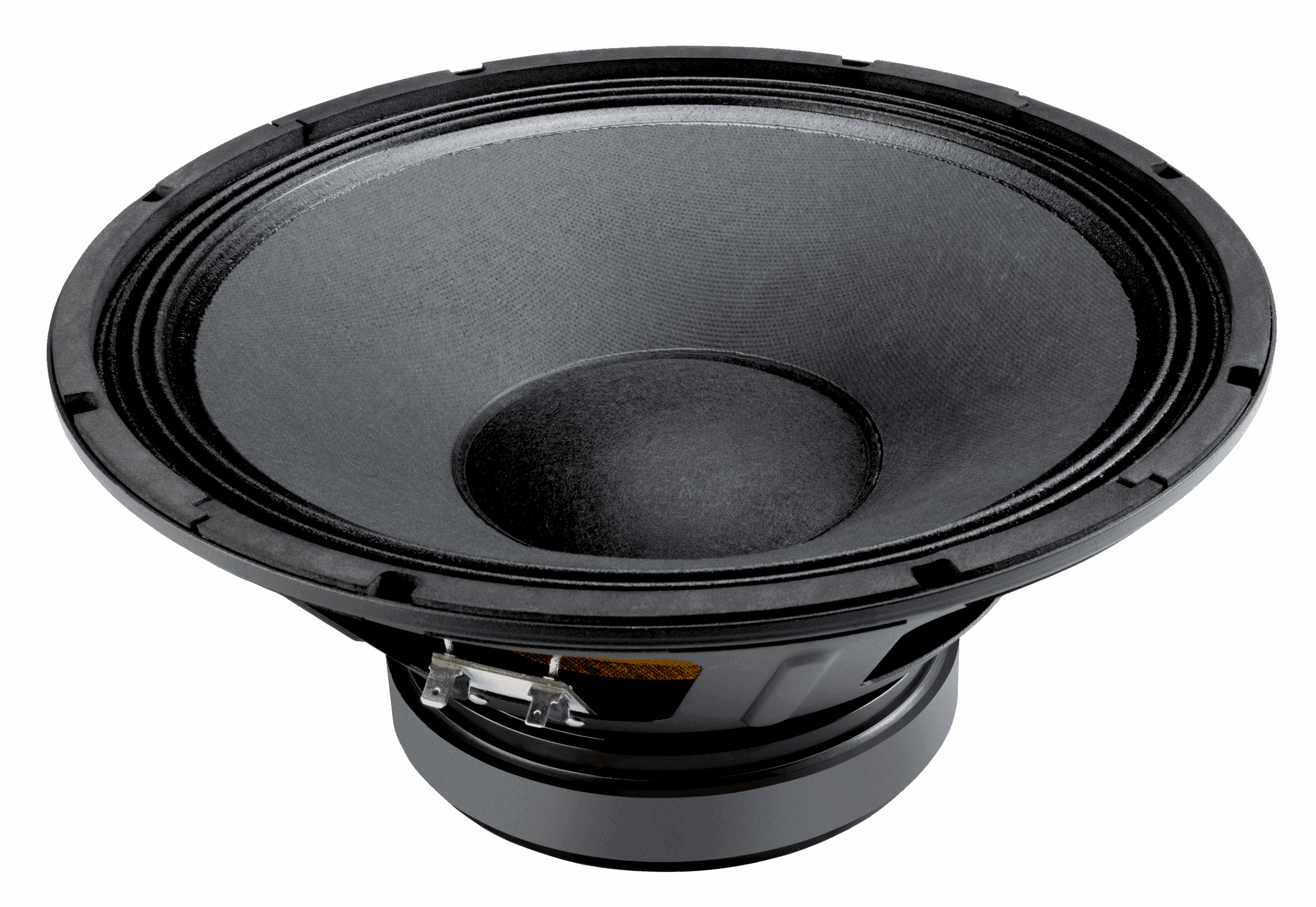

Celestion TRUVOX 1225
Celestion TRUVOX 1225 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 60Hz, Qts 0.62, Vas 54.1L, Xmax 4.8mm, sensitivity 94.4dB, plus 252cm³ Vd and 89 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £79.56.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
89
Either alignment
Vd
252cm³

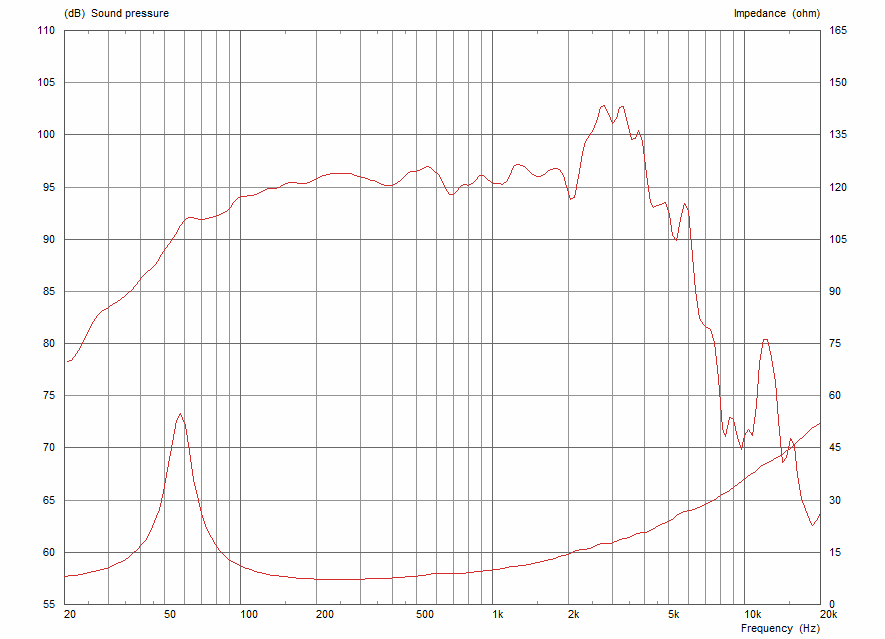

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response130 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
130 plotted pointsMedium confidence134 selected pixels of 266
T/S Parameters
Valid
Fs60Hz
Qts0.62
Qes0.68
Qms7.4
Vas54.1L
Re6.4Ω
Le0.68mH
BL13.5Tm
Sd531cm²
Mms51g
Xmax4.8mm
SPL94dB
Power300W
Impedance8Ω
F Low50Hz
F High4000Hz
Voice Coil64mm
Pricing & availability
Price definitionsPrice movement
Best current price
£79.56
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter305.6mm
Overall Depth131.4mm
Cutout Diameter284.5mm
Bolt Circle Diameter294.4mm
