Eminence MAN O WAR 8Ω
8 Ω · 80–5000 Hz
£99.00
SteadyLean Business · All 3 offers
- Fs
- 91Hz
- Xmax
- 0.8mm
- SPL
- 98dB
- Pe
- 120W
- BL
- 12.3T·m
- Vd
- 42cm³
- Qts
- 0.68
- Vas
- 38L

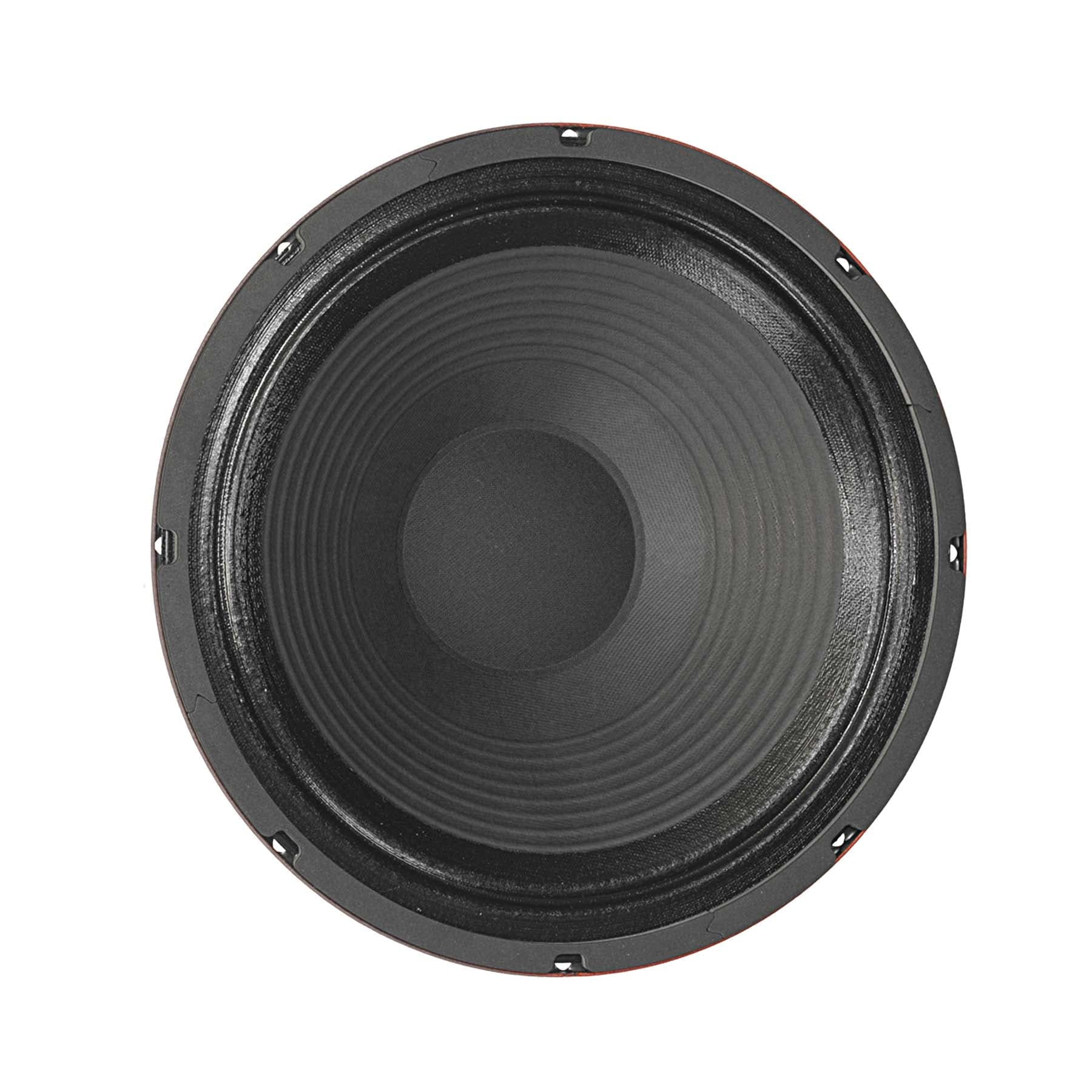

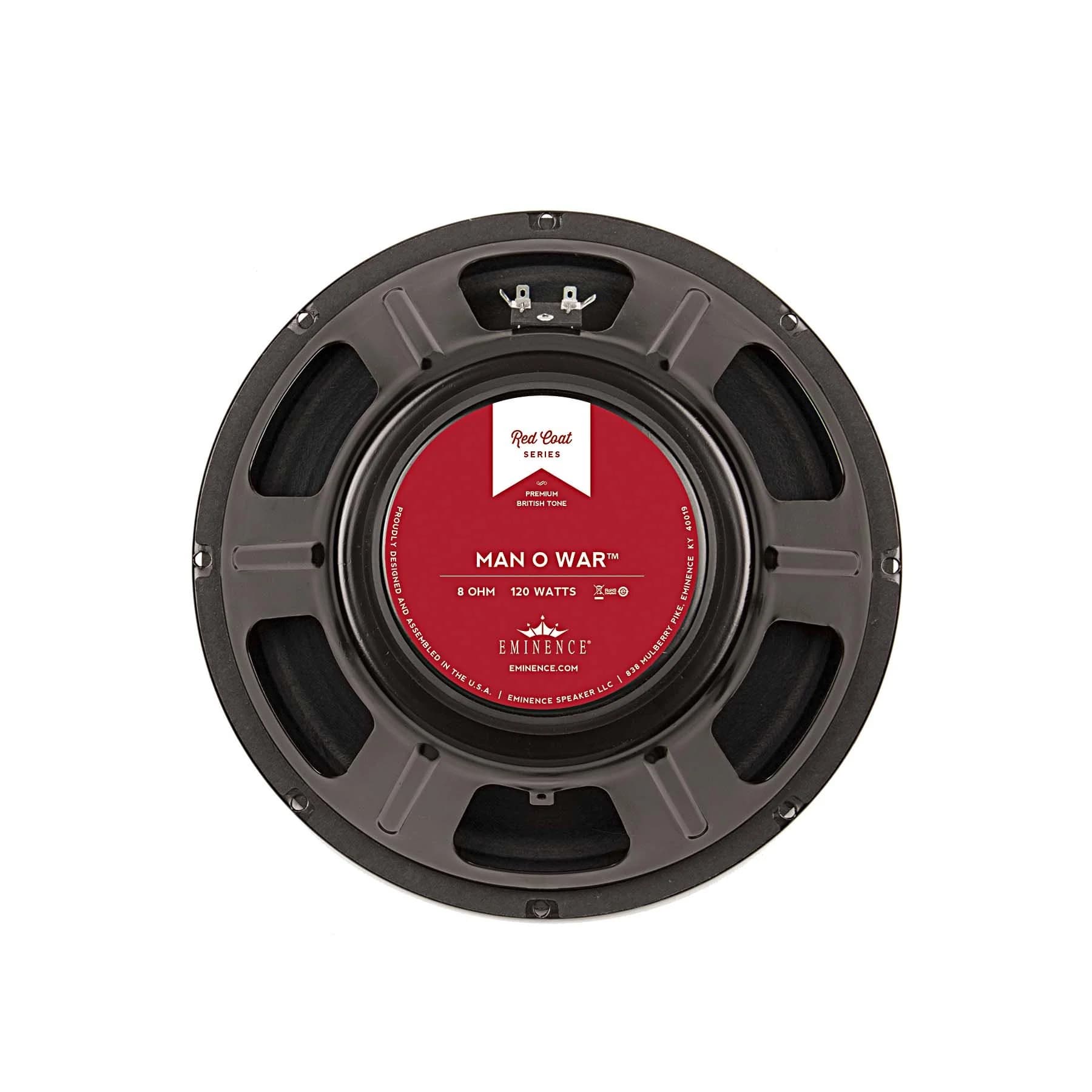

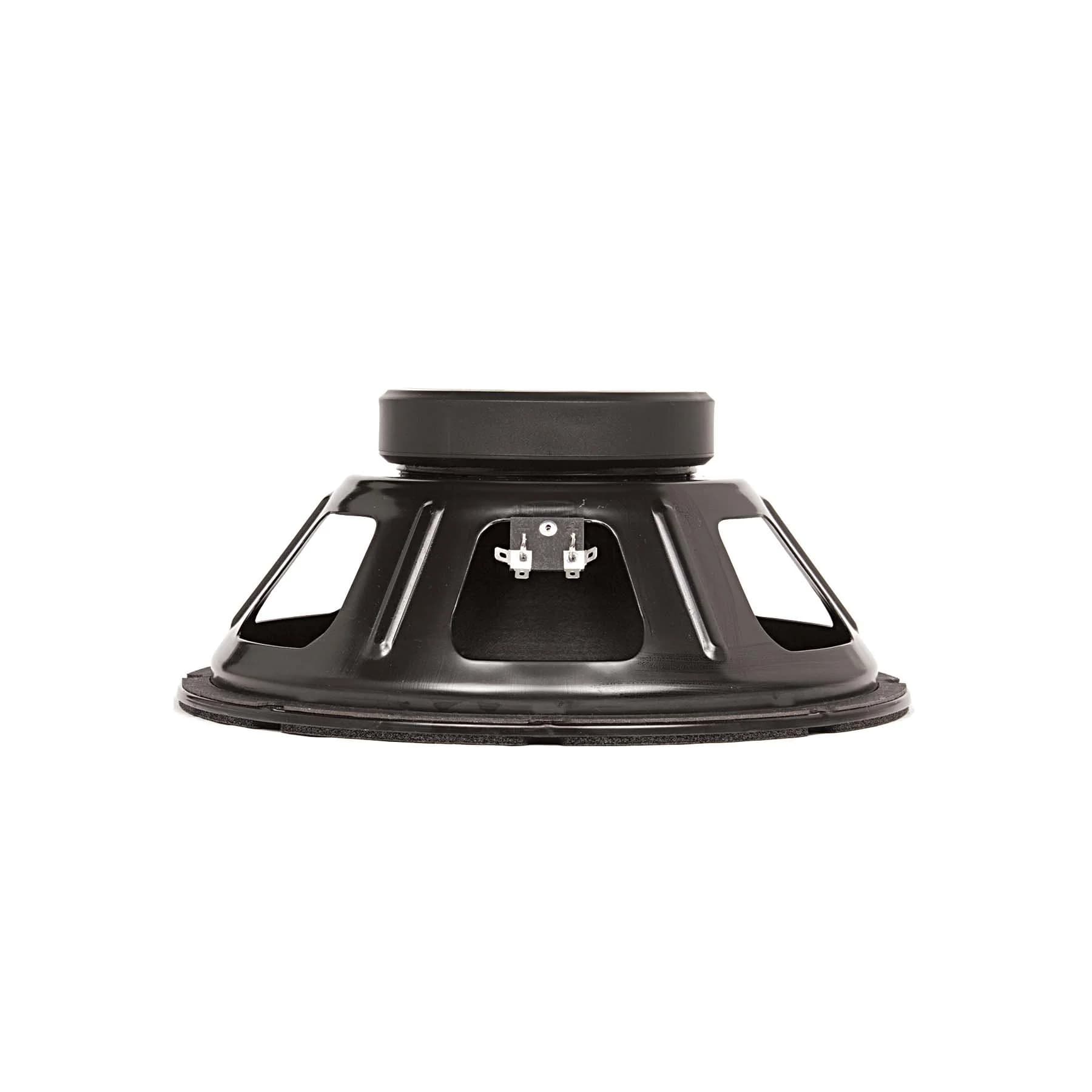

Eminence MAN O WAR is a 12-inch 8 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 91 Hz, Qts 0.68, Vas 38 L, Xmax 0.8 mm, sensitivity 98 dB, plus 42 cm³ Vd and 126 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £99.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 91Hz
- Qts
- 0.68
- Qes
- 0.72
- Qms
- 11.7
- Vas
- 38L
- Re
- 6.2Ω
- Le
- 0.43mH
Motor and cone
- BL
- 12.3T·m
- Sd
- 520cm²
- Mms
- 31g
- Xmax
- 0.8mm
- Vd †
- 42cm³
Power and response
- Sensitivity †
- 98dB
- Manufacturer sensitivity
- 101.6dB
- Power
- 120W
- Impedance
- 8Ω
- Range
- 80–5000Hz
- EBP †
- 126 · Leans vented
Size and mounting
- Diameter
- 305.6mm
- Cutout
- 281.2mm
- Depth
- 132.1mm
- Weight
- 3.7kg
Other published values
- Cms
- 0.10mm/N
Sensitivity shows 98.0 dB, calculated from the T/S values. Eminence publishes 101.6 dB, 3.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 12.3T·m
- Fs
- 91Hz
- Le
- 0.43mH
- Re
- 6.2Ω
- Sd
- 520cm²
- Cms
- 0.10mm/N
- Mms
- 31g
- Qes
- 0.72
- Qms
- 11.7
- Qts
- 0.68
- SPL
- 98dB
- Vas
- 38L
- Xmax
- 0.8mm
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 101.6dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 98dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 101.6dB
- Weight
- 3.7kg
- Diameter
- 305.6mm
- Depth
- 132.1mm
- Cutout
- 281.2mm
