Overview
LF DriverSWAMP THANG series
Eminence
Eminence SWAMP THANG-16

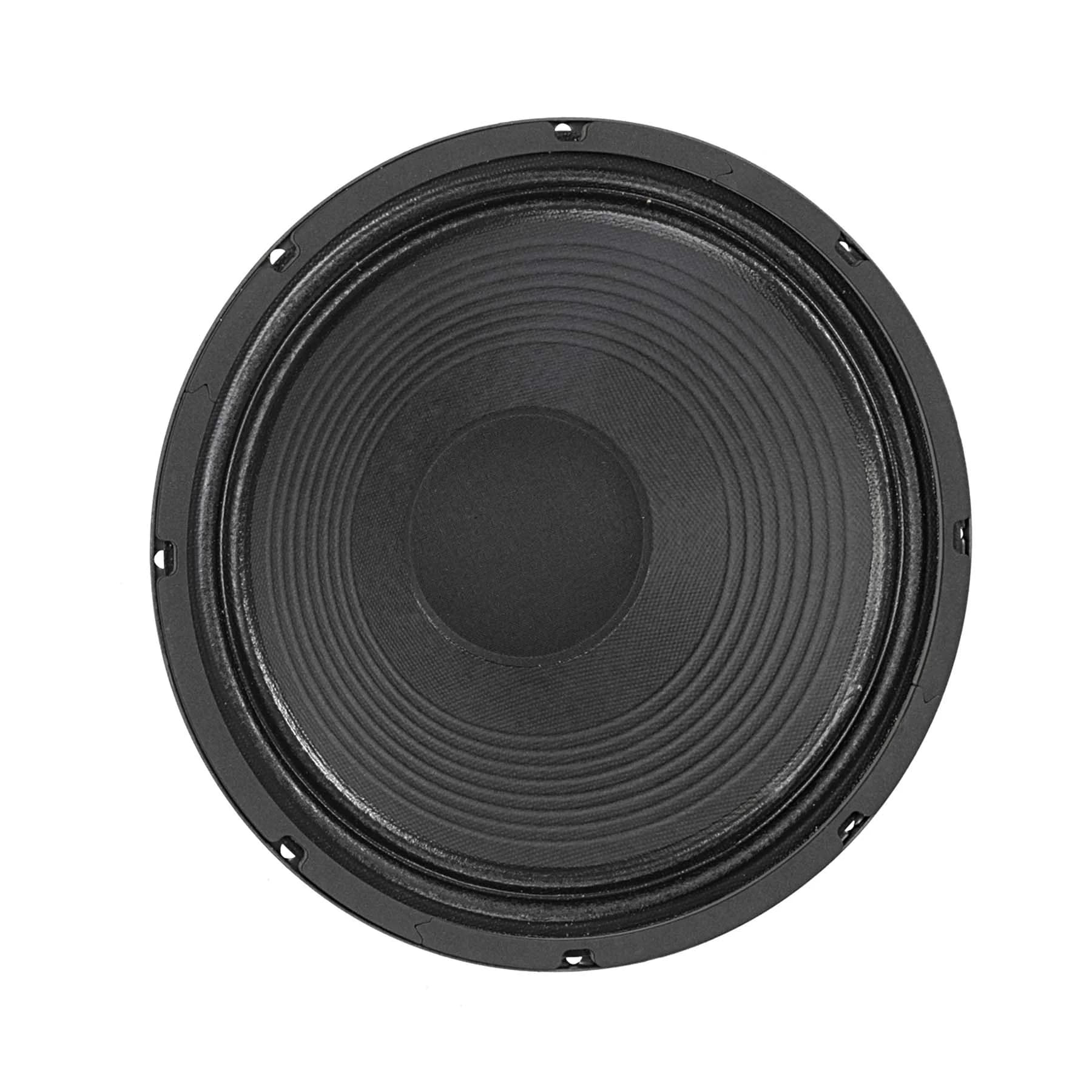

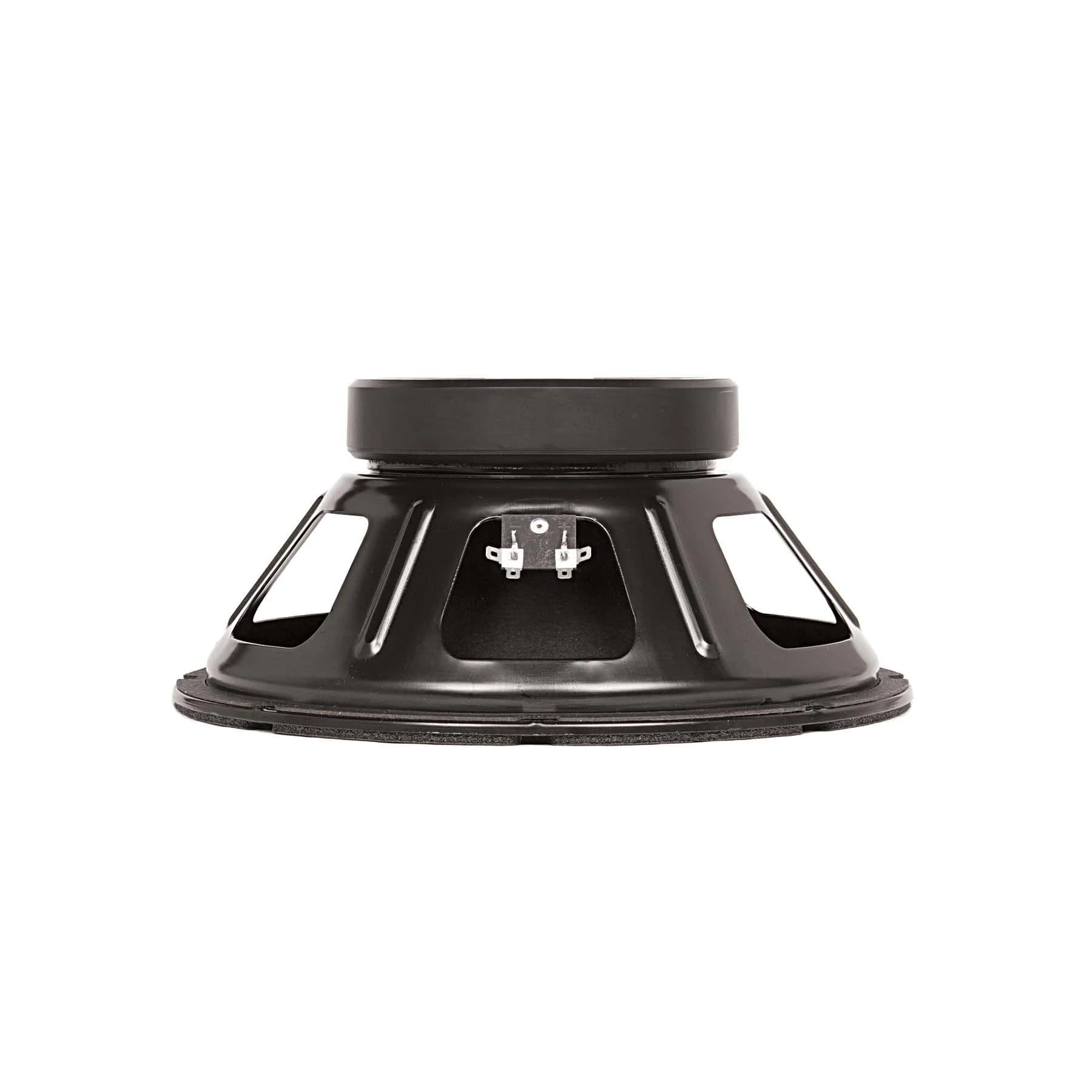

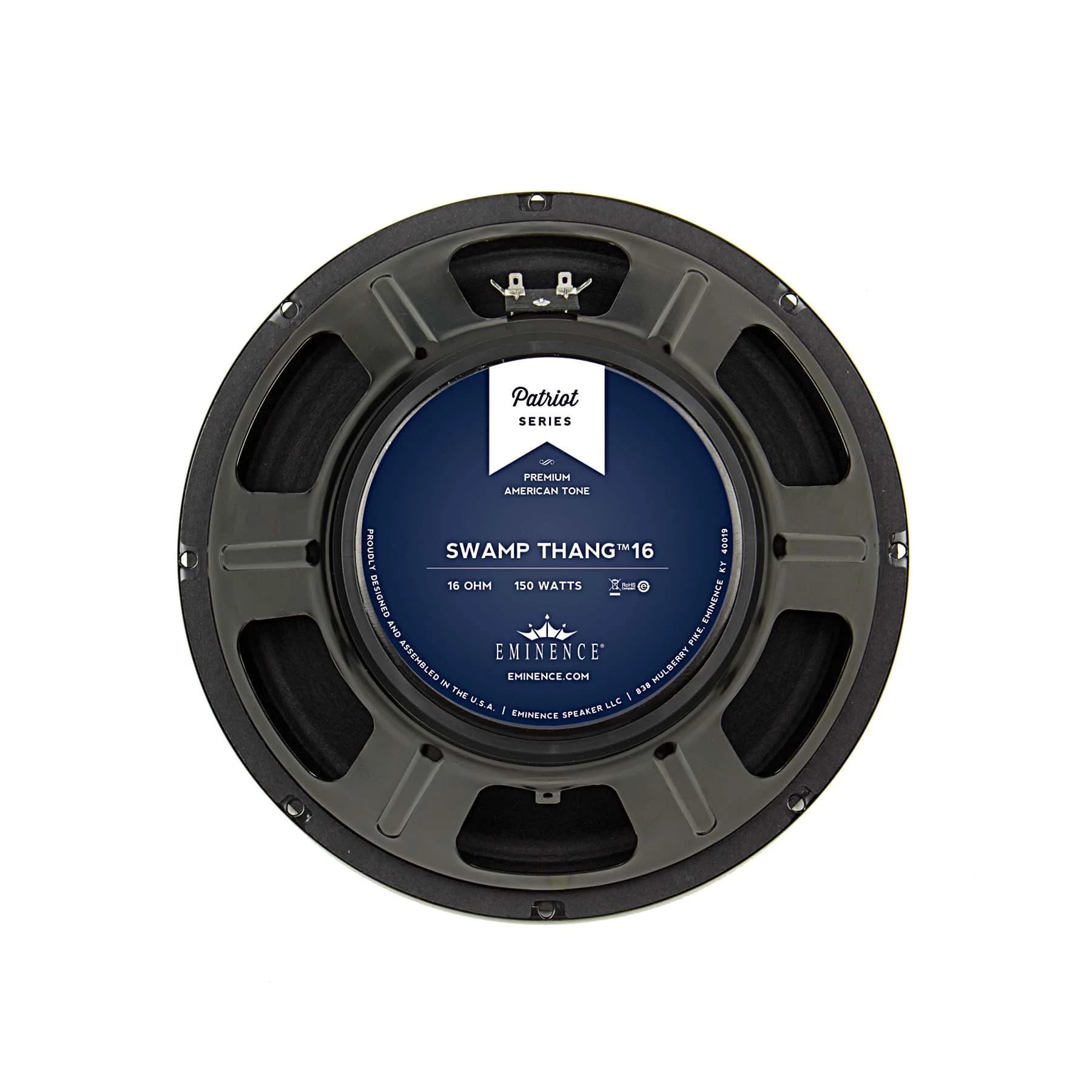

Eminence SWAMP THANG-16 is a 12" 16 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 113Hz, Qts 0.62, Vas 26.4L, Xmax 0.8mm, sensitivity 99.6dB, plus 43cm³ Vd and 169 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
16Ω
RMS Power
150W
Sensitivity
99.6dB
102.3dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
169
Vented alignment
Vd
43cm³
T/S Parameters
Valid
Fs113Hz
Qts0.62
Qes0.67
Qms8.6
Vas26.4L
Re14.7Ω
Le0.67mH
BL21.8Tm
Sd532cm²
Mms30g
Xmax0.8mm
SPL100dB
Power150W
Impedance16Ω
F Low70Hz
F High5100Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter305.6mm
Overall Depth132.1mm
Cutout Diameter281.2mm
