12-inch LF driver · 12BG series · 76 mm voice coil · 500 W

B&C 12BG76 8Ω

Name: B&C 12BG76 8 Ohm
Brand: B&C
SKU: 12BG76
Availability: InStock

8 Ω · 45–1000 Hz

£250.08

Steady

JP Leisure · In stock · All 6 offers

Open in 00 Simulator

Fs: 44Hz
Xmax: 9.5mm
SPL: 90dB
Pe: 500W
BL: 22.7T·m
Vd: 496cm³
Qts: 0.41
Vas: 32L

See all 27 specs

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

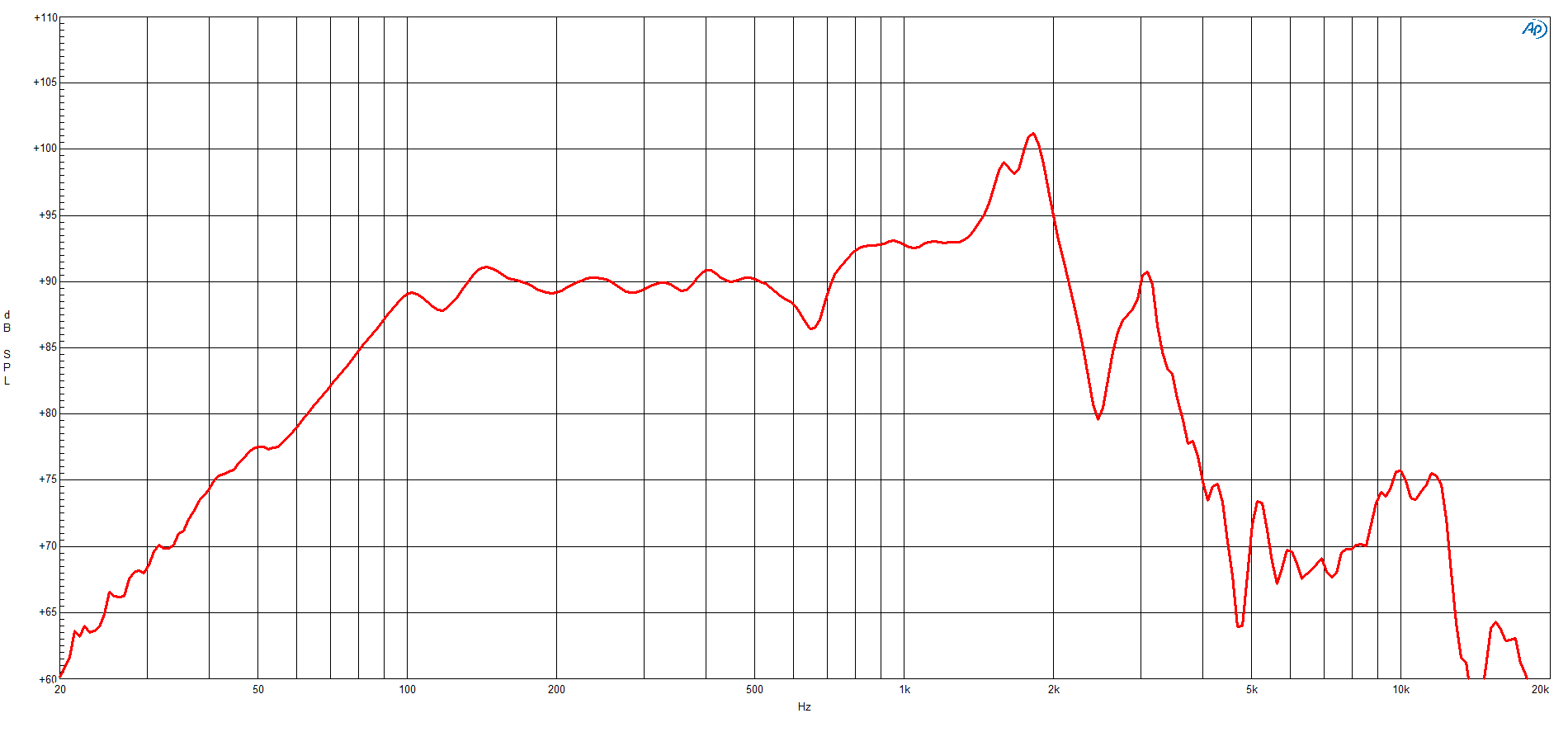

free-air SPL
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 53dbb55e596b…Medium confidence4,438 selected pixels of 4,627
Manufacturer datasheet, page 3

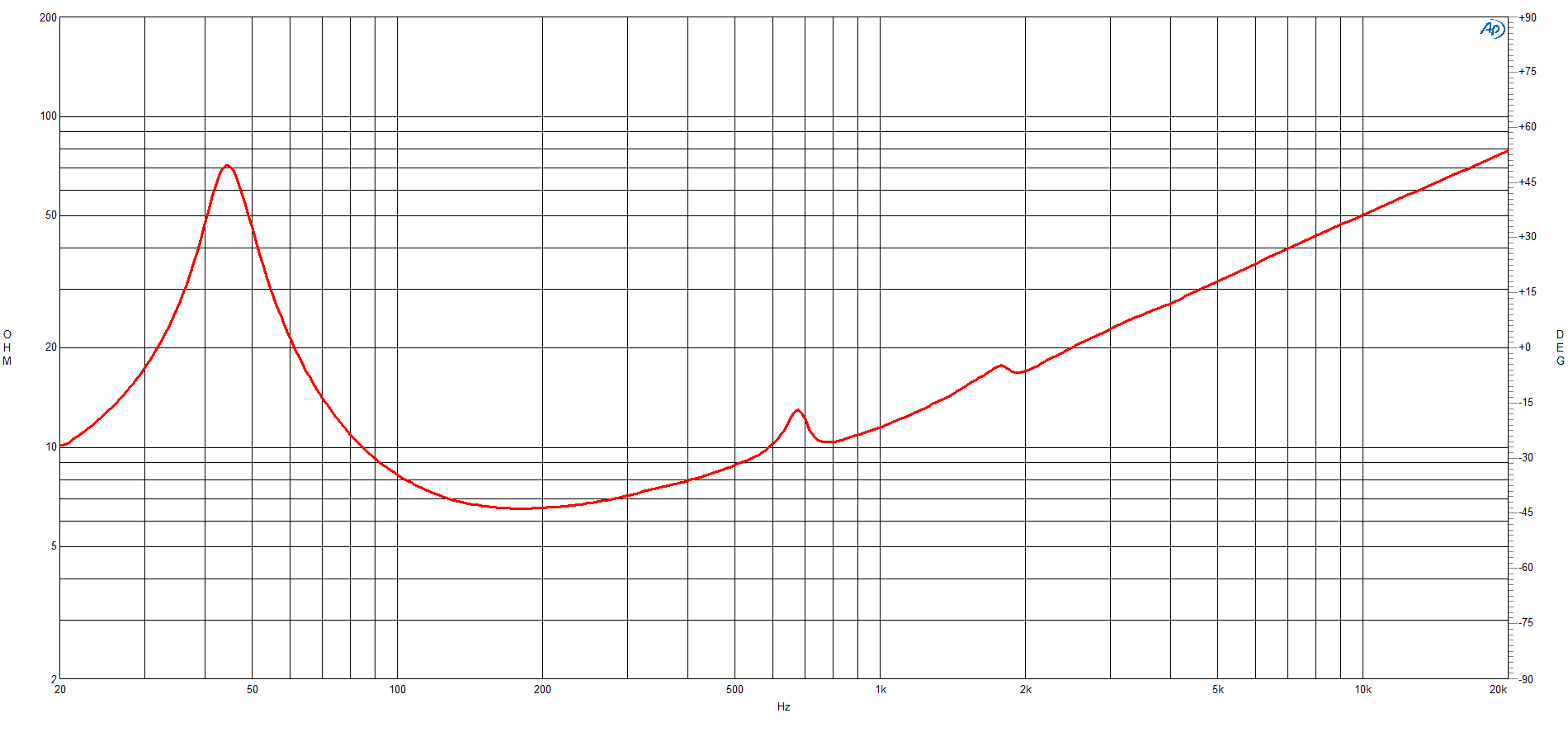

free-air impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 53dbb55e596b…Medium confidence2,850 selected pixels of 2,850
Manufacturer datasheet, page 3

Published graphs

Specifications

Published by B&C

Manufacturer page

Datasheet PDF

B&C 12BG76 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.41, Vas 32 L, Xmax 9.5 mm, sensitivity 89.9 dB, plus 496 cm³ Vd and 100 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £250.08.

The published T/S values agree with each other

Thiele/Small

Fs: 44Hz
Qts: 0.41
Qes: 0.44
Qms: 5.9
Vas: 32L
Re: 5.4Ω
Le: 1.10mH

Motor and cone

BL: 22.7T·m
Sd: 522cm²
Mms: 148g
Xmax: 9.5mm
Vd †: 496cm³
Voice coil: 76mm
Flux density: 1.25T

Power and response

Sensitivity †: 89.9dB
Manufacturer sensitivity: 92dB
Power: 500W
Nominal power: 500W
Impedance: 8Ω
Min. impedance: 6.5Ω
Range: 45–1000Hz
EBP †: 100 · Sealed or vented

Size and mounting

Diameter: 315mm
Cutout: 284mm
Bolt circle: 298mm
Depth: 161mm
Weight: 5.3kg

Sensitivity shows 89.9 dB, calculated from the T/S values. B&C publishes 92.0 dB, 2.1 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else B&C lists

LF

BL: 22.7T·m
Fs: 44Hz
Le: 1.10mH
Re: 5.4Ω
Sd: 522cm²
Mms: 148g
Qes: 0.44
Qms: 5.9
Qts: 0.41
SPL: 89.9dB
Vas: 32L
Xmax: 9.5mm
Power: 500W
Impedance: 8Ω
Flux density: 1.25T
Sensitivity: 92dB
Low limit: 45Hz
Nominal power: 500W
Calculated sensitivity †: 89.9dB
High limit: 1000Hz
Manufacturer sensitivity: 92dB
Min. impedance: 6.5Ω
Voice coil: 76mm
Weight: 5.3kg
Diameter: 315mm
Depth: 161mm
Cutout: 284mm
Bolt circle: 298mm
Bl: 22.7 Tm
Fs: 44 Hz
Le: 1.1 mH
Re: 5.4 Ω
Sd: 522 cm² (80.91 in²)
Ebp: 100 Hz
Mms: 148 g
Qes: 0.44
Qms: 5.9
Qts: 0.41
Vas: 32 dm³ (1.13 ft³)
Η0: 0.65 %
Cone: RCK12BG768
Xmax: 9.5 mm
Xvar: 14 mm
Depth: 161 mm (6.34 in)
Spider: Double Silicone
Cone shape: Radial
Net weight: 5.3 kg (11.68 lb)
Pole design: T-Pole
Sensitivity: 92 dB
Flux density: 1.25 T
Shipping box: 360x360x200 mm (14.17x14.17x7.87 in)
Winding depth: 25 mm (0.98 in)
Shipping units: 1 pcs
Surround shape: Roll
Former material: Glass Fibre
Frequency range: 45 Hz - 1000 Hz
Magnet material: Neodymium Ring
Shipping weight: 6.2 kg (13.67 lb)
Nominal diameter: 320 mm (12 in)
Overall diameter: 315 mm (12.4 in)
Winding material: Copper
Minimum impedance: 6.5 Ω
Nominal impedance: 8 Ω
Magnetic gap depth: 11.5 mm (0.45 in)
Recommended tuning: 42 Hz
Voice coil diameter: 76 mm (3 in)
Bolt circle diameter: 298 mm (11.73 in)
Recommended enclosure: 40 dm³ (1.41 ft³)
Woofer cone treatment: TWP Waterproof Both Sides
Baffle cutout diameter: 284 mm (11.18 in)
Nominal power handling: 500 W
Continuous power handling: 1000 W
Flange and gasket thickness: 21 mm (0.83 in)
Air volume occupied by driver: 2 dm³ (0.07 ft³)

Designs

Cabinets for the 12BG76: a design and a suggested box from B&C.

All 12BG76 designs How we find designs

B&C’s design

From the maker, with plans to download

Picture: B&C

B&C design

S12BP

12" 1000W 6th Order Bandpass Subwoofer

Drivers: 1 × 12BG76, 8 Ω
Output: 129 dB peak, CEA-2010B
Power: 1,000 W

Plans · ZIP B&C designs

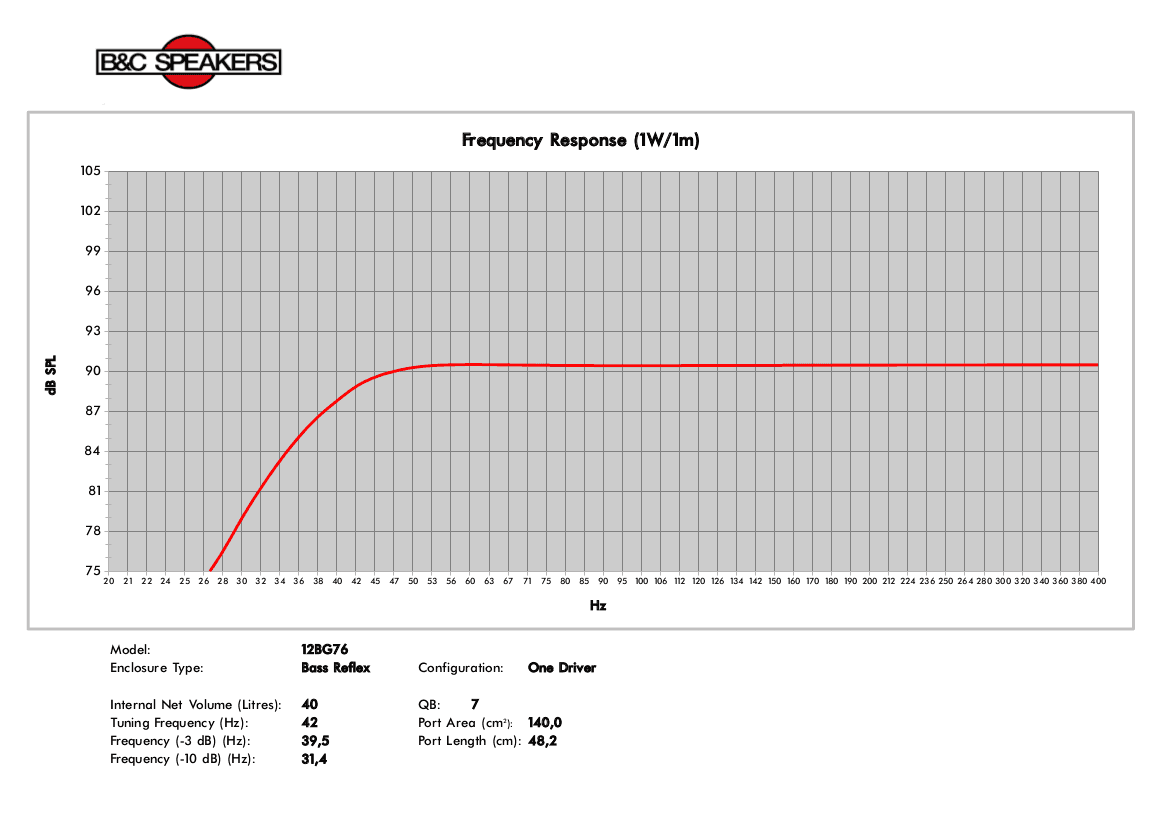

B&C’s suggested box

From B&C’s 12BG76 page

B&C’s suggestion40 L vented boxFrom B&C’s 12BG76 page

Net volume: 40L
Tuning: 42Hz

B&C gives the volume and tuning; the port is sized for the driver when you open it.

Open this box in 00 Simulator

Modelling the box in 00 Simulator…
