LF DriverXL series
FaitalPRO

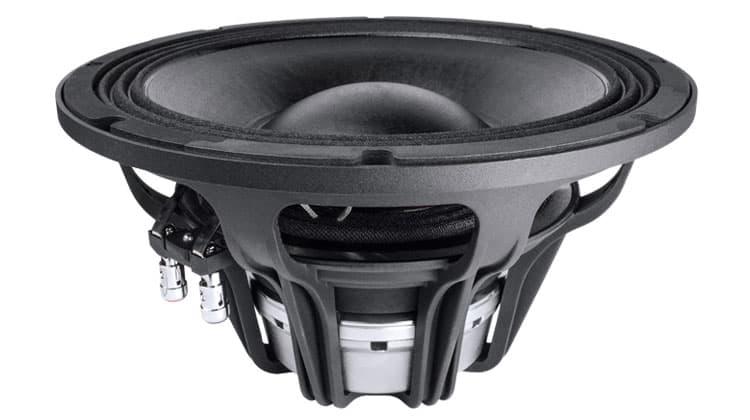

FaitalPRO 12XL1200
FaitalPRO 12XL1200 is a 12" 8 ohm LF driver rated at 1400W RMS. The validated T/S data includes Fs 50Hz, Qts 0.42, Vas 25L, Xmax 12.4mm, sensitivity 90.6dB, plus 645cm³ Vd and 116 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £324.20.
Size
12"
Impedance
8Ω
RMS Power
1400W
Sensitivity
90.6dB
93.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
116
Vented alignment
Vd
645cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees173 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
173 plotted pointsMedium confidence603 selected pixels of 1,111 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,219 selected pixels of 1,219 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,519 selected pixels of 1,519
T/S Parameters
Valid
Fs50Hz
Qts0.42
Qes0.43
Qms14.8
Vas25.0L
Re5.0Ω
Le1.30mH
BL23.6Tm
Sd518cm²
Mms152g
Xmax12.4mm
SPL91dB
Power1400W
Impedance8Ω
F Low50Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£324.20
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.8kg
Diameter316.0mm
Overall Depth168.8mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12XL1200
12"
Best current price
£324.20
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
23% cheaper£250.08
B&C
12BG76
12"
Lower price
Xmax9.5mm-24%
Qts0.41-2%
BL22.7Tm-4%
Vas32L+28%
Qes0.44+2%
67%
Similarity
17% cheaper£269.89
FaitalPRO
12RS1066
12"
Lower price
Xmax12.4mm0%
Qts0.33-21%
BL24.8Tm+5%
Vas31.5L+26%
Qes0.34-21%
60%
Similarity
PRV Audio
12W2000
12"
Xmax10.3mm-18%
Qts0.37-12%
BL22.6Tm-4%
Vas38.7L+55%
Qes0.38-12%
59%
Similarity
PRV Audio
12W5000-2
12"
Xmax10mm-20%
Qts0.43+2%
BL17Tm-28%
Vas11.8L-53%
Qes0.44+2%
46%
Similarity
PRV Audio
12W5000-4
12"
Xmax10mm-20%
Qts0.51+21%
BL21.6Tm-8%
Vas10.3L-59%
Qes0.52+21%
