LF DriverFTR12 series
Celestion

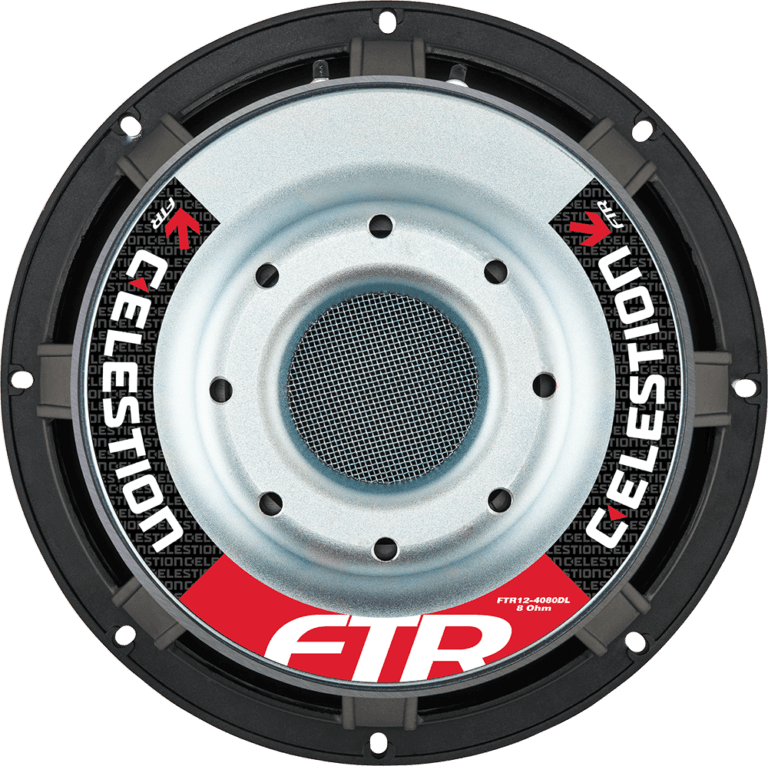

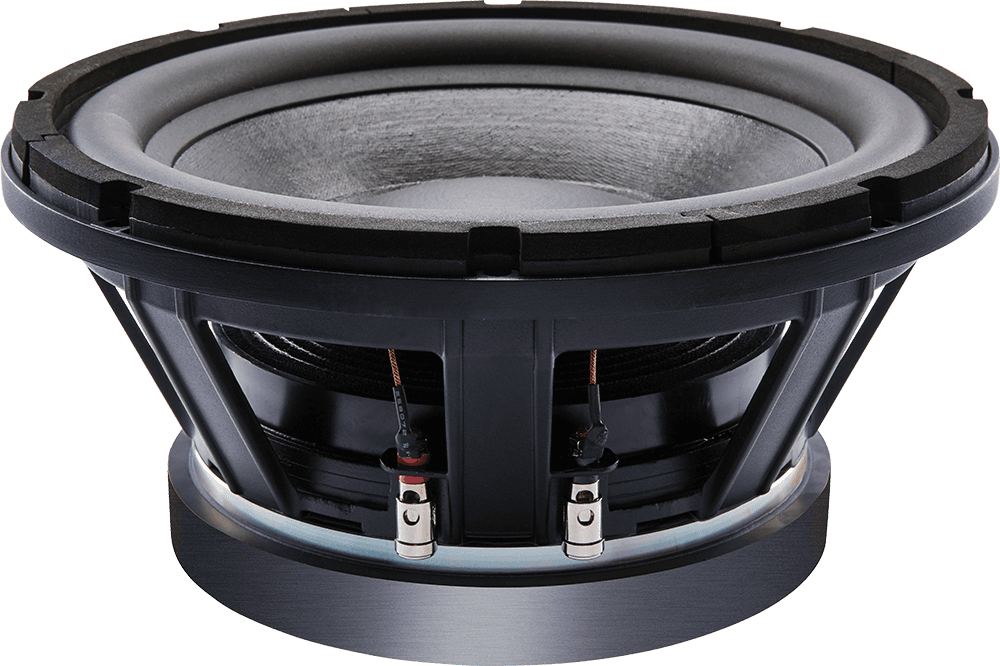

Celestion FTR12-4080DL
Celestion FTR12-4080DL is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 29Hz, Qts 0.30, Vas 68.6L, Xmax 13.6mm, sensitivity 88.8dB, plus 722cm³ Vd and 84 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
88.8dB
EBP
84
Either alignment
Vd
722cm³

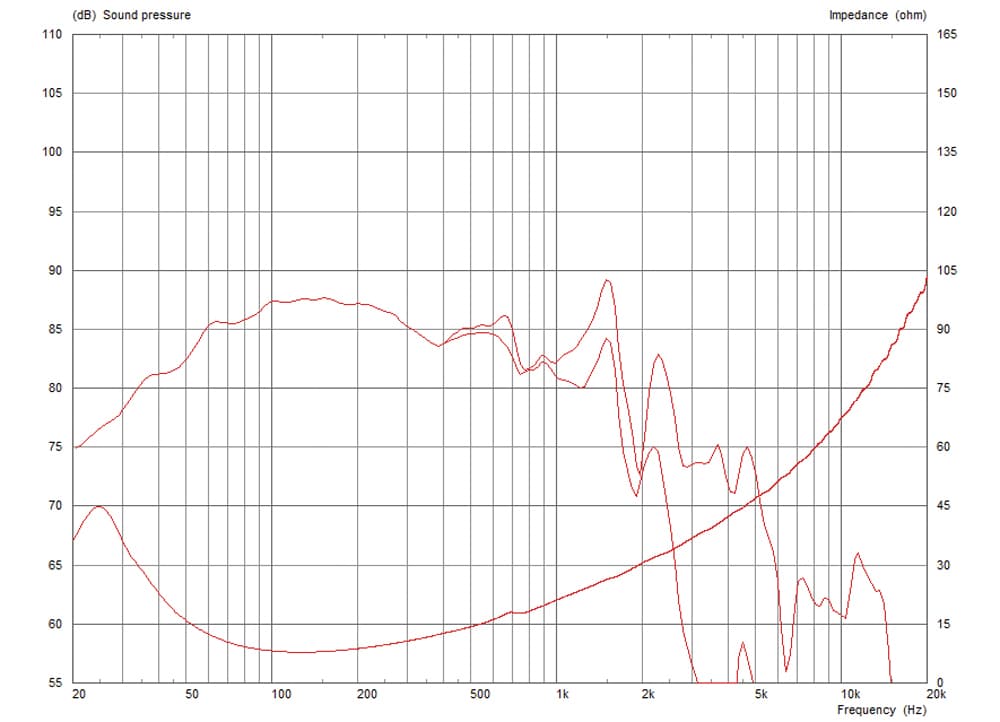

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence229 selected pixels of 401
T/S Parameters
Valid
Fs29Hz
Qts0.30
Qes0.34
Qms2.5
Vas68.6L
Re6.2Ω
Le2.07mH
BL24.1Tm
Sd531cm²
Mms176g
Xmax13.6mm
SPL89dB
Power700W
Impedance8Ω
Voice Coil100mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.2kg
Diameter313.0mm
Overall Depth169.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter301.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
FTR12-4080DL
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity

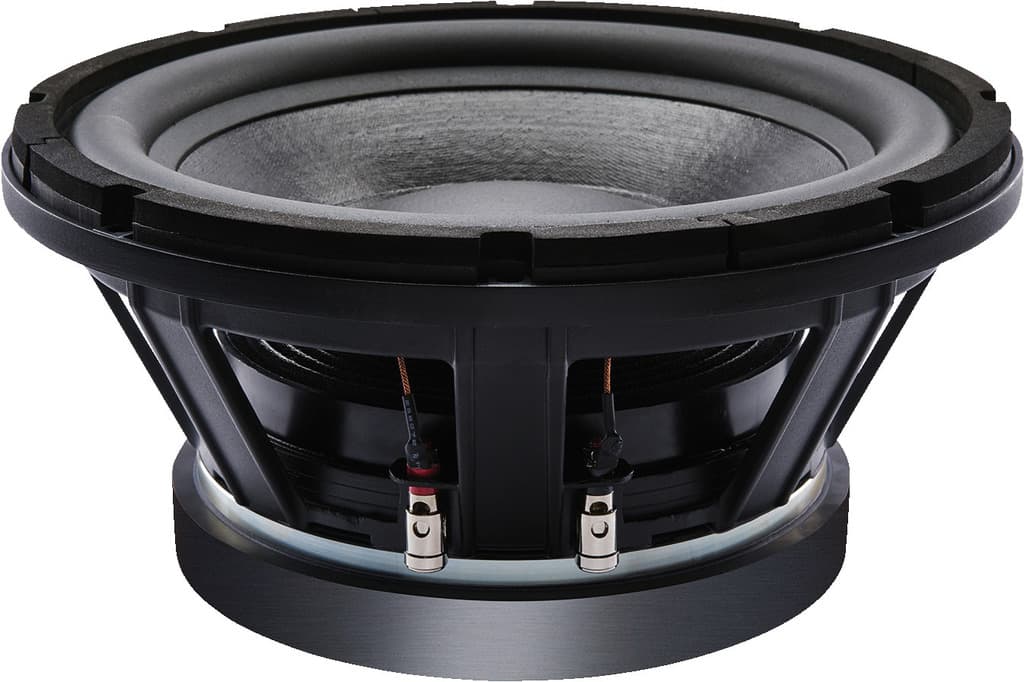

Monacor
FTR12-4080DL/8
12"
Xmax13.6mm0%
Qts0.30%
BL24.1Tm0%
Vas68.6L0%
Qes0.340%
83%
Similarity

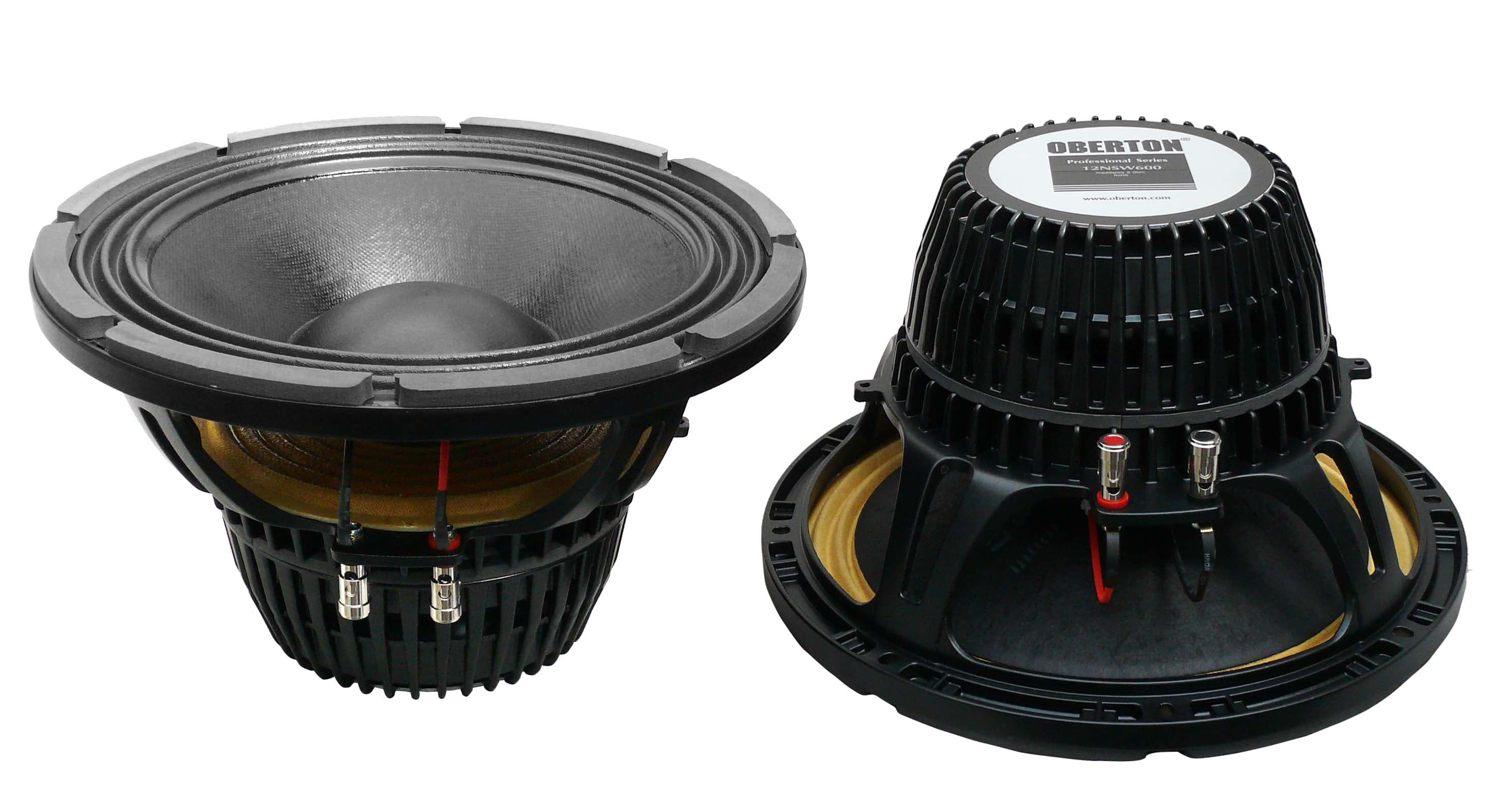

Oberton
12NSW600
12"
Xmax14.3mm+5%
Qts0.32+4%
BL20.2Tm-16%
Vas62.3L-9%
Qes0.33-4%
82%
Similarity
£203.33

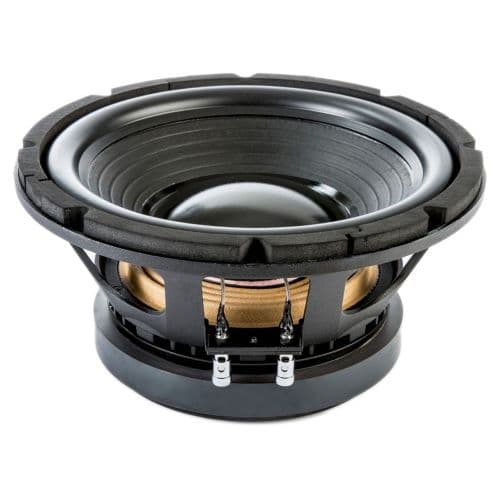

CIARE
12.00SW
12"
Xmax14mm+3%
Qts0.34+12%
BL25.3Tm+5%
Vas59L-14%
Qes0.36+4%
80%
Similarity
£199.00
CIARE
12.00SW
12"
Xmax13.5mm-1%
Qts0.29-4%
BL19.5Tm-19%
Vas55L-20%
Qes0.33-4%
77%
Similarity
Dayton Audio
RSS315HO-4
12"
Xmax12.3mm-10%
Qts0.31+2%
BL20Tm-17%
Vas53.7L-22%
Qes0.33-4%
77%
Similarity
£225.74
FaitalPRO
12HP1030
12"
Xmax12.4mm-8%
Qts0.3-1%
BL24.3Tm+1%
Vas35.9L-48%
Qes0.31-10%
76%
Similarity
CIARE
CSD124-22
12"
Xmax13mm-4%
Qts0.3-1%
BL18.2Tm-24%
Vas54L-21%
Qes0.32-7%
72%
Similarity
£269.89
FaitalPRO
12RS1066
12"
Xmax12.4mm-8%
Qts0.33+9%
BL24.8Tm+3%
Vas31.5L-54%
Qes0.34-1%
72%
Similarity
£214.66
Beyma
12LEX1000FE
12"
Xmax11mm-19%
Qts0.3-1%
BL24.6Tm+2%
Vas38.4L-44%
Qes0.32-7%
69%
Similarity
£260.09
FaitalPRO
12HP1060
12"
Xmax12.4mm-8%
Qts0.28-8%
BL24.8Tm+3%
Vas36.9L-46%
Qes0.29-16%
68%
Similarity
Dayton Audio
RSS315HO-44
12"
Xmax14mm+3%
Qts0.37+22%
BL26.5Tm+10%
Vas61.3L-11%
Qes0.41+19%
68%
Similarity
£281.76

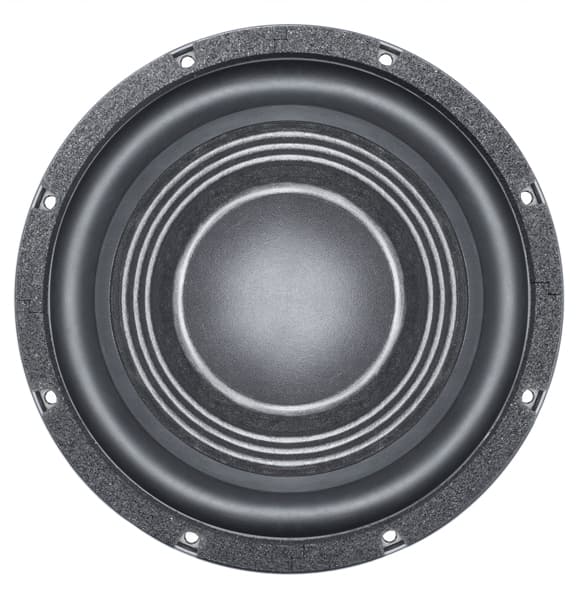

B&C
