LF DriverHP series
FaitalPRO

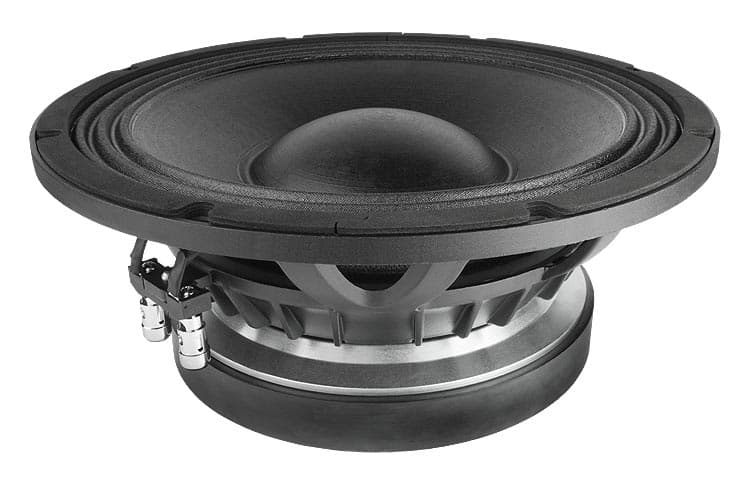

FaitalPRO 12HP1030
FaitalPRO 12HP1030 is a 12" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 45Hz, Qts 0.30, Vas 35.9L, Xmax 12.4mm, sensitivity 92.3dB, plus 645cm³ Vd and 145 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £225.74.
Size
12"
Impedance
8Ω
RMS Power
1000W
Sensitivity
92.3dB
95.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
145
Vented alignment
Vd
645cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees212 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
212 plotted pointsMedium confidence802 selected pixels of 1,186 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,283 selected pixels of 1,283 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,394 selected pixels of 1,394
T/S Parameters
Valid
Fs45Hz
Qts0.30
Qes0.31
Qms13.8
Vas35.9L
Re5.0Ω
Le1.35mH
BL24.3Tm
Sd518cm²
Mms131g
Xmax12.4mm
SPL92dB
Power1000W
Impedance8Ω
F Low45Hz
F High1600Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£225.74
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.1kg
Diameter316.0mm
Overall Depth147.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
