Name: B&C 12SW115 8 Ohm
Brand: B&C
SKU: 12SW115
Availability: InStock

Media

B&C 12SW115 12 inch 8 ohm loudspeaker driver view 1

B&C 12SW115 12 inch 8 ohm loudspeaker driver view 2

B&C 12SW115 12 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver12SW series

B&C

B&C 12SW115

B&C 12SW115 is a 12" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 38Hz, Qts 0.25, Vas 34L, Xmax 13.5mm, sensitivity 90.6dB, plus 705cm³ Vd and 146 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £385.00.

Size

12"

Impedance

8Ω

RMS Power

1700W

Sensitivity

90.6dB

92.5dBmanufacturer; using T/S-derived value (1.9dB delta).

EBP

146

Vented alignment

V_d

705cm³

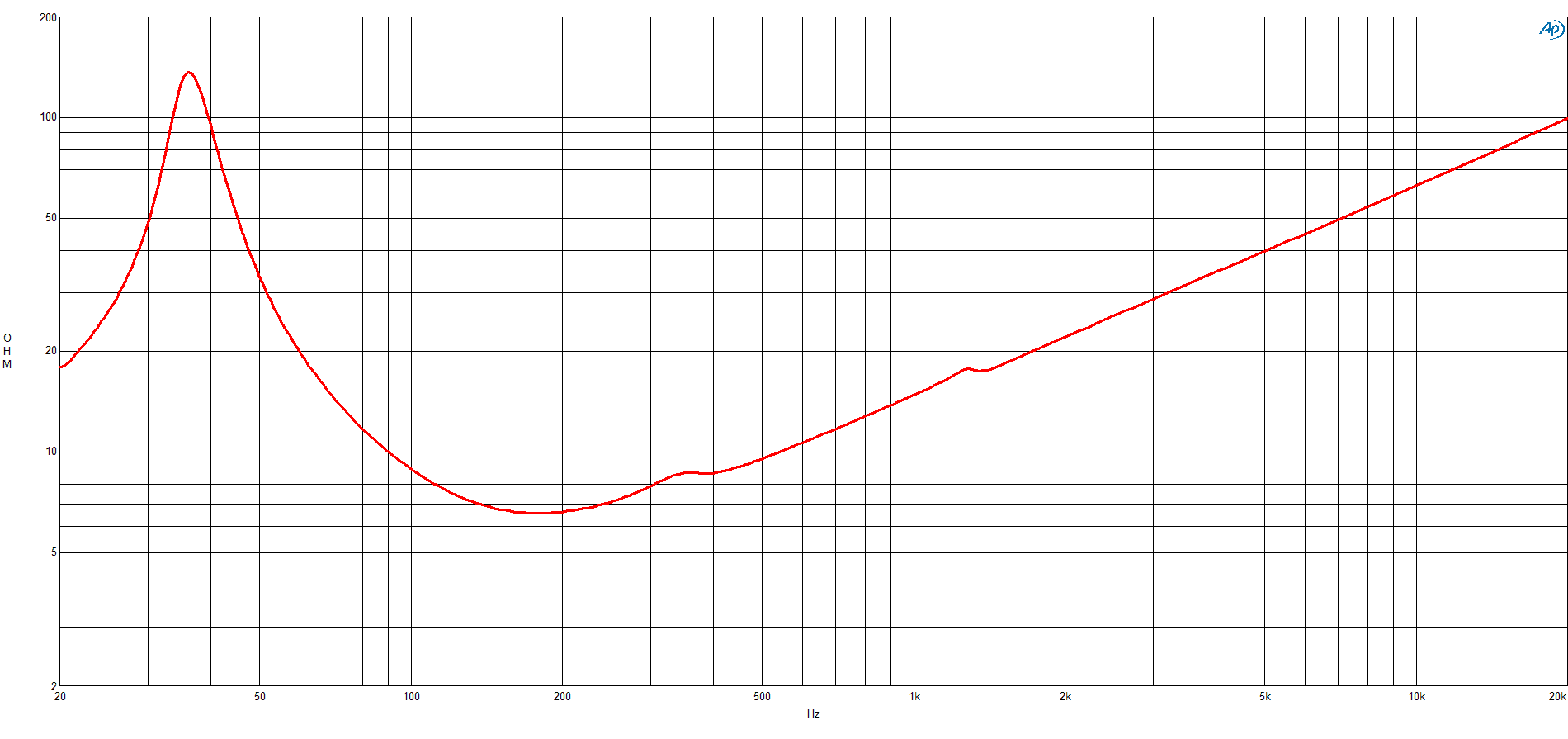

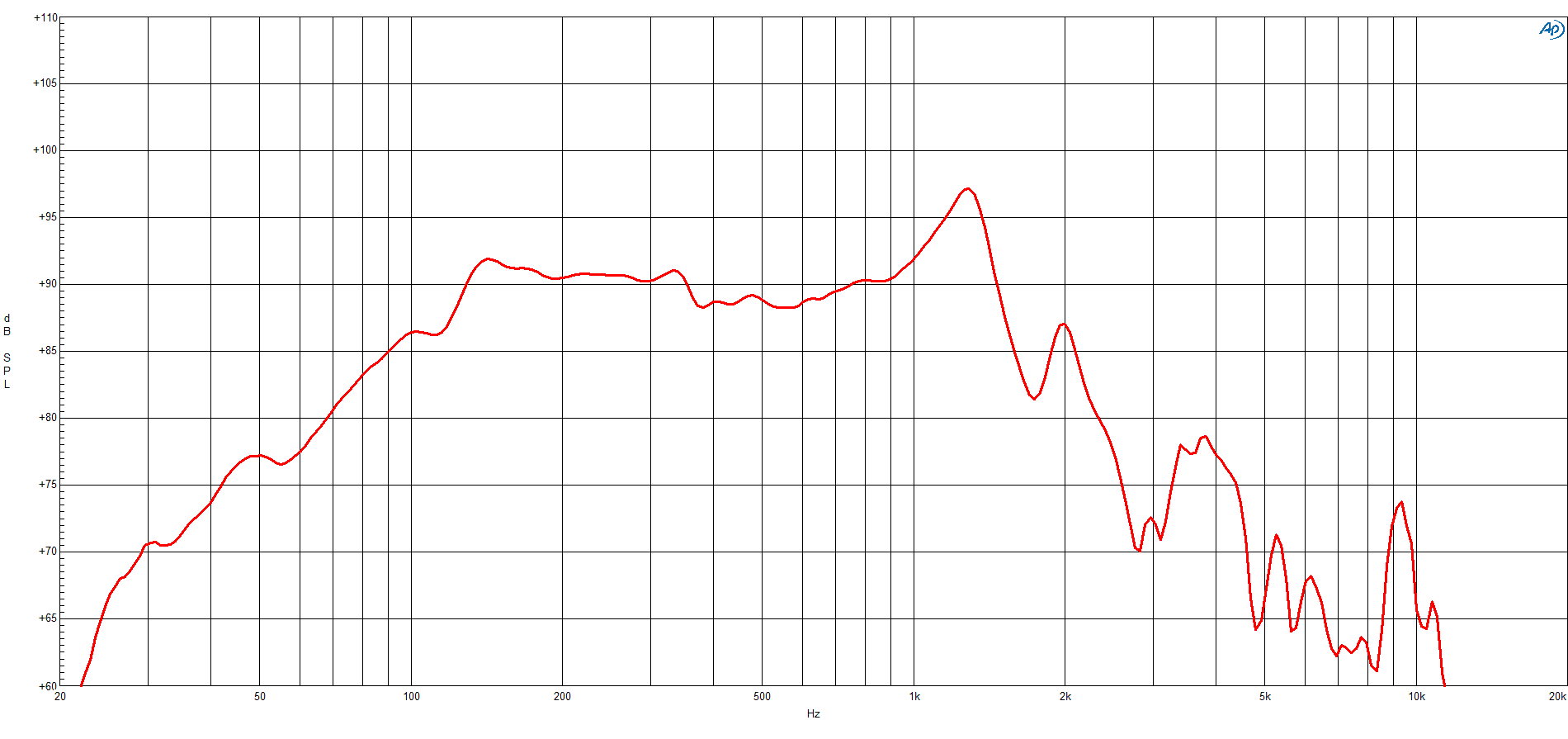

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs38Hz

Qts0.25

Qes0.26

Qms9.3

Vas34.0L

Re5.1Ω

Le1.90mH

BL30.3Tm

Sd522cm²

Mms198g

Xmax13.5mm

SPL91dB

Power1700W

Power Nominal1700W

Impedance8Ω

Min Impedance6.5Ω

F Low40Hz

F High1500Hz

Voice Coil115mm

Flux Density1.12T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£385.00

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight10.4kg

Diameter315.0mm

Overall Depth167.0mm

Cutout Diameter283.0mm

Bolt Circle Diameter298.0mm

Additional Manufacturer Specs

Bl30.3 Tm

Fs38 Hz

Le1.9 mH

Re5.1 Ω

Sd522 cm² (80.91 in²)

Ebp146 Hz

Mms198 g

Qes0.26

Qms9.3

Qts0.25

Vas34 dm³ (1.2 ft³)

η00.7 %

Xmax13.5 mm

Xvar10.9 mm

SpiderDouble Silicone

Cone ShapeRadial

Pole DesignT-Pole

Winding Depth34 mm (1.35 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialNeodymium Inside Slug

Nominal Diameter320 mm (12 in)

Winding MaterialCopper

Magnetic Gap Depth14 mm (0.55 in)

Recommended LoadingVented Box

Bolt Circle Diameter298 mm (11.73 in)

Woofer Cone TreatmentTWP Waterproof Both Sides

Baffle Cutout Diameter283 mm (11.1 in)

Flange And Gasket Thickness12 mm (0.5 in)

Air Volume Occupied By Driver3.4 dm³ (0.12 ft³)
