Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespFaitalPRO 12FX600 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFX series
FaitalPRO

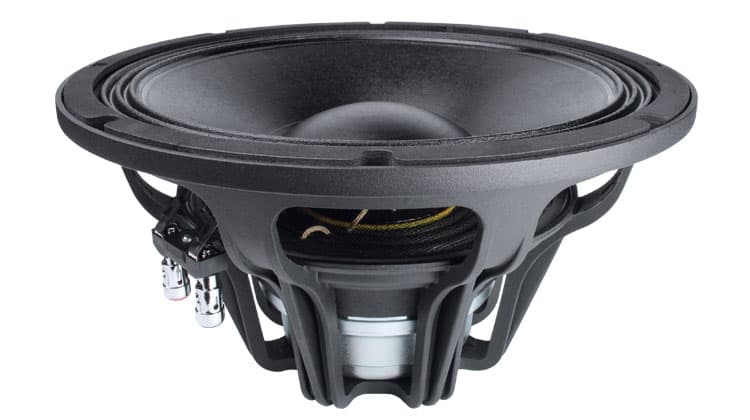

FaitalPRO 12FX600
FaitalPRO 12FX600 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 48Hz, Qts 0.24, Vas 44.4L, Xmax 9.9mm, sensitivity 95dB, plus 533cm³ Vd and 192 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £247.20.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.0dB
97.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
192
Vented alignment
Vd
533cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees228 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
228 plotted pointsMedium confidence794 selected pixels of 1,062 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,240 selected pixels of 1,240 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,528 selected pixels of 1,528
T/S Parameters
Valid
Fs48Hz
Qts0.24
Qes0.25
Qms6.9
Vas44.4L
Re5.3Ω
Le1.34mH
BL25.3Tm
Sd538cm²
Mms100g
Xmax9.9mm
SPL95dB
Power700W
Impedance8Ω
F Low50Hz
F High3150Hz
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£247.20
inc VAT
2 in stock
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£335.04
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
bluearan
£247.20
Avg £247.20£0.00 vs avg (+0.0%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.5kg
Diameter316.0mm
Overall Depth168.8mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
12FX600
12"
Best current price
£247.20
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
53%
Similarity
39% cheaper£151.51
B&C
12FW76
12"
Lower price
Xmax7mm-29%
Qts0.18-25%
BL26.4Tm+4%
Vas45L+1%
Qes0.18-28%
51%
Similarity
32% cheaper£169.00
B&C
12NDL76
12"
Lower price
Xmax7mm-29%
Qts0.27+13%
BL24.7Tm-2%
Vas69L+55%
Qes0.3+20%
50%
Similarity
30% cheaper£174.16
Beyma
12MCB700
12"
Lower price
Xmax7mm-29%
Qts0.27+13%
BL20.4Tm-19%
Vas59.5L+34%
Qes0.29+16%
69%
Similarity
24% cheaper£187.93
RCF
MB12X351
12"
Lower price
Xmax7mm-29%
Qts0.26+8%
BL22.5Tm-11%
Vas46L+4%
Qes0.27+8%
68%
Similarity
21% cheaper£194.77
B&C
12PS100
12"
Lower price
Xmax8mm-19%
Qts0.27+13%
BL22.5Tm-11%
Vas47L+6%
Qes0.29+16%
65%
Similarity
17% cheaper£204.88
B&C
12NDL88
12"
Lower price
Xmax8mm-19%
Qts0.240%
BL16.6Tm-34%
Vas57L+28%
Qes0.250%
84%
Similarity
15% cheaper£209.86
B&C
12TBX100
12"
Lower price
Xmax9mm-9%
Qts0.23-4%
BL22.9Tm-9%
Vas41.1L-7%
Qes0.24-4%
81%
Similarity
15% cheaper£209.86
B&C
12TBX100
12"
Lower price
Xmax9mm-9%
Qts0.26+8%
BL25.5Tm+1%
Vas37.5L-16%
Qes0.27+8%
60%
Similarity
13% cheaper£214.66
Beyma
12LEX1000FE
12"
Lower price
Xmax11mm+11%
Qts0.3+25%
BL24.6Tm-3%
Vas38.4L-14%
Qes0.32+28%
67%
Similarity
12% cheaper£217.96
Beyma
12MC700ND
12"
Lower price
Xmax7mm-29%
Qts0.240%
BL21.6Tm-15%
Vas58L+31%
Qes0.26+4%
60%
Similarity
12% cheaper£218.40
B&C
12NDL88
12"
Lower price
Xmax8mm-19%
Qts0.27+13%
BL19.9Tm-21%
Vas52L+17%
Qes0.29+16%
52%
Similarity
9% cheaper£225.74
FaitalPRO
12HP1030
12"
Lower price
Xmax12.4mm+26%
Qts0.3+25%
BL24.3Tm-4%
Vas35.9L-19%
Qes0.31+24%
